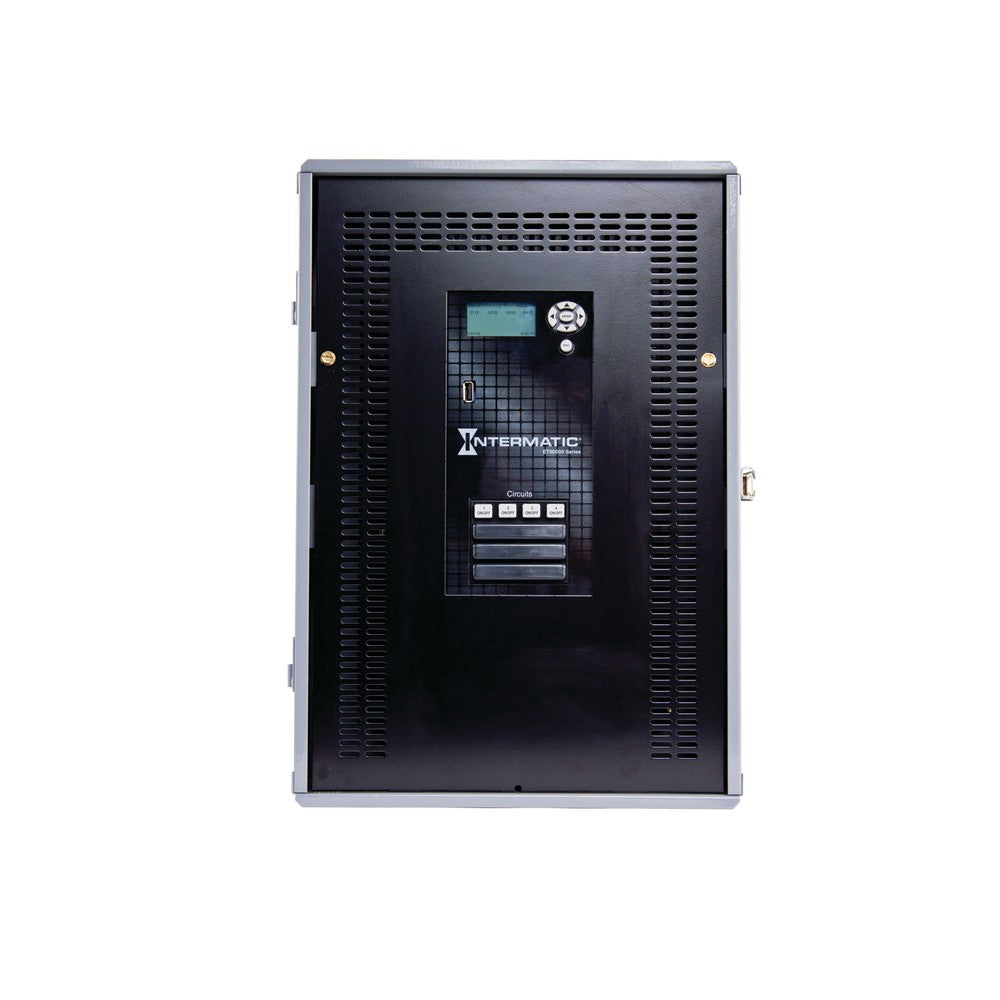

Intermatic 120-277 VAC 50/60 Hz 4-Circuit Outdoor Astronomic Electronic Control ET90415CR

Product Overview

The Intermatic ET90415CR is a 4-circuit astronomic electronic control for scheduled electrical load management in commercial and facility applications. It is specified for 120–277 VAC at 50/60 Hz and is supplied in an outdoor-rated metal enclosure.

Manufacturer listing: "Astronomic 365-Day 4-Circuit Electronic Control, 120-277 VAC, 50/60 Hz, 4-SPDT/2-DPDT, Outdoor Metal Enclosure." UPC: 078275124912.

Key Features

• Astronomic (sunrise/sunset) scheduling for timed control of facility loads
• Wide voltage range: 120–277 VAC; supports 50 Hz and 60 Hz systems
• Four independently controlled circuits
• Outdoor metal enclosure and outdoor location rating
• Unit weight: 20.158 lb; master pack quantity: 1

What this control does

The ET90415CR provides astronomic (sunrise/sunset) based scheduling across four separate circuits to automate lighting and other facility loads.

• Astronomic 365-day scheduling (per manufacturer listing)
• Four independently controlled circuits

Electrical and switching specifications

The unit is specified for a 120–277 VAC input range and supports both 50 Hz and 60 Hz power systems. The manufacturer listing indicates a switch configuration of 4-SPDT and also references 2-DPDT in the original description.

• Voltage: 120–277 VAC
• Frequency: 50/60 Hz
• Switch configuration: 4-SPDT (manufacturer listing also references 2-DPDT)

Enclosure and mounting environment

The ET90415CR is supplied in a metal outdoor enclosure and is listed with an outdoor location rating.

• Enclosure: Outdoor metal enclosure
• Material: Metal
• Location rating: Outdoor

Typical applications

Common uses include astronomic lighting schedules and outdoor lighting automation for commercial buildings, signage, and facility maintenance or replacement projects.

• Astronomic lighting schedules
• Outdoor lighting control for commercial properties and signage
• Facility maintenance and replacement projects

Ordering and verification

Confirm the exact model number and site requirements prior to purchase. Electrical products should be selected and installed by a qualified professional in accordance with local codes and the authority having jurisdiction.

• Model / SKU: ET90415CR
• UPC: 078275124912
• Unit weight: 20.158 lb
• Master pack quantity: 1

Before You Order

Verify the model number, site voltage/frequency, and that a qualified electrician will perform selection and installation per local code.

• Confirm site voltage (120–277 VAC) and frequency (50/60 Hz)
• Confirm required switch configuration matches the product listing
• Use a qualified electrician for installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Intermatic 120-277 VAC 50/60 Hz 4-Circuit Outdoor Astronomic Electronic Control ET90415CR. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
