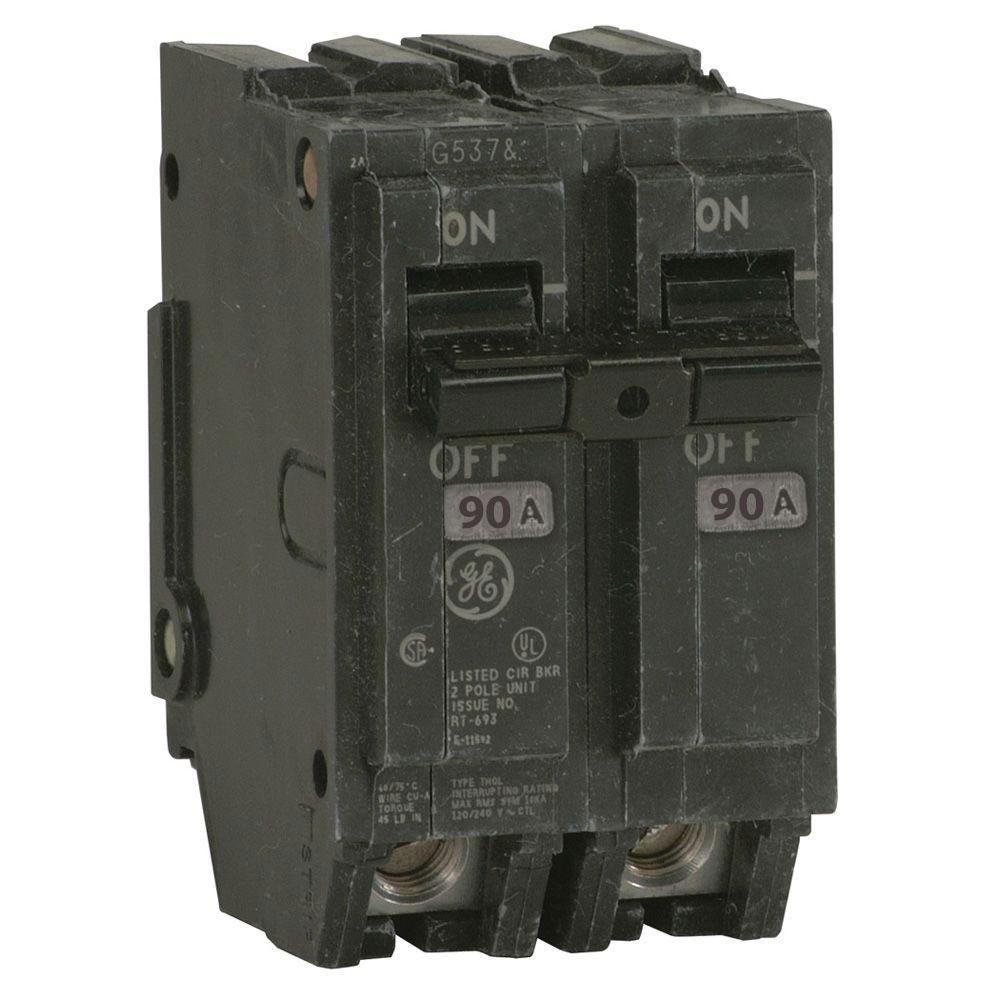

THQL2190 - General Electric 90 Amp 2 Pole 240V Plug-In Circuit Breaker, THQL Series, Thermal Magnetic Trip, 10kAIC, UL Listed

Product Overview

The THQL2190 is a General Electric THQL series 2-pole plug-in circuit breaker rated 90 amps for 240 V systems. It uses a thermal-magnetic trip mechanism and is UL listed with a 10 kAIC interrupting rating.

This SKU is offered as a new General Electric part (THQL2190). Contact Lumera Electric for a quote and to confirm compatibility with your panel.

Key Features

• 90 amp, 2-pole interrupting device for 240 V circuits
• Thermal-magnetic trip for combined overload and short-circuit protection
• Plug-in THQL series form factor for compatible GE/Series panels
• 10 kAIC (10,000 amperes interrupting capacity)
• UL listed

Function and protection

The THQL2190 provides combined overload and short-circuit protection using a thermal-magnetic trip mechanism. The thermal element responds to sustained overloads while the magnetic element provides instantaneous response to high-magnitude short circuits.

• 2-pole design for simultaneous disconnection of both hot legs in 240 V circuits
• Intended for branch-circuit protection where a 90 A ampacity is required

Electrical ratings and interrupting capacity

This breaker is rated for 90 amps and intended for 240 V systems. It has a 10 kAIC interrupting rating, indicating the fault-current level the device is designed to safely interrupt.

• Ampacity: 90 A
• Voltage: 240 V
• Interrupting rating: 10 kAIC (10,000 A)

Compatibility and mounting form factor

The THQL2190 uses the THQL plug-in form factor. It is designed to install into panels that accept GE THQL series plug-in breakers. Confirm panel compatibility and bus type before ordering.

• Plug-in THQL series footprint
• Designed for use in panels that accept GE THQL breakers; verify panel model and bus connection type

Certifications and safety listings

The THQL2190 is UL listed. Use the breaker in applications and installations that conform to applicable electrical codes and the panel manufacturer's installation instructions.

• UL listed

Before you order

Confirm the model number and quantity required before ordering. Ensure the THQL plug-in form factor, 90 A rating, 240 V application, and 10 kAIC interrupting capacity meet your panel and system requirements.

• Verify panel compatibility with GE THQL plug-in breakers
• Confirm required ampacity (90 A) and interrupting rating (10 kAIC) for your site
• Contact Lumera Electric for a quote and to verify pricing and availability

Before You Order

Confirm the THQL2190 is the correct model for your panel and application prior to purchase. Because panel compatibility and site fault-current requirements vary, verify the breaker’s 90 A rating, 240 V use, and 10 kAIC interrupting capacity meet your installation and local code requirements.

• Confirm panel accepts GE THQL plug-in breakers
• Confirm required ampacity (90 A) and interrupting rating (10 kAIC) for your location
• Request a quote from Lumera Electric to confirm pricing and availability

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for THQL2190 - General Electric 90 Amp 2 Pole 240V Plug-In Circuit Breaker, THQL Series, Thermal Magnetic Trip, 10kAIC, UL Listed. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
