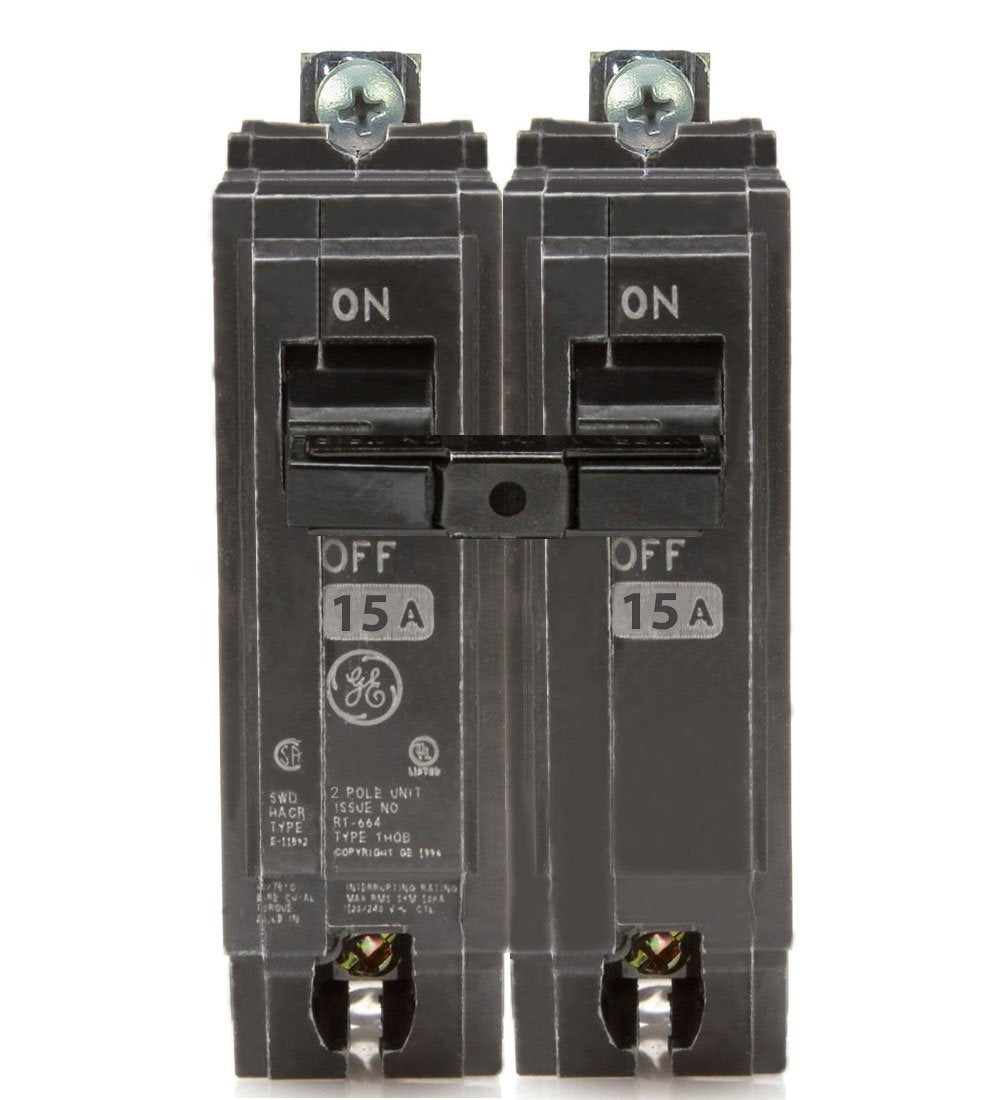

THQB2115 - General Electric 2 Pole 15 Amp 120/240VAC Bolt-On Circuit Breaker, THQB Series, 10kA Interrupt, Thermal Magnetic Trip, CSA/UL Listed

Product Overview

The THQB2115 is a General Electric two‑pole, 15 ampere bolt‑on circuit breaker designed for 120/240VAC branch‑circuit protection. It uses a thermal‑magnetic trip mechanism and carries a 10 kA interrupting rating.

This breaker is intended for use in compatible panelboards that accept THQB series bolt‑on breakers and is CSA and UL listed.

Key Features

• Two‑pole, 15 A rating for 120/240 VAC circuits
• Bolt‑on mounting (THQB series form factor)
• Thermal‑magnetic trip for combined overload and short‑circuit protection
• 10 kA interrupting rating
• CSA and UL listed

Function and protection

The THQB2115 provides combined overload and short‑circuit protection using a thermal‑magnetic trip mechanism. The thermal element responds to prolonged overloads; the magnetic element responds to high‑current faults.

• Protects a 120/240VAC two‑pole branch circuit
• Thermal‑magnetic trip handles both overload and instantaneous fault conditions

Electrical specifications and ratings

Key electrical ratings define where the THQB2115 can be applied and how it will perform under fault conditions.

• Nominal current: 15 A (two poles)
• Voltage rating: 120/240 VAC
• Interrupting rating: 10 kA

Mounting type and panel compatibility

The THQB2115 is a bolt‑on style breaker in the THQB series form factor. Bolt‑on breakers install into panelboards designed for THQB series bolt‑on devices.

• Bolt‑on mounting (THQB series)
• Confirm panelboard compatibility with THQB bolt‑on breakers before installation

Certifications and listings

This breaker is listed to recognized safety standards to help meet code and inspection requirements.

• CSA listed
• UL listed

Before You Order

Confirm the panelboard compatibility and the required quantity before ordering. Verify the THQB bolt‑on form factor matches your panel's mounting style.

• Confirm the exact model number (THQB2115) and that a 2‑pole, 15 A breaker is the correct protection for your circuit
• Verify the panel accepts THQB series bolt‑on breakers
• Request a quote for pricing and availability

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for THQB2115 - General Electric 2 Pole 15 Amp 120/240VAC Bolt-On Circuit Breaker, THQB Series, 10kA Interrupt, Thermal Magnetic Trip, CSA/UL Listed. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
