THHQB2115 - General Electric 15 Amp 2 Pole 120/240V 22kA Bolt-On Circuit Breaker, Q-Line Series, Thermal Magnetic Trip, UL Listed
Description
Product Overview

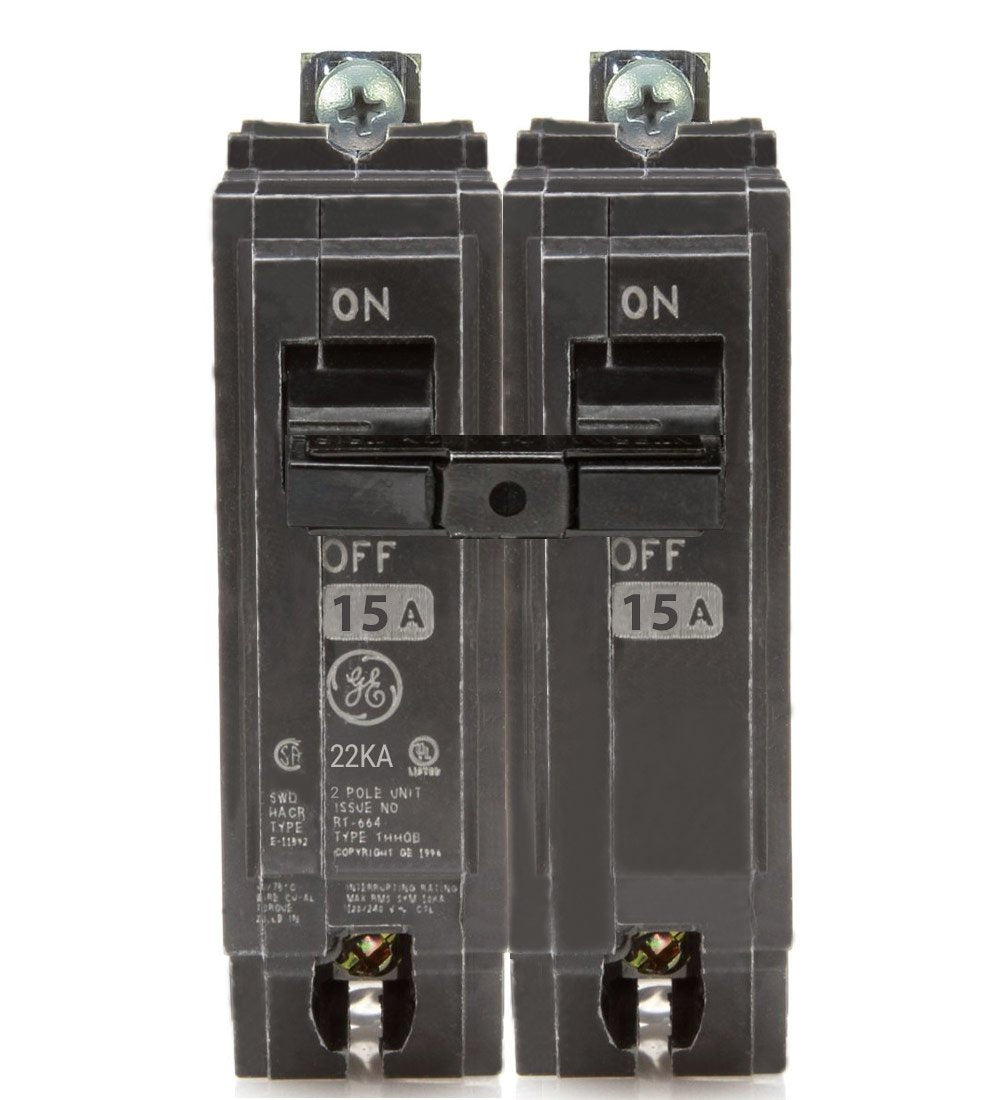

The General Electric THHQB2115 is a Q-Line circuit breaker with a 15-amp rating, two-pole configuration and 120/240V rating.
This model has a bolt-on connection, thermal magnetic trip and a stated 22kA rating. It is UL Listed.
Key Features
- 15 amp, 2-pole circuit breaker
- 120/240V rating and 22kA rating
- Bolt-on connection
- Thermal magnetic trip
- Q-Line series; UL Listed
THHQB2115 breaker configuration
The THHQB2115 is a General Electric Q-Line circuit breaker. Its stated configuration is two-pole with a bolt-on connection.
Ratings and trip type
The breaker is rated at 15 amps and 120/240V, with a stated 22kA rating. Its trip type is thermal magnetic, and the product is identified as UL Listed.
Before You Order
Confirm the model number and quantity required before ordering.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for THHQB2115 - General Electric 15 Amp 2 Pole 120/240V 22kA Bolt-On Circuit Breaker, Q-Line Series, Thermal Magnetic Trip, UL Listed. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | General Electric |
|---|---|
| Part Number / SKU | THHQB2115 |
| Series | Q-Line |
| Product Type | Circuit breaker |
| Ampere Rating | 15 A |
| Poles | 2 |
| Rated Voltage | 120/240V |
| Rating | 22kA |
| Connection type | Bolt-on |
| Trip type | Thermal magnetic |
| Certifications | UL Listed |
| Condition | New |
