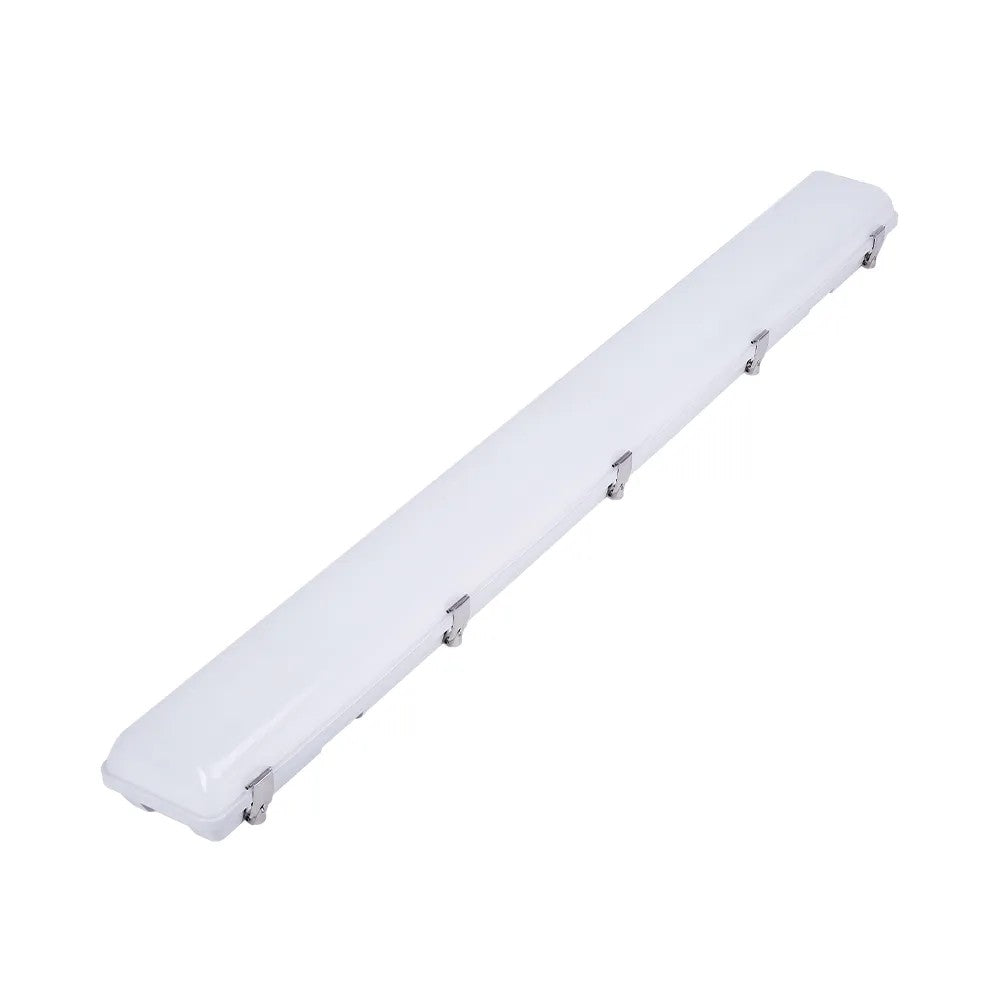

Euri Lighting 4 ft. 25/38/50W selectable LED Linear Strip Light 3500K–5000K (EVT4-50W103sw)

Product Overview

The Euri Lighting EVT4-50W103sw is a 4 ft. LED linear strip light with selectable 25W, 38W or 50W operation and selectable 3500K, 4000K or 5000K color temperature.

It offers lumen outputs of 3,250, 5,000 or 6,500 lumens, 0-10V dimming, and wet-location and IP65 ratings. Applications include offices, retail spaces, corridors, schools and healthcare facilities.

Key Features

• Selectable 25W, 38W or 50W operation and 3,250, 5,000 or 6,500 lumen output
• Selectable 3500K, 4000K or 5000K color temperature
• 0-10V dimming; 120–277V input
• Wet-location rated; IP65 rating
• ETL, DLC and RoHS; 5-year limited warranty

Selectable wattage, lumen output and color temperature

The EVT4-50W103sw offers three selectable wattage settings and three selectable color temperatures. Its lumen outputs are 3,250, 5,000 and 6,500 lumens; the corresponding lumen output for each wattage setting is not specified.

• Wattage: 25W, 38W or 50W
• Lumen output: 3,250, 5,000 or 6,500 lumens
• Color temperature: 3500K, 4000K or 5000K
• CRI: 80; beam angle: 120°

Dimming and electrical details

This strip light operates on 120–277V input and supports 0-10V dimming. Its power factor is 0.9, and input current is 0.17–0.39A.

• Dimming: 0-10V
• Rated life: 50,000 hours

Locations and applications

The fixture is wet-location rated and has an IP65 rating. Applications include offices, conference rooms, retail and showroom spaces, corridors, lobbies, common areas, schools and healthcare facilities. It is also described for covered exterior and damp-interior locations.

Installation considerations

Mounting options include drop-ceiling and surface installations. Confirm the 4 ft. grid or mounting opening before installation. A 0-10V dimming circuit is specified for dimming.

Before You Order

Confirm that the 4 ft. EVT4-50W103sw is the model you need.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Euri Lighting 4 ft. 25/38/50W selectable LED Linear Strip Light 3500K–5000K (EVT4-50W103sw). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
