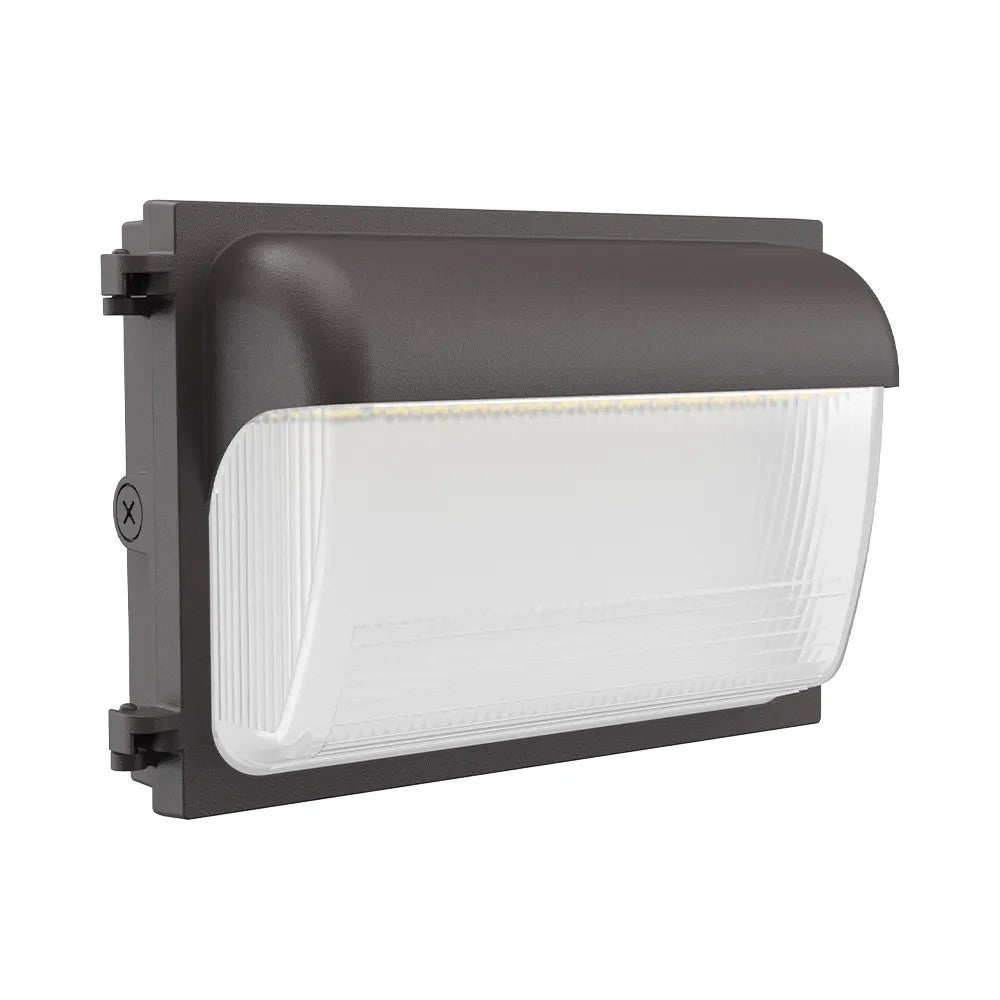

Euri Lighting 30/60/90/120W selectable LED Wall Pack 3000K–5000K (ESWP-120W1033cws)

Product Overview

The Euri ESWP-120W1033cws is a field-selectable LED wall pack for perimeter and site lighting. One fixture allows on-site selection of four wattage levels (30/60/90/120W) and three color temperatures (3000K, 4000K, 5000K).

The unit includes 0–10V dimming, an integrated photocell, IP65 ingress protection, a wet-location rating, UL and DLC 5.1 listings, and an LED rated life of 50,000 hours.

Key Features

• Field-selectable wattage: 30 / 60 / 90 / 120W
• Switch-selectable color temperature: 3000K, 4000K, 5000K
• Lumen range: 3,810–16,353 lm depending on setting
• 0–10V dimming compatible
• Integrated photocell
• Wet-location rated with IP65 ingress protection
• UL and DLC 5.1 listings; 5‑year limited warranty

What this fixture is for

Answer: The ESWP-120W1033cws is suitable for building perimeters, entrances, walkways, loading docks, service areas and security lighting where selectable output or color temperature is useful.

Field-selectable wattage and CCT let a single SKU cover multiple on-site requirements.

• Typical applications: building perimeters, entrances, loading docks, service areas, walkways, security lighting
• Field-selectable options reduce the number of SKUs needed for projects

Performance and output

Answer: Output and efficiency vary by the selected wattage. The fixture provides between 3,810 and 16,353 lumens across its selectable settings and lists efficacy of 133–140 lm/W.

Color temperature options are 3000K, 4000K and 5000K; CRI is specified as 70 and the beam angle is listed as 100°.

• Lumen output (selectable): 3,810–16,353 lm
• Efficacy: 133–140 lm/W
• Color temperature: 3000K / 4000K / 5000K selectable
• Color-rendering index: 70 CRI
• Beam angle: 100°
• Rated life: 50,000 hours

Electrical requirements and controls

Answer: The ESWP-120W1033cws accepts 120–277V and includes 0–10V dimming compatibility plus an integrated photocell for dusk-to-dawn switching.

Power factor is specified as 0.9 and an input current value of 1.1 A is provided in the product information.

• Input voltage: 120–277V
• Dimming: 0–10V
• Photocell: integrated
• Power factor: 0.9
• Input current: 1.1 A (as listed)

Environmental and listing information

Answer: The fixture is rated for wet locations and has IP65 ingress protection.

It is listed with UL and DLC 5.1 and carries a 5‑year limited warranty.

• Location rating: Wet location
• Ingress protection: IP65
• Listings: UL, DLC 5.1
• Warranty: 5‑year limited

Installation and ordering notes

Answer: Confirm site voltage and determine the intended wattage and CCT selections to be set at installation.

If you plan to use external controls, account for the integrated photocell when coordinating control logic.

• Verify site supply: 120–277V
• Plan for integrated photocell when coordinating external controls
• Decide which wattage and CCT selections will be set at installation
• Confirm model ESWP-120W1033cws and required quantity before ordering

Before You Order

Confirm the model ESWP-120W1033cws, the quantity required, and that the site supply is 120–277V.

• Verify 120–277V supply before purchase.
• Plan for the integrated photocell if coordinating with external lighting controls.
• Decide which wattage (30/60/90/120W) and CCT (3000/4000/5000K) will be set at installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Euri Lighting 30/60/90/120W selectable LED Wall Pack 3000K–5000K (ESWP-120W1033cws). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
