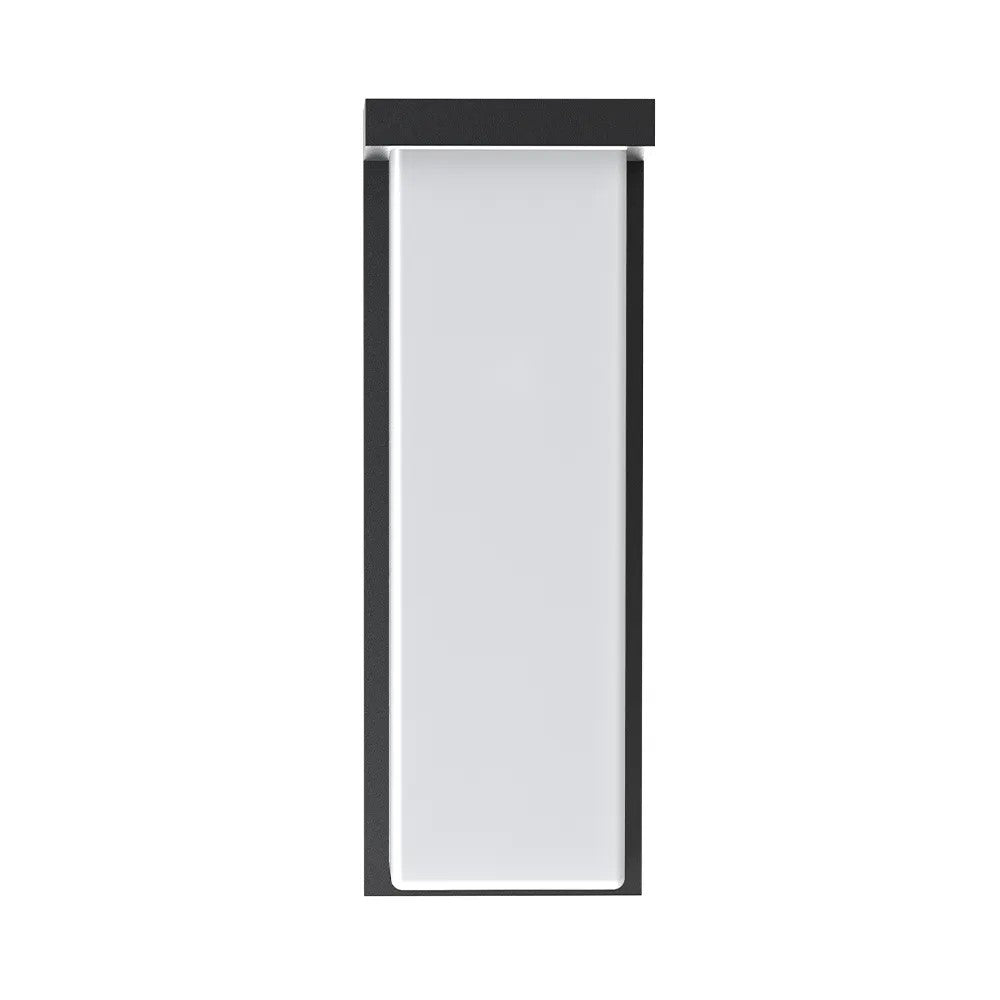

Euri Lighting 18/20/22W selectable Outdoor Wall Light 3000K–5000K (EOL-WL61BK-1100esw)

Product Overview

The EOL-WL61BK-1100esw is an outdoor wall-mounted LED fixture with field-selectable wattage (18/20/22W) and switch-selectable color temperature (3000K/4000K/5000K).

It provides selectable lumen outputs (2160/2400/2640 lm), 80 CRI, IP66 ingress protection and a 50,000-hour LED rated life for exterior wall and entryway applications.

Key Features

• Field-selectable wattage: 18/20/22W set at installation
• Switch-selectable CCT: 3000K, 4000K or 5000K selectable from the fixture
• Selectable lumen output: 2160 / 2400 / 2640 lumens depending on wattage setting
• IP66 rated for dust and water protection; wet-location rated
• Non-dimmable, 80 CRI and listed efficacy value of 120 lm/W
• 50,000-hour LED rated life and 5-year limited warranty
• 120–277V input voltage

What this fixture does

The EOL-WL61BK-1100esw is an outdoor wall-mounted LED sconce intended for exterior walls, entryways and similar applications. A single SKU supports three wattage settings and three color temperatures that are selected on the fixture at install.

• Intended for exterior wall and entryway mounting
• Field-selectable wattage and switch-selectable color temperature reduce SKU variety

Light output and performance

Direct answer: lumen output and power draw are determined by the selected wattage setting; use the selectable settings to match desired brightness and energy use.

• Wattage: 18W / 20W / 22W (field-selectable)
• Lumen output: 2160 lm / 2400 lm / 2640 lm (varies by selected wattage)
• Efficacy: 120 lm/W (listed value)
• Color temperature: 3000K / 4000K / 5000K (switch-selectable)
• CRI: 80

Location, ingress and durability ratings

Direct answer: the fixture carries an IP66 ingress protection rating and is listed for wet locations.

• Location rating: Wet Location Rated
• Ingress protection: IP66
• Lens: frosted plastic lens
• LED rated life: 50,000 hours

Voltage and electrical details

Direct answer: the fixture accepts 120–277V input and is non-dimmable. Confirm supply voltage and circuit protection during installation.

• Input voltage: 120–277V
• Input current: 0.18 A (reference value)
• Dimming: Non-dimmable

Installation and ordering notes

Direct answer: verify mounting method and supply voltage for your site and confirm quantity and model number before ordering.

• Confirm 120–277V supply at the installation location
• Wattage and CCT are set on the fixture at install
• Warranty: 5-year limited warranty

Before You Order

Confirm the model number, mounting method and the site's supply voltage (120–277V) before ordering.

• Verify 120–277V supply at the installation location
• Decide required lumen level and CCT—settings are made on the fixture at install
• Confirm quantity required; each SKU ships as a single fixture

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Euri Lighting 18/20/22W selectable Outdoor Wall Light 3000K–5000K (EOL-WL61BK-1100esw). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
