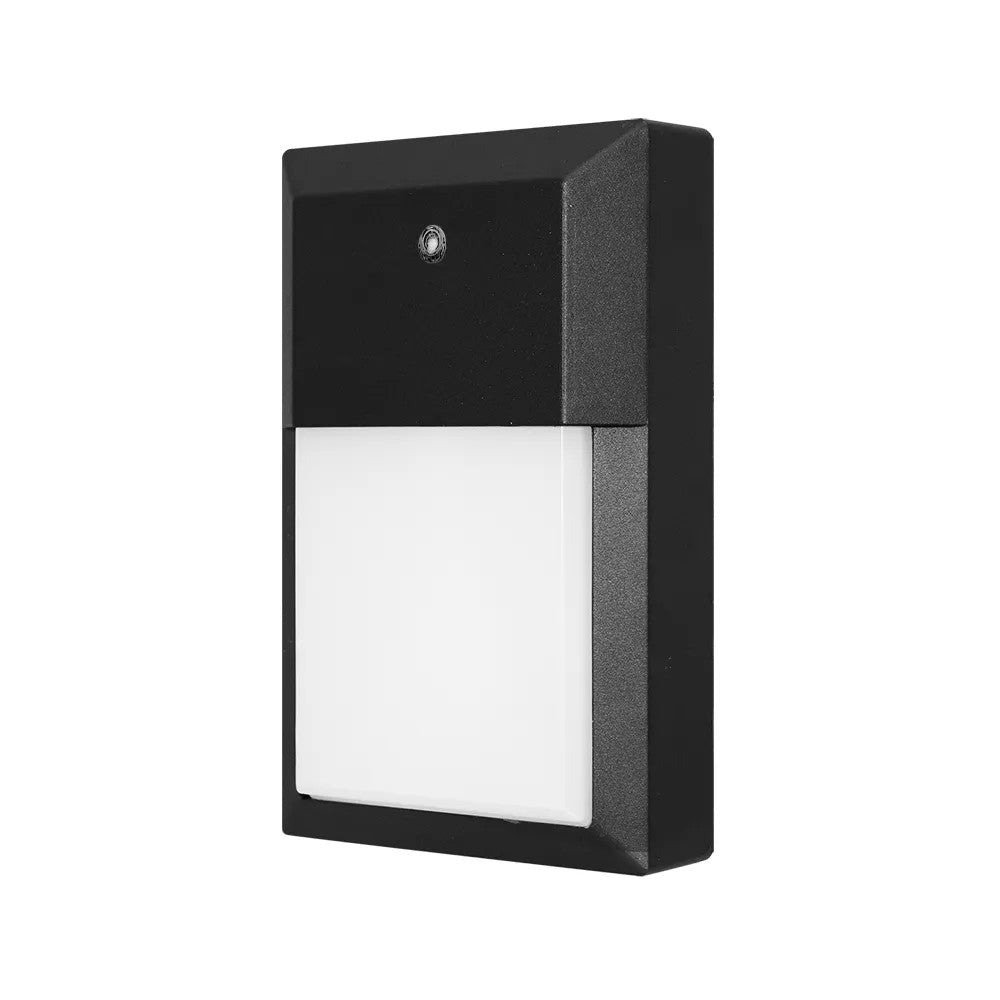

Euri Lighting 16W LED Mini Wall Pack 2700K–5000K Black (EOL-WL02BK-3100e)

Product Overview

Compact outdoor LED wall pack by Euri Lighting delivering 16W and 1,200 lumens in a black finish.

Five-position selectable CCT (2700K, 3000K, 3500K, 4000K, 5000K), integrated photocell for dusk‑to‑dawn operation, >0.95 power factor and a 50,000‑hour rated life. cETL/ETL and FCC listed; wet‑location rated.

Key Features

• 16W power consumption with 1,200 lm output
• Switch-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Integrated photocell for automatic dusk-to-dawn switching
• Wet-location rated for covered exterior and damp interior mounting
• >0.95 power factor, 80 CRI, 50,000‑hour rated life
• Black finish; certifications: cETL, ETL, FCC

What this fixture does

The Euri EOL‑WL02BK‑3100e is a compact LED mini wall pack designed for perimeter, entrance and security illumination. It provides area and pathway light output while minimizing energy use compared with traditional HID fixtures.

• Suitable for building perimeters, entrances, loading docks, walkways and general security lighting
• Compact form factor for retrofit and new‑build exterior applications

Light output and electrical performance

This model produces 1,200 lumens from a 16W integrated LED engine and is rated at 80 CRI. The fixture offers five selectable color temperatures to match adjacent lighting or designer preferences.

• Wattage: 16W
• Lumen output: 1,200 lm
• Color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K (switch‑selectable)
• CRI: 80
• Power factor: >0.95
• Rated life: 50,000 hours

Controls, photocell and supply requirements

The fixture includes an integrated photocell for automatic dusk‑to‑dawn switching. Confirm the presence of the internal photocell if you plan to add external controls or tie the fixture into a separate lighting control system.

• Integrated photocell enables automatic on/off based on ambient light
• Supply voltage: 120V — confirm a compatible 120V supply before installation

Mounting environment and certifications

The EOL‑WL02BK‑3100e is wet‑location rated for covered exterior mounting and can also be used in damp interior locations where a wet‑rating is required. The fixture ships in a black finish and carries cETL, ETL and FCC listings.

• Location rating: Wet Location Rated
• Finish: Black
• Listings: cETL, ETL, FCC

Technical specifications

Use the specifications below for product identification and to verify compatibility with project requirements.

• Brand: Euri Lighting
• Model / SKU: EOL‑WL02BK‑3100e
• Product type: LED Mini Wall Pack
• Voltage: 120V

Before You Order

Confirm the exact model number and the quantity required before ordering. Verify that the installation site provides a 120V supply and that an integrated photocell meets your control requirements.

• Confirm model: EOL‑WL02BK‑3100e
• Confirm supply voltage: 120V
• If external lighting controls or separate photocells are required, account for the fixture's integrated photocell

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Euri Lighting 16W LED Mini Wall Pack 2700K–5000K Black (EOL-WL02BK-3100e). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
