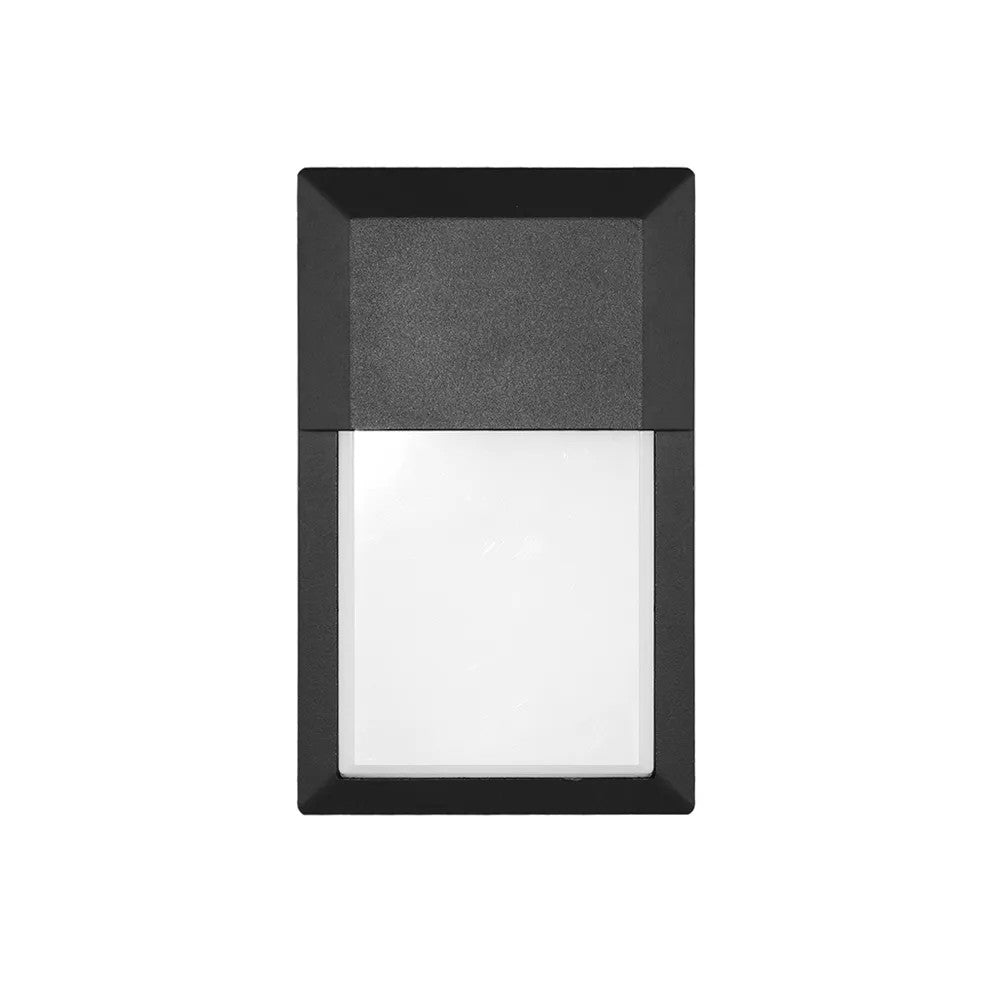

Euri Lighting 16W LED Mini Wall Pack 2700K–5000K Black (EOL-WL01BK-3100e)

Product Overview

Compact 16W LED mini wall pack from Euri Lighting delivering 1,200 lumens with a five-position switch-selectable color temperature (2700K, 3000K, 3500K, 4000K, 5000K).

Wet-location rated fixture in a black finish with >0.95 power factor and 50,000-hour LED rated life; carries cETL, ETL and FCC listings.

Key Features

• 16W power; 1,200 lumens output
• Switch-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Wet-location rated
• 80 CRI and >0.95 power factor
• Rated LED life: 50,000 hours
• Certifications: cETL, ETL, FCC
• Finish: Black

What this fixture does

The Euri EOL-WL01BK-3100e is a compact LED mini wall pack intended for exterior perimeter, entrance and walkway lighting. It provides 1,200 lumens of area illumination for common exterior and transitional interior locations.

• Compact wall pack form factor for perimeter and entrance illumination, walkways, loading areas and similar applications

Light output and quality

This model produces 1,200 lumens with an 80 CRI and a rated LED life of 50,000 hours.

• Lumen output: 1,200 lm
• Color rendering index: 80 CRI
• Rated LED life: 50,000 hours

Color temperature selection

A five-position internal switch allows selection among five correlated color temperatures so installers can set the desired appearance on-site.

• Selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Set CCT prior to final installation

Electrical notes

The fixture is specified for 120V operation and reports a power factor greater than 0.95.

• Operating voltage: 120V
• Power factor: >0.95

Location rating and certifications

The product is listed with cETL and ETL and carries an FCC mark. It is described as wet-location rated.

• Location rating: Wet-location rated
• Certifications/listings: cETL, ETL, FCC
• Finish: Black

Before You Order

Verify the installation location has a 120V supply and appropriate mounting for a mini wall pack.

• Confirm supply voltage: 120V
• Confirm mounting type and that a wet-location rated fixture is acceptable for the intended placement
