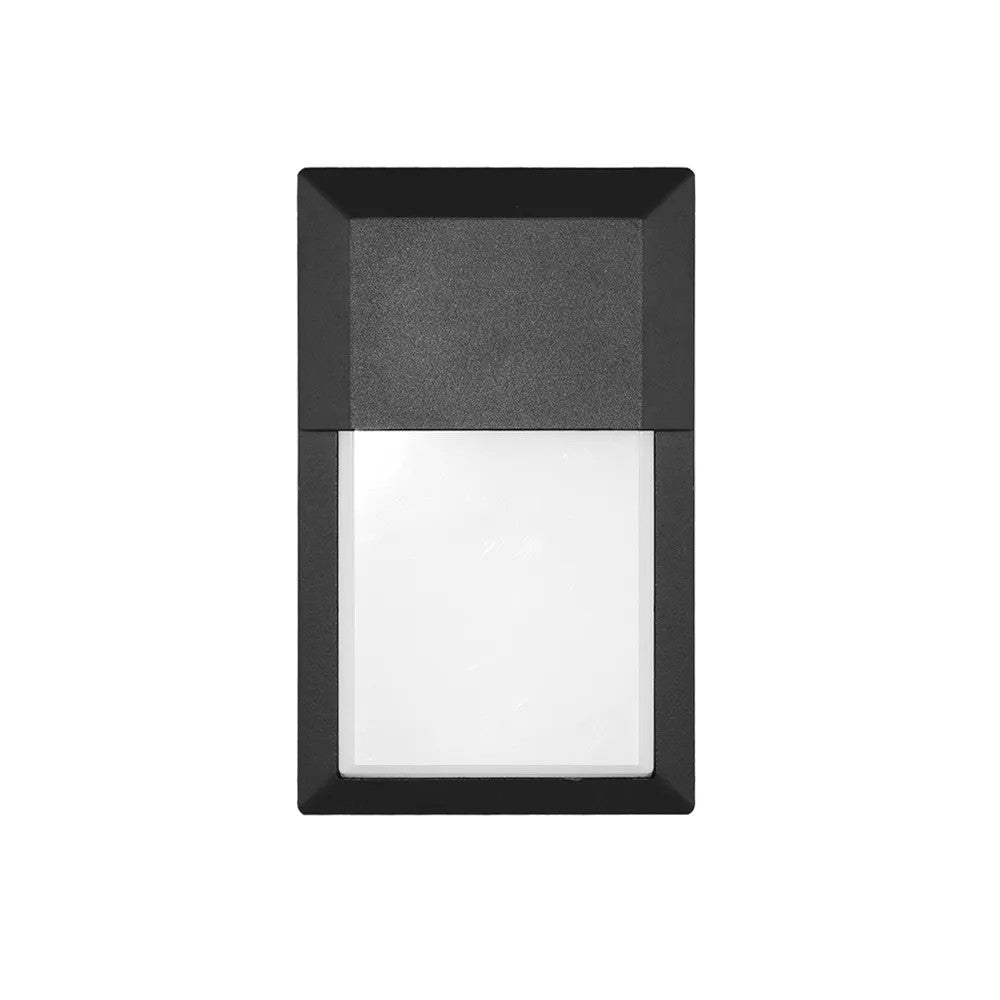

Euri Lighting 15.8W LED Wall Pack 3000K–6500K Matte Black (EOL-WL01BK-2100e)
Description
Product Overview
The Euri Lighting EOL-WL01BK-2100e is a 15.8W LED wall pack producing 1600 lumens. Listed applications include building perimeters, entrances, loading docks, service areas, walkways and security lighting.
The fixture offers five selectable color temperatures from 3000K to 6500K, a 100° beam angle and a frosted plastic lens. It is non-dimmable and wet-location rated.
Key Features
- Five selectable CCT settings: 3000K, 3500K, 4000K, 5000K and 6500K
- 15.8W input and 1600-lumen output
- Matte black die-cast aluminum housing with frosted plastic lens
- Wall mount and direct wiring; 120V supply
- ETL, FCC and ENERGY STAR
Light output and selectable color temperature
The EOL-WL01BK-2100e produces 1600 lumens at 15.8W. Its selectable CCT settings are 3000K, 3500K, 4000K, 5000K and 6500K.
- CRI: 80
- Beam angle: 100°
- Dimming: non-dimmable
- Efficacy: 101 lm/W
Listed applications
Listed applications for this wall pack include building perimeters and entrances, loading docks and service areas, walkways and security lighting.
Mounting and electrical configuration
The fixture is configured for wall mounting and direct wiring, with a listed supply voltage of 120V. Confirm the supply voltage and mounting arrangement for the intended location before installation.
- Input current: 0.155A
- Power factor: 0.9
Housing, location rating and listings
The EOL-WL01BK-2100e has a matte black die-cast aluminum housing and a frosted plastic lens. It is wet-location rated and carries ETL, FCC and ENERGY STAR listings.
- Rated life: 50,000 hours
- Warranty: 3-year limited warranty
Before You Order
Confirm the 120V supply and intended wall-mounting arrangement before installation.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Euri Lighting 15.8W LED Wall Pack 3000K–6500K Matte Black (EOL-WL01BK-2100e). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Euri Lighting |
|---|---|
| Model / SKU | EOL-WL01BK-2100e |
| Product Type | LED wall pack |
| Wattage | 15.8W |
| Voltage | 120V |
| Lumens | 1600 lm |
| Selectable CCT | 3000K, 3500K, 4000K, 5000K or 6500K |
| CRI | 80 |
| Beam Angle | 100° |
| Dimming | Non-dimmable |
| Efficacy | 101 lm/W |
| Power Factor | 0.9 |
| Input Current | 0.155A |
| Rated Life | 50,000 hours |
| Location Rating | Wet-location rated |
| Mounting and wiring | Wall mount; direct wiring |
| Lens | Frosted plastic |
| Housing and finish | Matte black die-cast aluminum |
| Listings | ETL, FCC, ENERGY STAR |
| Warranty | 3-year limited warranty |
