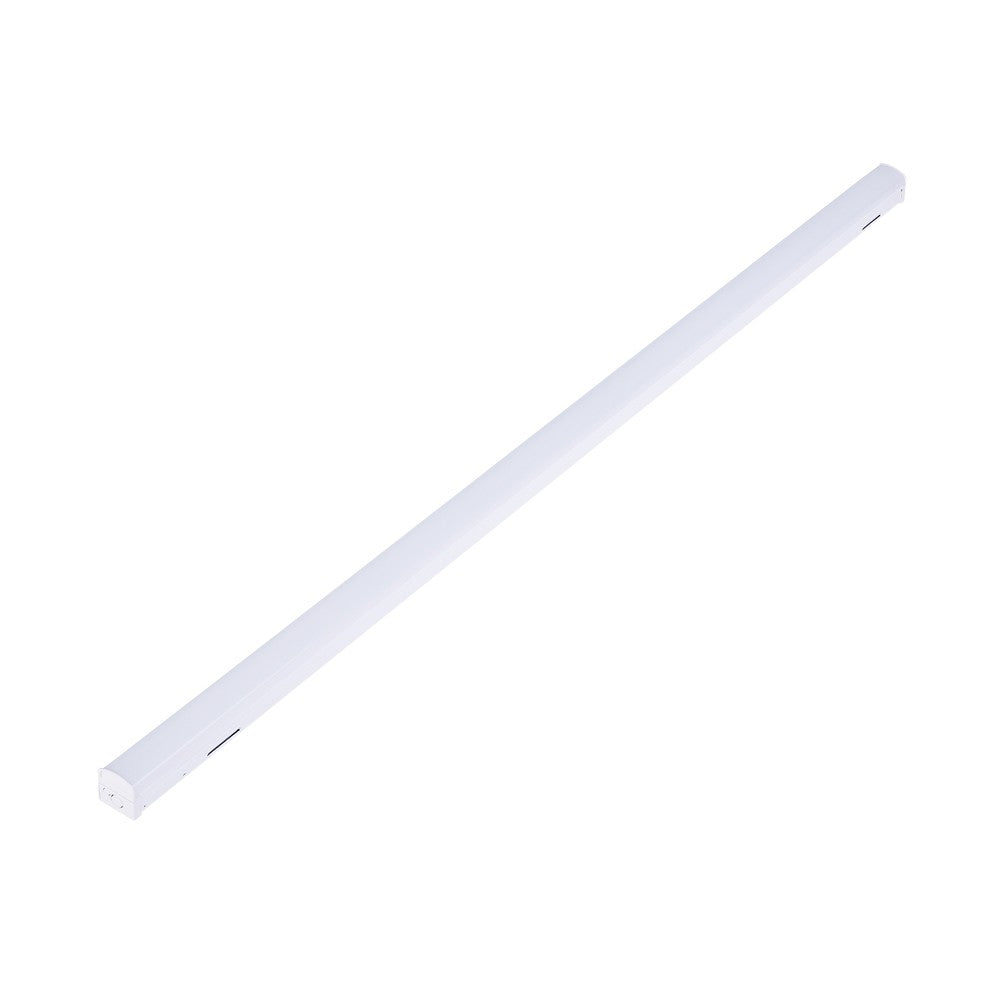

Euri Lighting 8 ft. 60/75/90W selectable LED Linear Strip Light 3500K–5000K (ELS8-90W203sw)

Product Overview

The Euri Lighting ELS8-90W203sw is an 8-foot LED linear strip light with field-selectable wattage (60/75/90W) and selectable color temperatures (3500K, 4000K, 5000K). One SKU supports multiple lumen and CCT combinations.

The fixture offers selectable lumen output (7,800 / 9,750 / 11,790 lm depending on setting), supports 0–10V dimming, is rated for damp locations, carries ETL and DLC listings, and has a 50,000‑hour rated LED life with a 5‑year limited warranty.

Key Features

• Field-selectable wattage: 60W, 75W, or 90W
• Field-selectable CCT: 3500K, 4000K, or 5000K
• Selectable lumen outputs: 7,800 / 9,750 / 11,790 lm (varies by wattage setting)
• 0–10V dimming compatible
• Damp location rated; ETL, DLC, and RoHS listed
• 50,000‑hour rated LED life and 5‑year limited warranty

What this fixture does

The Euri ELS8-90W203sw provides linear general illumination for commercial and industrial interiors. Field switches allow selecting wattage and correlated color temperature on site so a single SKU can serve multiple installation scenarios.

• Single SKU supports multiple lumen and CCT combinations via field-selectable settings
• Intended for linear layouts in drop ceilings or surface-mounted runs

Light output and electrical

Lumen output changes with the chosen wattage setting. The product listing includes efficacy and basic electrical characteristics for comparison.

• Selectable wattage: 60W, 75W, 90W
• Selectable lumen output: 7,800 lm / 9,750 lm / 11,790 lm
• Efficacy: 130 lm/W
• Input current (listed): 0.83 A
• Power factor: 0.9
• Voltage: 120–277V

Dimming and CCT selection

The fixture supports standard 0–10V dimming. Color temperature is selected using the on‑board switch to choose 3500K, 4000K, or 5000K.

• 0–10V dimming compatible
• Field-selectable CCT: 3500K / 4000K / 5000K

Recommended applications

This LED linear strip is intended for general illumination in commercial spaces and other indoor areas where damp-location rating is appropriate.

• Offices and conference rooms
• Retail and showroom spaces
• Corridors, lobbies, and common areas
• Schools and healthcare facilities
• Drop-ceiling and surface installations

Listings, rated life, and warranty

The model is listed to common commercial standards and is specified with a rated LED life and manufacturer warranty.

• Certifications/Listings: ETL, DLC, RoHS
• Location rating: Damp location
• Rated LED life: 50,000 hours
• Warranty: 5‑year limited warranty

Installation and ordering checks

Confirm mounting conditions and control wiring before ordering. Verify the mounting arrangement that accepts an 8 ft. fixture and ensure required supply voltage and any dimming wiring are available.

• Verify an 8 ft. fixture mounting/ceiling opening before purchase
• Ensure 120–277V supply is available
• Provide 0–10V dimming wiring if dimming functionality is desired

Before You Order

Verify mounting and electrical requirements for your project before ordering.

• Confirm the 8 ft. mounting or ceiling opening
• Confirm required CCT and wattage settings (set in the field on each unit)
• Ensure a compatible 120–277V supply and 0–10V wiring if dimming will be used

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Euri Lighting 8 ft. 60/75/90W selectable LED Linear Strip Light 3500K–5000K (ELS8-90W203sw). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
