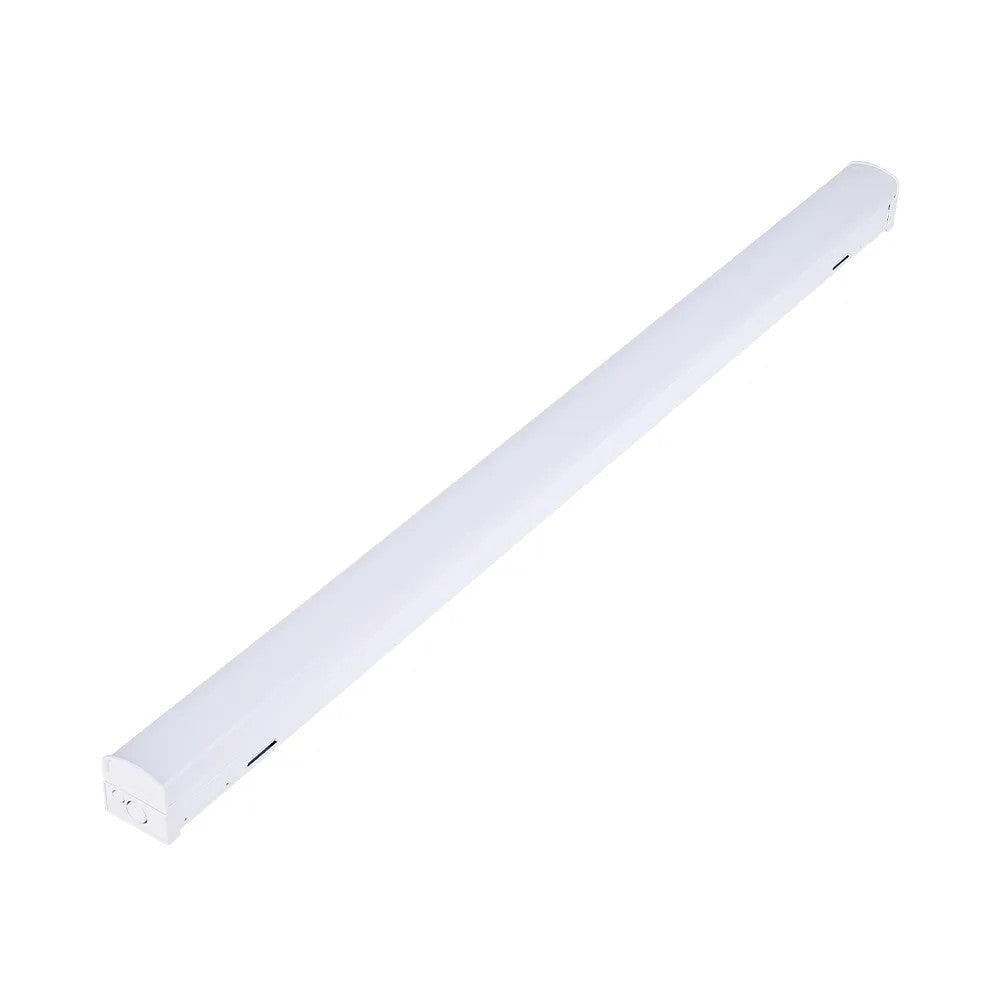

Euri Lighting 4 ft. 25/35/45W selectable LED Linear Strip Light 3500K–5000K (ELS4-45W203sw)
Euri Lighting 4 ft. 25/35/45W selectable LED Linear Strip Light 3500K–5000K (ELS4-45W203sw)
Regular price
$54.33
Regular price
Sale price
$54.33
SKU:ELS4-45W203sw
Quantity
Couldn't load pickup availability
The ELS4-45W203sw from Euri Lighting is a led linear strip light that provides 3250/4550/5850 lm selectable output, 25/35/45W selectable in commercial and industrial spaces. It combines 3500/4000/5000K selectable color temperature, 0-10v dimming, damp location rating. The luminaire installs in new construction, tenant build-outs, and lighting retrofits.
Key Features
- Field-selectable wattage (25/35/45W) sets output and load at install without changing the fixture
- Switch-selectable color temperature lets one unit cover 3 CCT settings, cutting SKUs carried on the truck
- 0-10V dimming integrates with standard commercial dimming controls
- 50,000-hour LED rated life lowers relamping and maintenance frequency
Technical Specifications
| Brand | Euri Lighting |
|---|---|
| Model / SKU | ELS4-45W203sw |
| Product Type | LED Linear Strip Light |
| Size | 4 ft. |
| Wattage | 25/35/45W selectable |
| Voltage | 120-277V |
| Lumen Output | 3250/4550/5850 lm (output varies by setting) |
| Color Temperature (CCT) | 3500/4000/5000K selectable |
| CRI | 80 CRI |
| Beam Angle | 120° |
| Dimming | 0-10V dimming |
| Efficacy | 130 lm/W |
| Power Factor | 0.9 |
| Input Current | 0.17-0.39A |
| Rated Life | 50000 hours |
| Location Rating | Damp Location Rated |
| Certifications & Listings | UL, DLC 5.1, RoHS |
| Warranty | 5-Year Limited Warranty |
Applications
Common applications include:
- offices and conference rooms
- retail and showroom spaces
- corridors, lobbies, and common areas
- schools and healthcare facilities
- drop-ceiling and surface installations
Compatibility and Installation Notes
Before installation, confirm the 4 ft. grid or mounting opening; supply a 0-10V dimming circuit.
Lumera Electric stocks the Euri ELS4-45W203sw for office, retail, and institutional lighting projects.
