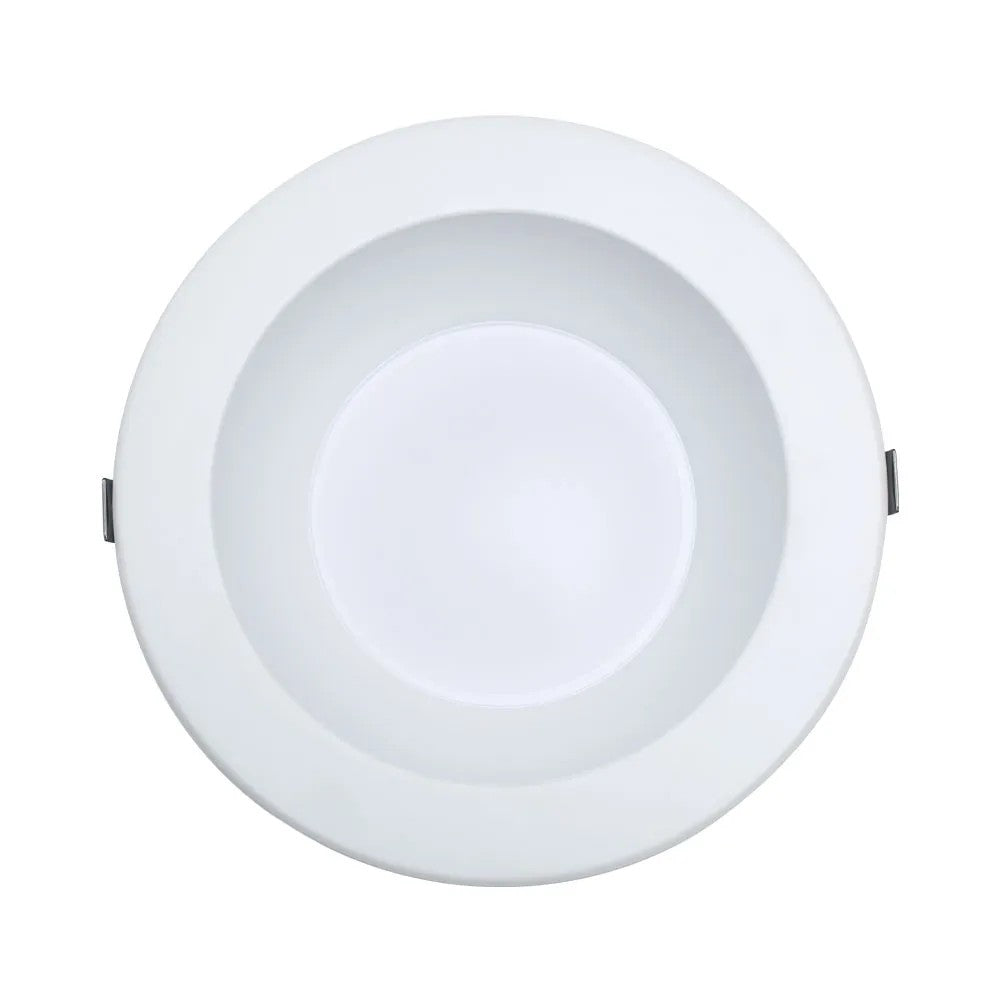

Euri Lighting 6" 7/10/16W selectable LED Commercial Downlight 2700K–5000K (DLC6C-16W203swej)

Product Overview

The Euri DLC6C-16W203swej is a 6" recessed LED downlight with field-selectable wattage (7/10/16W) and five switch-selectable color temperatures (2700/3000/3500/4000/5000K).

It supports 0-10V dimming, is IC-rated for contact with insulation, wet-location listed, and carries UL, ENERGY STAR, and JA8 / Title 24 listings.

Key Features

• Field-selectable wattage: 7W, 10W, or 16W set at installation
• Five switch-selectable CCT settings: 2700K, 3000K, 3500K, 4000K, 5000K
• 0-10V dimming compatible with 0-10V control systems
• IC-rated and wet-location listed
• 90+ CRI
• Rated life: 50,000 hours
• 3-year limited warranty
• Listings: UL, ENERGY STAR, JA8 / Title 24

What this fixture does

The Euri DLC6C-16W203swej is a 6" recessed downlight intended for general and accent lighting in residential and commercial ceilings. It fits new-construction and remodel installations and is wet-location listed for covered exterior and damp interior locations.

• Field-selectable wattage provides three output choices from a single SKU
• Switch-selectable CCT enables on-site matching to adjacent luminaires

Light output and color options

Output and color are set at the fixture: choose 7W, 10W, or 16W, and one of five CCT settings (2700K, 3000K, 3500K, 4000K, 5000K). Lumen output varies by wattage setting.

• Lumen outputs: 700 lm (7W), 1000 lm (10W), 1500 lm (16W)
• Color rendering: 90+ CRI
• Beam angle: 90°

Dimming and control compatibility

The fixture integrates with dimming systems via a 0-10V control interface. Provide a compatible 0-10V control for dimming.

• 0-10V dimming

Installation and mounting considerations

Confirm a 6" ceiling cutout for retrofit or new-construction housings. The fixture is IC-rated for direct contact with insulation and is wet-location listed for covered exterior and damp interior use.

• Fits new-construction and remodel ceilings
• IC-rated
• Wet-location listed

Specifications and listings

Key electrical and compliance details are listed for project specifications and code considerations.

• Input voltage: 120–277V
• Efficacy: 100 lm/W (nominal)
• Power factor: 0.9
• Input current: 0.15A
• Rated life: 50,000 hours
• Listings: UL, ENERGY STAR, JA8 / Title 24
• Warranty: 3-year limited warranty

Before You Order

Verify the 6" ceiling cutout and that a 0-10V control is available if dimming is required.

• Confirm desired lumen level by selecting the appropriate wattage at installation (7/10/16W).
