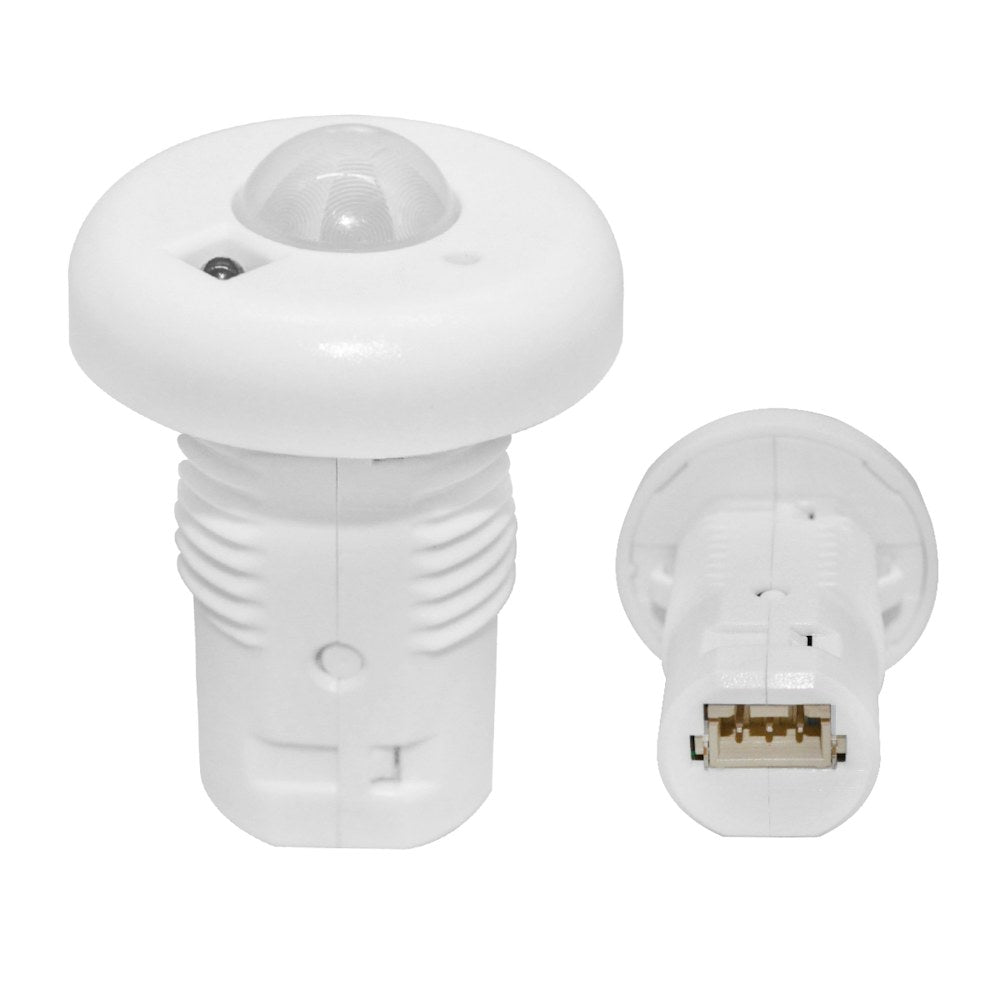

EnVision S-SN-PIR-SL – Snap-In SILVAIR

Product Overview

The EnVision S-SN-PIR-SL is a factory snap‑on SILVAIR sensor module that combines PIR occupancy detection and a daylight sensor for compatible 10–14 V DC fixtures.

It uses Bluetooth Low Energy (BLE) mesh for commissioning via the SILVAIR mobile app or desktop site and is UL listed with a 5‑year limited warranty.

Key Features

• Combined PIR occupancy and daylight sensor in a snap‑on module
• Bluetooth Low Energy (BLE) mesh for commissioning and networked control
• Input: 10–14 V DC; current draw: 50 mA; power <1 W
• 360° detection pattern; maximum recommended mounting height 12 ft
• IP20 (damp location) rating; white finish; UL Listed; DLC NLC listed

Function

The S-SN-PIR-SL integrates passive infrared (PIR) occupancy detection with a daylight sensor to provide bi‑level motion control and daylight‑based dimming for compatible luminaires. The PIR element detects warm objects and is intended for indoor environments with clear lines of sight.

• PIR occupancy: presence sensing suitable for indoor areas
• Daylight sensor: adjusts fixture output based on ambient light
• Typical applications: troffers, wraps, strips and other linear fixtures

Electrical and power requirements

The sensor is designed for 10–14 V DC fixture power. Nominal current draw is 50 mA, equivalent to under 1 W of power.

• Input voltage: 10–14 V DC
• Current draw: 50 mA
• Power: <1 W

Controls and connectivity

Commissioning and configuration use Bluetooth Low Energy (BLE) mesh through EnVision’s SILVAIR mobile app or desktop site. The system provides real‑time sensor feedback and supports large zone sizes.

• BLE mesh commissioning via SILVAIR app or desktop
• Maximum reported Bluetooth range: 328 ft line of sight (environment dependent; field testing recommended)
• Support for large zones and device grouping as part of the SILVAIR system

Mounting and installation

The S-SN-PIR-SL is a snap‑on sensor intended to be factory prefabricated onto compatible fixtures. It offers 360° detection and has a recommended maximum mounting height of 12 ft.

• Snap‑on mounting: intended for factory installation on fixtures
• 360° detection
• Maximum recommended mounting height: 12 ft

Environment, ratings and certifications

Finished in white, the sensor is rated for damp (indoor) locations with an IP20 rating. It is UL Listed for the U.S. and Canada, carries a DLC NLC listing, has Bluetooth certification, and includes a 5‑year limited warranty.

• IP rating: IP20 (damp location)
• Listings: UL Listed (US & CA); DLC NLC ID NSLVR23CNTRL
• Regulatory: FCC CFR 47, GCC Part 15 Subpart B:2017; Approved for CA Title 24
• Warranty: 5 Year Limited Warranty

Before You Order

Confirm the S-SN-PIR-SL model and that your fixture supplies 10–14 V DC and supports factory snap‑on prefabrication.

• Intended for indoor, damp locations only (IP20) — not for wet or outdoor use.
• Bluetooth range varies with site conditions; perform a site Bluetooth test for large networks.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision S-SN-PIR-SL – Snap-In SILVAIR. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
