EnVision S-SN-PIR-BT – Snap-In ENVISIONLS

(No Ratings)
SKU: S-SN-PIR-BT
Price: $46.20
Free shipping on orders over $1,500

Description

Product Overview

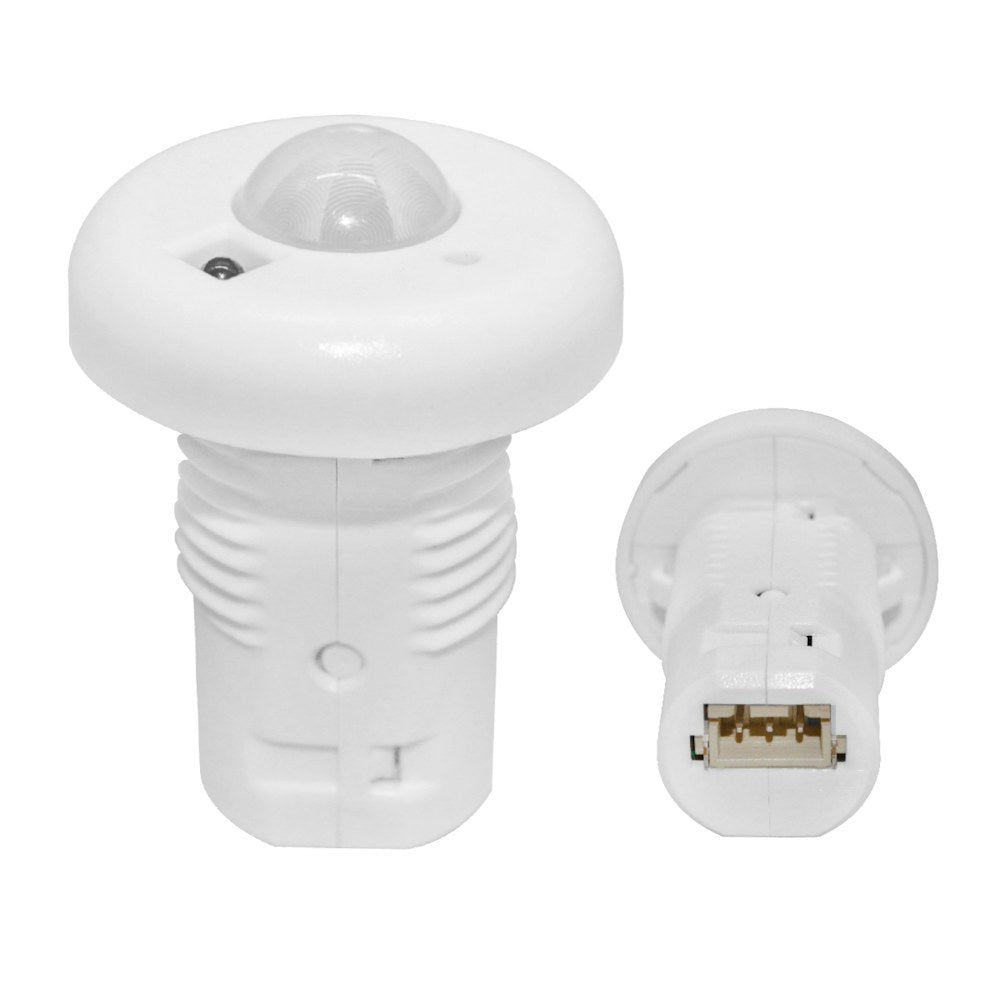

The EnVision S-SN-PIR-BT is a snap-on PIR motion and daylight sensor for EnVision lighting fixtures. It supports individual luminaire control and commissioning through the ENVISIONLS mobile app over a Bluetooth Low Energy mesh network.

Manufacturer-listed fixture applications include troffers, wraps, strips, and other linear fixtures. The sensor is factory-installed onto fixtures.

Key Features

  • PIR motion sensing and daylight sensing for individual luminaire control.
  • Bluetooth Low Energy mesh network with commissioning through the ENVISIONLS mobile app.
  • 360° detection and a maximum mounting height of 12 ft.
  • White finish; IP20 damp-location rating.

Motion and Daylight Sensing

The S-SN-PIR-BT combines a PIR motion sensor and daylight sensor for individual luminaire control. Its PIR sensor provides 360° detection and is intended for indoor environments with a clear line of sight to the area of interest.

The daylight sensor controls fixture power based on sunlight levels. System features include dimming control, parameter profiles, and real-time sensor feedback.

Bluetooth Mesh and App Commissioning

The sensor uses a Bluetooth Low Energy mesh network and can be commissioned through the ENVISIONLS mobile app. The stated maximum Bluetooth range is 328 ft line of sight. Range depends on the surrounding environment, and Bluetooth testing is recommended for an accurate assessment.

Fixture Applications and Factory Mounting

The S-SN-PIR-BT is a snap-on sensor that is factory-installed onto fixtures. Manufacturer-listed applications include troffers, wraps, strips, and other linear fixtures.

Location Rating and Operating Limits

The sensor has an IP20 damp-location rating and an operating temperature range of -4°F to 104°F. Its maximum mounting height is 12 ft.

Before You Order

This sensor is factory-installed onto fixtures; confirm the required fixture configuration before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision S-SN-PIR-BT – Snap-In ENVISIONLS. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
Model / SKUS-SN-PIR-BT
Product TypeSnap-on PIR motion and daylight sensor
Input Voltage10–14V DC, 50mA
Detection360°
Maximum Bluetooth range328 ft line of sight; environment dependent
Operating Temperature-4°F to 104°F
Maximum mounting height12 ft
Location RatingIP20, damp location
FinishWhite
CertificationsUL Listed for USA and CA; DLC NLC Listed, ID NSLVR23CNTRL; approved for CA T24
Warranty5-year limited
UPC810143715965
