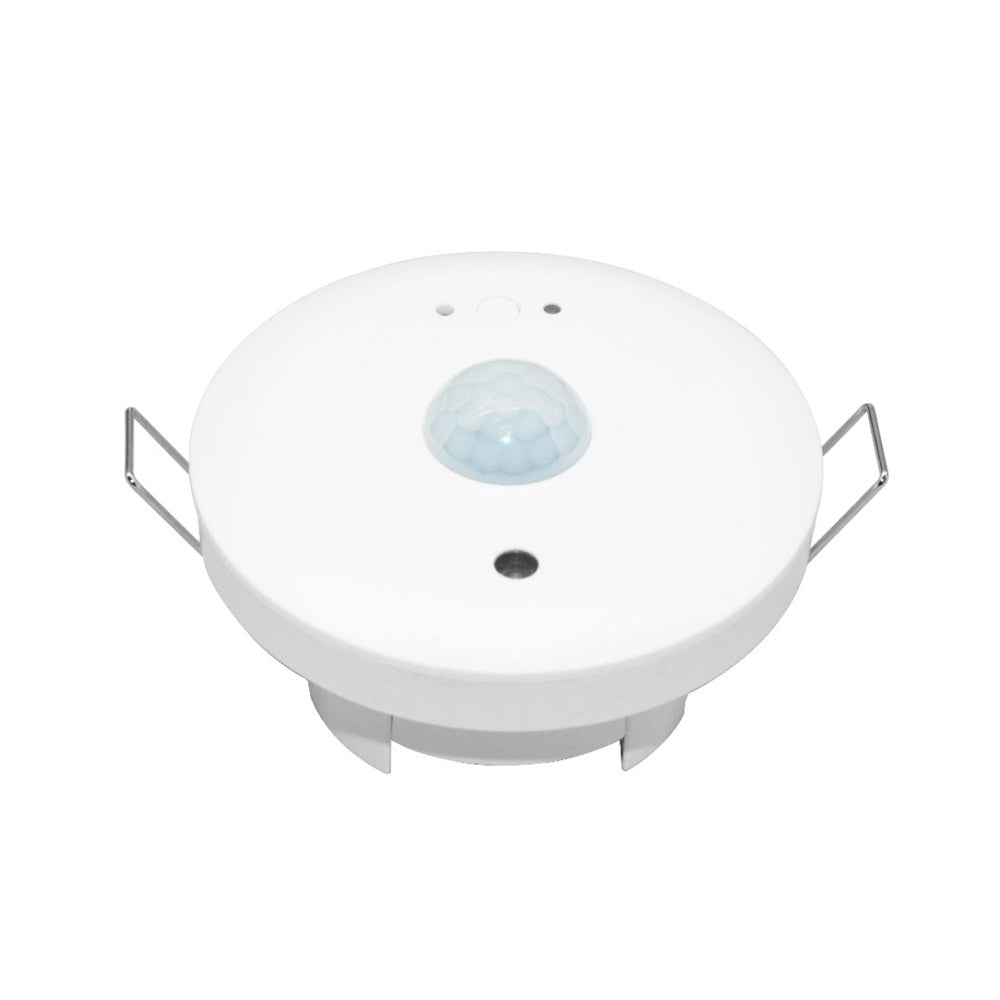

EnVision S-CM-PIR-LV-SL – Ceiling Sensor SILVAIR

(No Ratings)
SKU: S-CM-PIR-LV-SL
Price: $79.80
Free shipping on orders over $1,500

Description

Product Overview

The EnVision S-CM-PIR-LV-SL is a ceiling-mounted SILVAIR sensor for group-level luminaire control. It combines PIR occupancy sensing and daylight sensing and uses a Bluetooth Low Energy (BLE) mesh network.

The sensor is specified for 0-10V dimmable fixtures and has a 12-24V DC input. Commissioning is available through the SILVAIR mobile app or desktop site.

Key Features

  • PIR occupancy and daylight sensing
  • BLE mesh network for group-level luminaire control
  • 360° detection and snap-on ceiling mounting
  • Up to 3,000 devices on a zone
  • UL Listed for the USA and Canada

Occupancy and daylight sensing

The S-CM-PIR-LV-SL combines PIR motion sensing and daylight sensing for luminaire control. Its listed detection is 360°. The manufacturer describes PIR sensing for indoor environments with a clear line of sight to the area of interest.

The daylight sensor controls fixture power based on sunlight levels. The manufacturer notes that the PIR sensor detects warm objects and is suited to areas with high vibration or metal.

BLE mesh and SILVAIR commissioning

The sensor uses a Bluetooth Low Energy mesh network for group-level luminaire control. Commissioning is available through the SILVAIR mobile app or desktop site.

A zone can support up to 3,000 devices. Maximum Bluetooth range is 100 feet line of sight; actual range depends heavily on the surrounding environment, and the manufacturer recommends Bluetooth testing for range accuracy.

  • Features include parameter profiles, dimming control, and real-time sensor feedback.

Input and fixture control

The S-CM-PIR-LV-SL has a 12-24V DC input at 50mA and is specified for 0-10V dimmable fixtures.

Ceiling mounting and detection details

The sensor has a snap-on ceiling mounting design and a maximum mounting height of 12 feet. Its PIR sensing is described for indoor environments with a clear line of sight to the area of interest.

Location rating and certifications

The sensor is rated IP20 for dry locations and has an operating temperature range of -4°F to 104°F. It is UL Listed for the USA and Canada, DLC NLC Listed, and approved for California Title 24.

  • FCC CFR 47, Part 15, Subpart B:2017
  • Five-year limited warranty

Before You Order

Confirm that the intended fixture is a 0-10V dimmable fixture and note that the sensor is rated for dry locations.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision S-CM-PIR-LV-SL – Ceiling Sensor SILVAIR. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
Model / SKUS-CM-PIR-LV-SL
Product TypeCeiling-mounted sensor
ControlOccupancy and daylight sensing; group-level luminaire control
NetworkBluetooth Low Energy (BLE) mesh
Input Voltage12-24V DC, 50mA
Compatible fixture control0-10V dimmable fixtures
Detection360°
Maximum mounting height12 ft
Maximum Bluetooth range100 ft line of sight; range depends on the surrounding environment
Maximum devices per zone3,000
Mounting TypeSnap-on ceiling design
FinishWhite
IP / Environmental RatingIP20, dry location
Operating Temperature-4°F to 104°F
CertificationsUL Listed for USA and Canada; DLC NLC Listed; approved for California Title 24; FCC CFR 47, Part 15, Subpart B:2017
Warranty5-year limited
DLC NLC Listed IDNSLVR23CNTRL
