EnVision S-AUD-PIR-1 – Audio Jack

(No Ratings)
SKU: S-AUD-PIR-1
Price: $35.00
Free shipping on orders over $1,500

Description

Product Overview

The EnVision S-AUD-PIR-1 is a PIR motion and daylight sensor for LED lighting fixtures. It provides individual luminaire control and operates on 10–14V DC.

It connects through a 2.5 mm audio jack with a push-and-twist lock design. The S-LINE-R remote is required for control and commissioning.

Key Features

  • PIR occupancy sensing and daylight sensing.
  • Input: 10–14V DC at 50mA.
  • 2.5 mm audio jack connection with push-and-twist lock design.
  • 360° detection; maximum mounting height: 12 ft.
  • White finish; IP20 damp-location rating.
  • UL Listed for the USA and Canada; approved for California Title 24.

PIR Motion and Daylight Sensing

The S-AUD-PIR-1 combines PIR occupancy sensing and daylight sensing to control individual luminaires. It is described for indoor environments with clear lines of sight; the PIR sensor detects warm objects. The daylight sensor controls fixture power consumption based on sunlight levels.

  • Detection: 360°.
  • Default settings: 100% brightness and sensitivity, 10-minute hold time, 50% bi-level dim, 10-minute standby time, and daylight disabled.

Audio Jack Connection and Required Remote

The sensor connects through a 2.5 mm audio jack using a push-and-twist lock design. It is intended for sensor-ready fixtures or use with 2.5 mm audio jack receptacles. The S-LINE-R remote is required for control and commissioning and can control an unlimited quantity of fixtures.

Mounting Height and Location Rating

The maximum mounting height is 12 ft. The sensor has an IP20 rating for damp locations.

  • Operating temperature: -4°F to 104°F.

Listings and Warranty

The S-AUD-PIR-1 is UL Listed for the USA and Canada and approved for California Title 24. It has a five-year limited warranty.

Before You Order

Confirm that the fixture is sensor-ready or has a 2.5 mm audio jack receptacle, and that the S-LINE-R remote is available for control and commissioning.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision S-AUD-PIR-1 – Audio Jack. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKUS-AUD-PIR-1
Product TypeAudio jack PIR and daylight sensor
Input Voltage10–14V DC
Input Current50mA
Connection2.5 mm audio jack; push-and-twist lock
DetectionPIR motion and daylight sensing; 360° detection
Maximum mounting height12 ft
Operating Temperature-4°F to 104°F
IP RatingIP20, damp location
FinishWhite
RemoteS-LINE-R required for control and commissioning
Listings and approvalUL Listed for USA and Canada; approved for California Title 24
Warranty5-year limited
UPC810143716016

Comments

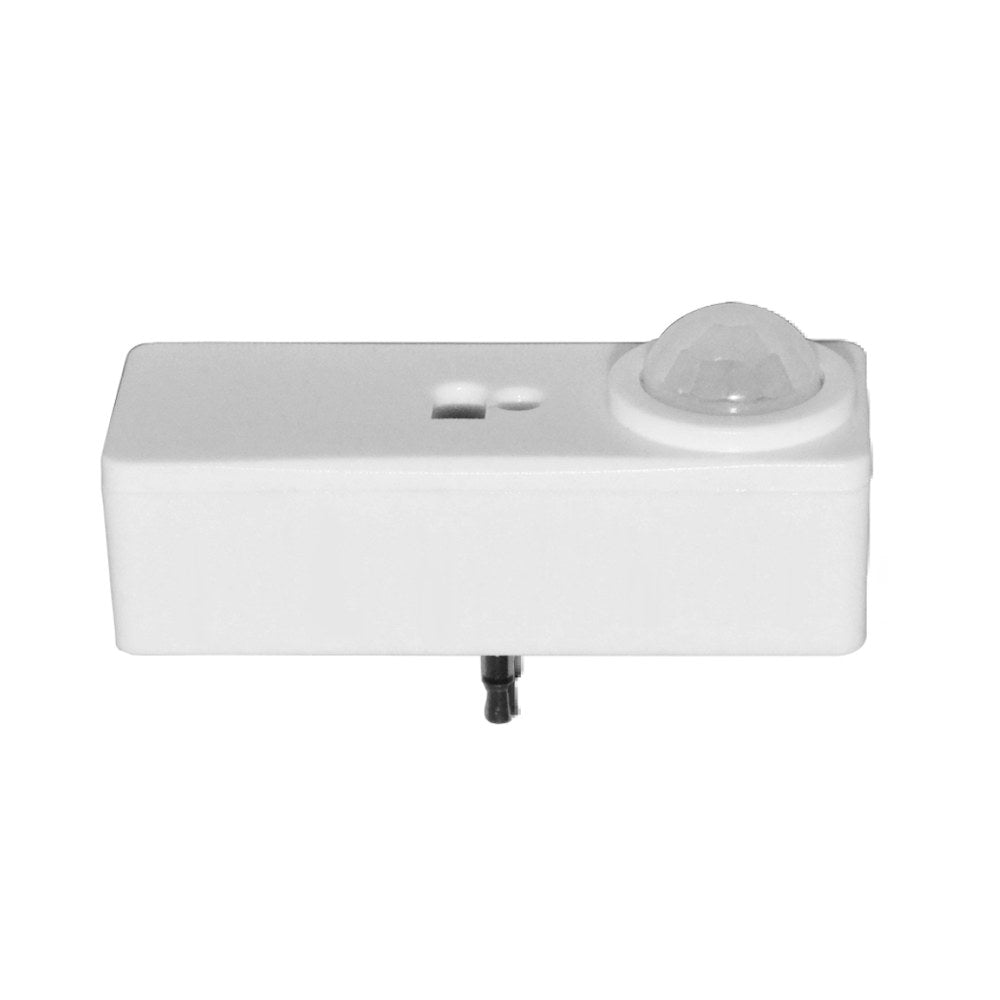

EnVision S-AUD-PIR-1 Lighting Accessory
