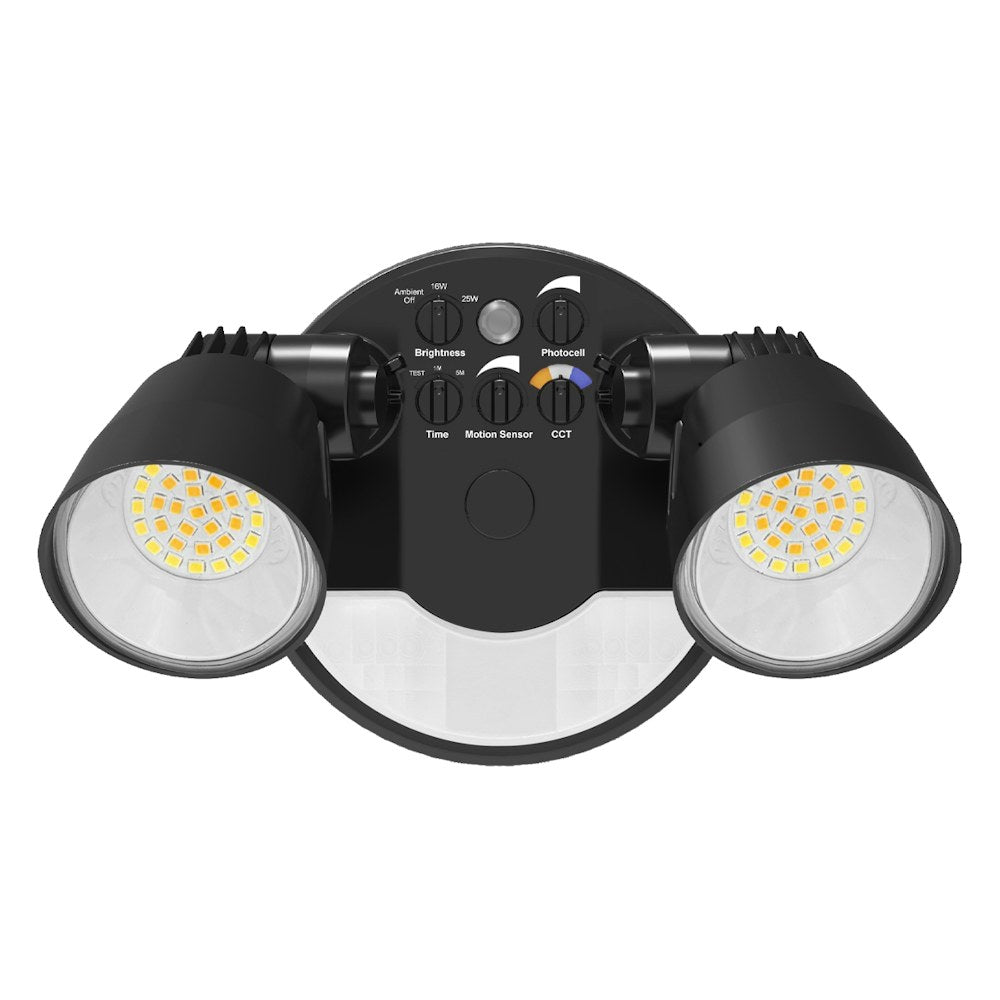

EnVision LED-XSL2R-2P25-TRI-BL-PIR – Security Light - Round Double Head PIR
Description
Product Overview
The EnVision LED-XSL2R-2P25-TRI-BL-PIR is a black, round double-head security flood light with an included PIR motion sensor and photocell. It offers selectable 16W or 25W power and 3000K, 4000K, or 5000K color temperature.
The 16W setting produces 2,080 lumens; the 25W setting produces 3,250 lumens. The fixture is rated IP65 for wet locations and mounts to a junction box.
Key Features
- Selectable 16W or 25W power and 3000K, 4000K, or 5000K CCT
- PIR motion sensor with adjustable sensitivity and 180° detection range
- Photocell with adjustable light-control sensitivity
- Black finish, 120° beam angle, and IP65 wet-location rating
- 120V operation; non-dimmable driver
- ETL Listed with a 5-year limited warranty
Selectable Wattage and Color Temperature
This EnVision security light offers selectable 16W or 25W power and 3000K, 4000K, or 5000K color temperature. The 16W setting produces 2,080 lumens, while the 25W setting produces 3,250 lumens.
- 16W: 2,080 lumens
- 25W: 3,250 lumens
- Selectable CCT: 3000K, 4000K, or 5000K
- Beam angle: 120°
PIR Motion Sensor and Photocell Controls
The included PIR sensor has a 180° detection range and adjustable motion sensitivity. The photocell's light-control sensitivity is adjustable, and the hold time can be set to test mode, 1 minute, or 5 minutes.
The driver is non-dimmable.
- Adjustable motion sensitivity
- Adjustable photocell sensitivity
- Hold-time settings: test, 1 minute, or 5 minutes
Outdoor Security Lighting Applications
EnVision lists this XS-Line security flood light for docks and loading areas, walkways and pathways, parking lots, outdoor corridors, hospitality and multifamily settings, and general outdoor lighting. Listed applications also include residential, commercial, and industrial settings.
Mounting and Electrical Details
The fixture mounts to a junction box and uses a 120V supply. Its driver is non-dimmable.
- Supply voltage: 120V
- Mounting: junction box
- Driver: non-dimmable
Weather Rating, Construction, and Listing
This black-finish fixture is rated IP65 for wet locations. It has a die-cast aluminum housing with a corrosion-free powder-coat finish and is ETL Listed and RoHS compliant.
- Finish: black
- Housing: die-cast aluminum with corrosion-free powder-coat finish
- Wet-location rating: IP65
- ETL Listed and RoHS compliant
- 5-year limited warranty
Before You Order
This SKU is the black-finish version.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-XSL2R-2P25-TRI-BL-PIR – Security Light - Round Double Head PIR. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| Model / SKU | LED-XSL2R-2P25-TRI-BL-PIR |
| Product Type | Security flood light, round double head |
| Wattage | Selectable 16W or 25W |
| Lumens | 2,080 lm at 16W; 3,250 lm at 25W |
| Color Temperature | Selectable 3000K, 4000K, or 5000K |
| Voltage | 120V |
| Dimming | Non-dimmable driver |
| CRI | >80 |
| Beam Angle | 120° |
| Motion detection | 180° range; adjustable sensitivity |
| Hold-time settings | Test, 1 minute, or 5 minutes |
| Photocell | Included; light-control sensitivity adjustable |
| IP Rating | IP65, wet location |
| Finish | Black |
| Housing | Die-cast aluminum with corrosion-free powder-coat finish |
| Mounting Type | Junction box |
| Operating Temperature | -40°F to 122°F |
| Certifications | ETL Listed; RoHS compliant |
| Warranty | 5-year limited warranty |
| UPC | 810143716849 |
