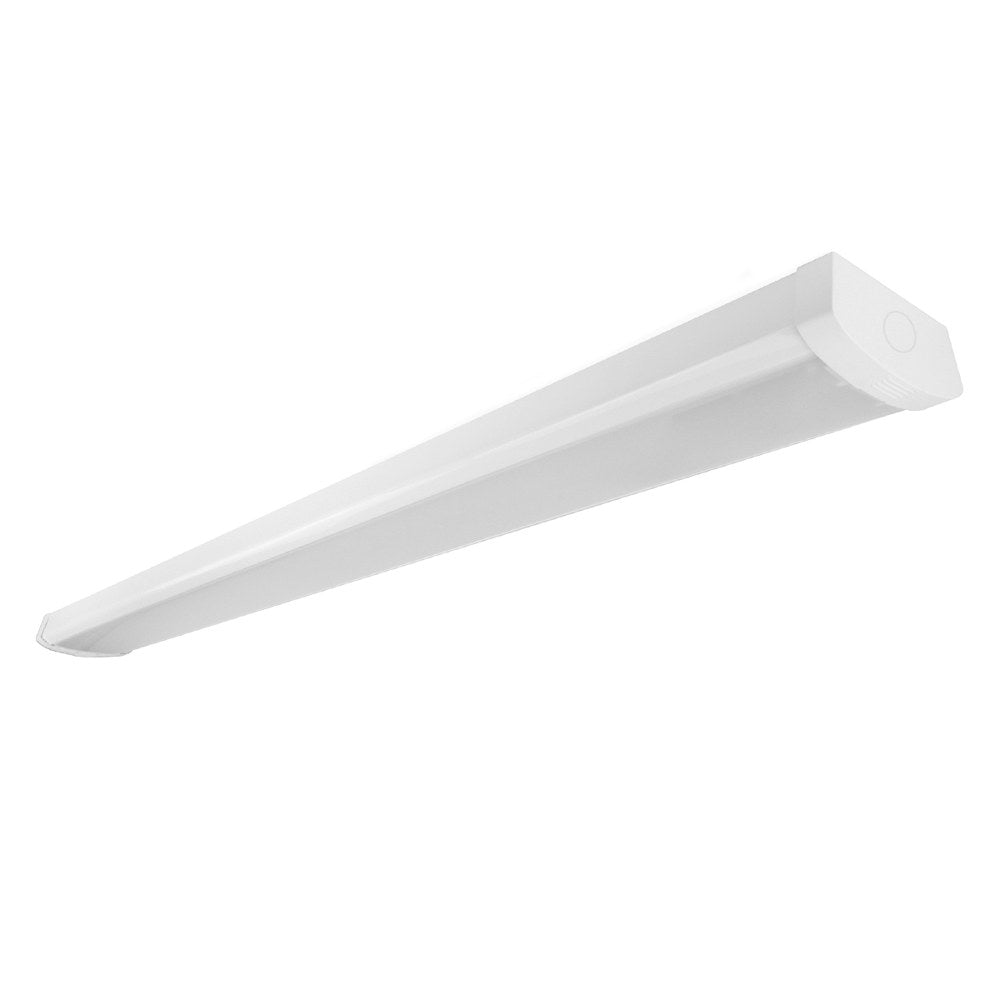

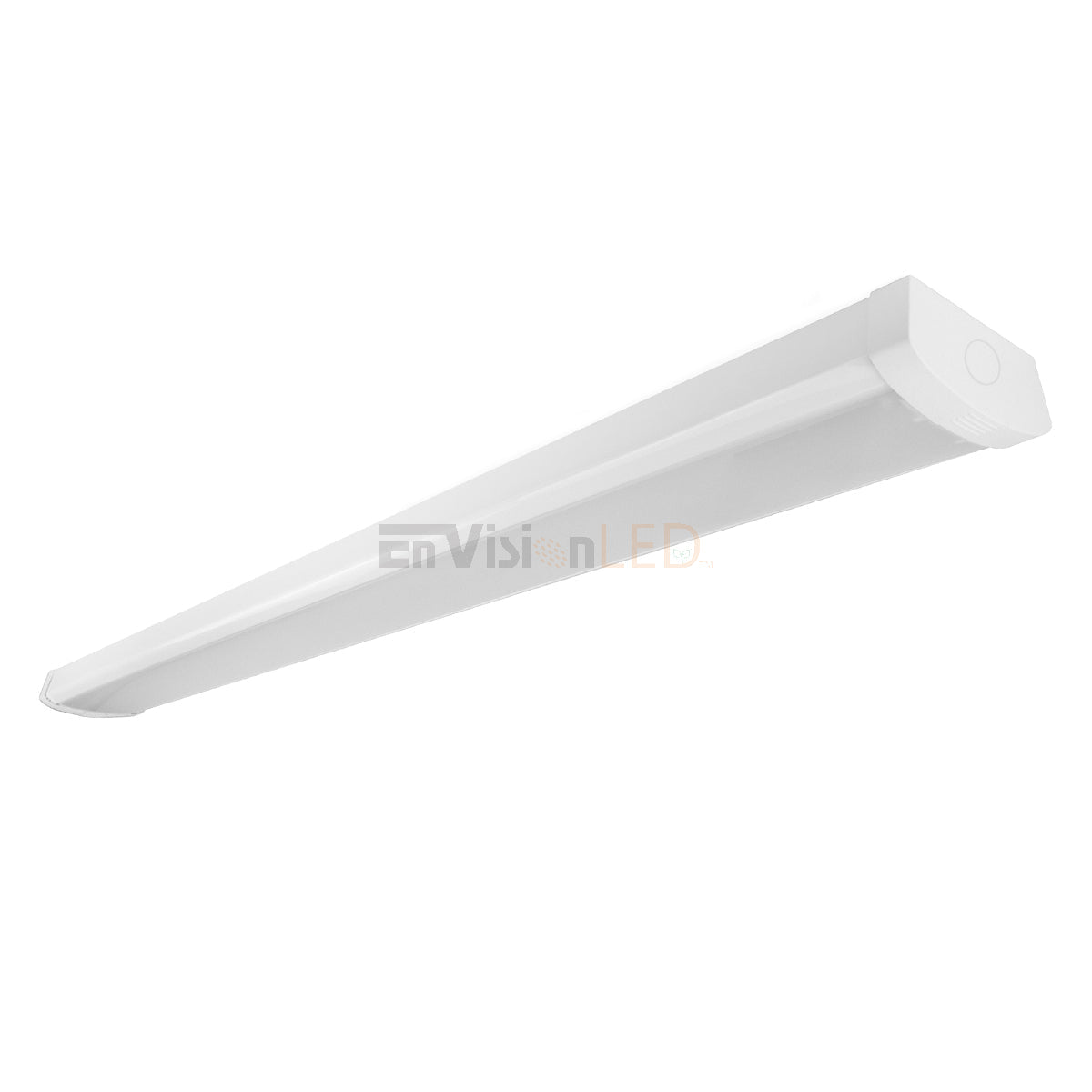

EnVision LED-WRP-FR-2FT-20W-50K – 2 FT Frosted Wrap

Product Overview

The EnVision LED-WRP-FR-2FT-20W-50K is a 2-foot frosted LED wrap fixture that produces 2200 lumens from a 20W driver for general-purpose ceiling illumination.

It operates on universal 120–277V, provides 5000K color temperature with CRI >80, supports 0–10V dimming, and is ETL listed with a 5-year warranty for dry-location use.

Key Features

• 20W power draw with 2200 lumens output
• 5000K color temperature; CRI >80
• Universal input: 120–277V
• 0–10V dimming
• 110° beam angle
• White frosted finish; rated for dry locations
• ETL listed; 5-year warranty
• Packaged 12 per box; UPC 819715024061

What this fixture does

A 2-foot wrap-style LED designed to provide ambient illumination for general-purpose indoor ceilings, delivering 2200 lumens while consuming 20 watts.

• Output: 2200 lumens
• Power: 20W
• Form factor: 2 ft frosted wrap

Recommended applications

Intended for dry interior locations where a low-profile wrap light is appropriate. Common uses include corridors, stairwells, utility and mechanical rooms, and general-purpose ceilings.

• Dry-location rated interior use
• Typical areas: hallways, stairwells, utility rooms, general ceilings

Electrical and dimming requirements

Compatible with 120–277V supplies. Supports 0–10V dimming control when connected to a compatible 0–10V dimmer or control system.

• Voltage: 120–277V
• Dimming: requires a compatible 0–10V dimmer or control

Light output and optical performance

Provides cool white light at 5000K with CRI greater than 80. A 110° beam angle offers broad distribution for ambient lighting.

• Color temperature: 5000K
• CRI: >80
• Beam angle: 110°

Certifications and physical finish

ETL listed and covered by a 5-year warranty. The fixture has a white frosted finish and is packaged 12 per box for project orders.

• ETL listed
• 5-year warranty
• Finish: white frosted
• Box quantity: 12; UPC: 819715024061

Before You Order

Confirm the model, fixture length, and that the installation environment is a dry location. Verify compatibility with any existing 0–10V dimmer controls if dimming is required.

• Confirm model: LED-WRP-FR-2FT-20W-50K
• Verify mounting surface and fixture length fit the installation
• Ensure installation location is dry and compatible with ETL dry-location rating

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-WRP-FR-2FT-20W-50K – 2 FT Frosted Wrap. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
