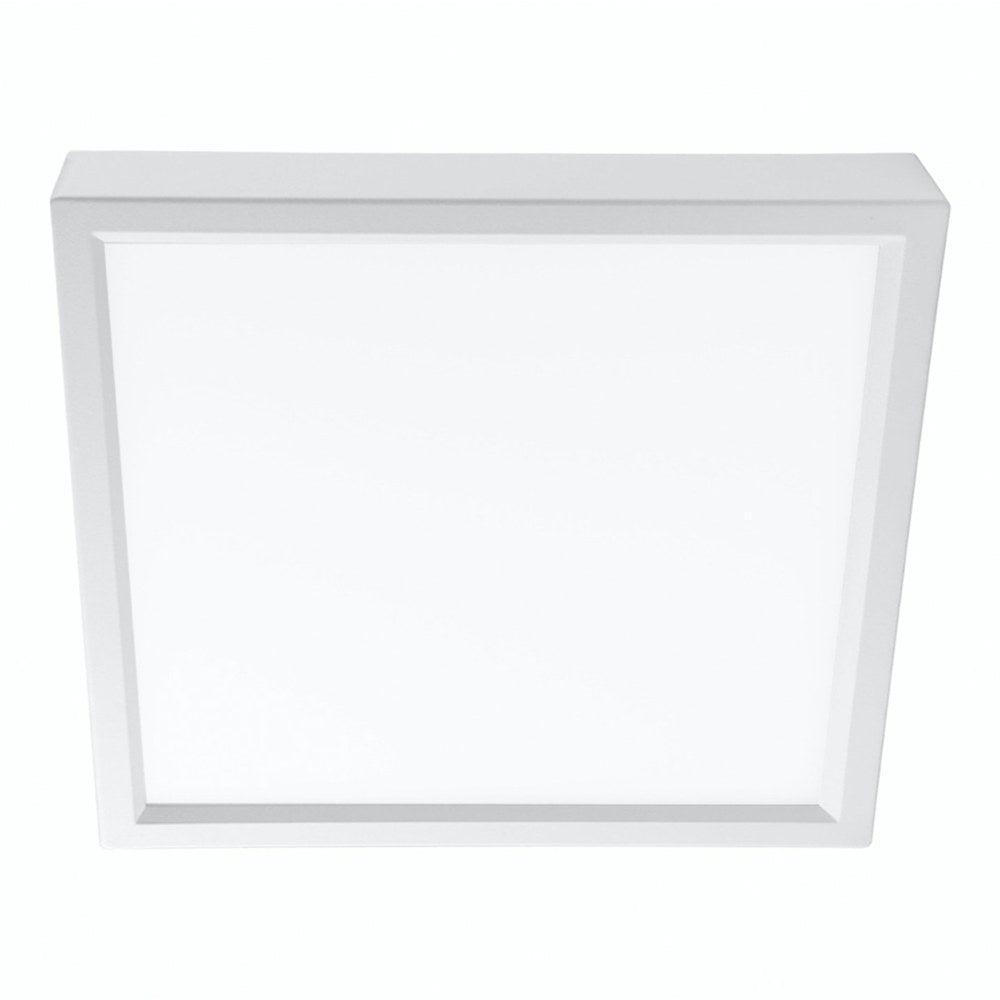

EnVision LED-SLDSKSQ-7-15W-5CCT-WH – 7" SlimLine Surface Mount Square

Product Overview

The EnVision LED-SLDSKSQ-7-15W-5CCT-WH is a 7" SlimLine surface-mount square LED disk delivering 15W and 1,000 lumens with five selectable color temperatures (27/30/35/40/50K).

It uses edge-lit technology with a frosted acrylic lens for even light distribution, is intended for surface-mounted installations, and is listed by ETL with a 5-year limited warranty.

Key Features

• Wattage: 15W
• Output: 1,000 lumens
• Selectable CCT: 27K / 30K / 35K / 40K / 50K
• CRI: >90 (R9 >50)
• Voltage & dimming: 120V, Triac dimmable (120V models)
• IP Rating: Wet Location
• Beam angle: 110°
• Finish: White
• Average life (L70): 50,000 hours
• Warranty: 5-year limited warranty

What this fixture does

Provides 1,000 lumens from a 15W LED platform with five selectable color temperatures for tailoring white light output.

Edge-lit design with a frosted acrylic lens yields uniform, low-glare illumination appropriate for general ambient lighting.

• Selectable 5-CCT: 27K / 30K / 35K / 40K / 50K
• Edge-lit frosted acrylic lens for uniform output
• Beam angle: 110°

Recommended applications

Suitable for interior surface-mount installations where a low-profile square fixture is desired.

Manufacturer lists typical uses including residential and multifamily, offices and meeting rooms, education, healthcare, retail, and hospitality.

• Surface-mount general ambient lighting
• Wet-location rating permits installation in locations permitted by the wet-location designation

Electrical requirements and dimming

Designed for 120V operation. The SlimLine surface models are specified as Triac dimmable at 120V.

Manufacturer data indicate AC driverless/edge-lit technology with reported THD <15% (±5%) and power factor >0.9 for the SlimLine family.

• Input voltage: 120V
• Dimming: Triac (forward-phase) dimmable at 120V
• Electrical notes from manufacturer: THD <15% (±5%), PF >0.9, 50/60Hz

Construction, materials and key dimensions

Plastic housing with metal trim and a frosted acrylic, non-yellowing lens. Surface-mount bracket is included and the fixture accepts standard junction box mounting, including pancake J-box.

Nominal size: 7" square with a low-profile depth as shown in manufacturer dimensions for the SlimLine family.

• Housing: plastic; trims: metal
• Lens: frosted acrylic (non-yellowing)
• Mounting: surface-mount bracket included; fits 3O/4O junction boxes or pancake J-box

Certifications and warranty

ETL listed for the U.S. and Canada and Energy Star certified as noted by the manufacturer. The product carries a 5-year limited warranty.

Manufacturer documentation lists CA Title 24 JA8 among compliance items for the SlimLine family; verify specific code requirements for your project.

• ETL Listed (US & CA)
• Energy Star certified
• CA Title 24 JA8-2022 CEC listed (as applicable)
• 5-year limited warranty

Before You Order

Confirm model number, required quantity, and that 120V Triac dimming and wet-location rating meet your project needs.

• Set the desired CCT per the manufacturer's instructions during installation.
• Optional trims, recessed can converters, and emergency backup accessories are available from the manufacturer and are ordered separately.
