EnVision LED-SLDSKSQ-5-10W-TRI – 5" SlimLine Surface Mount Square

Product Overview

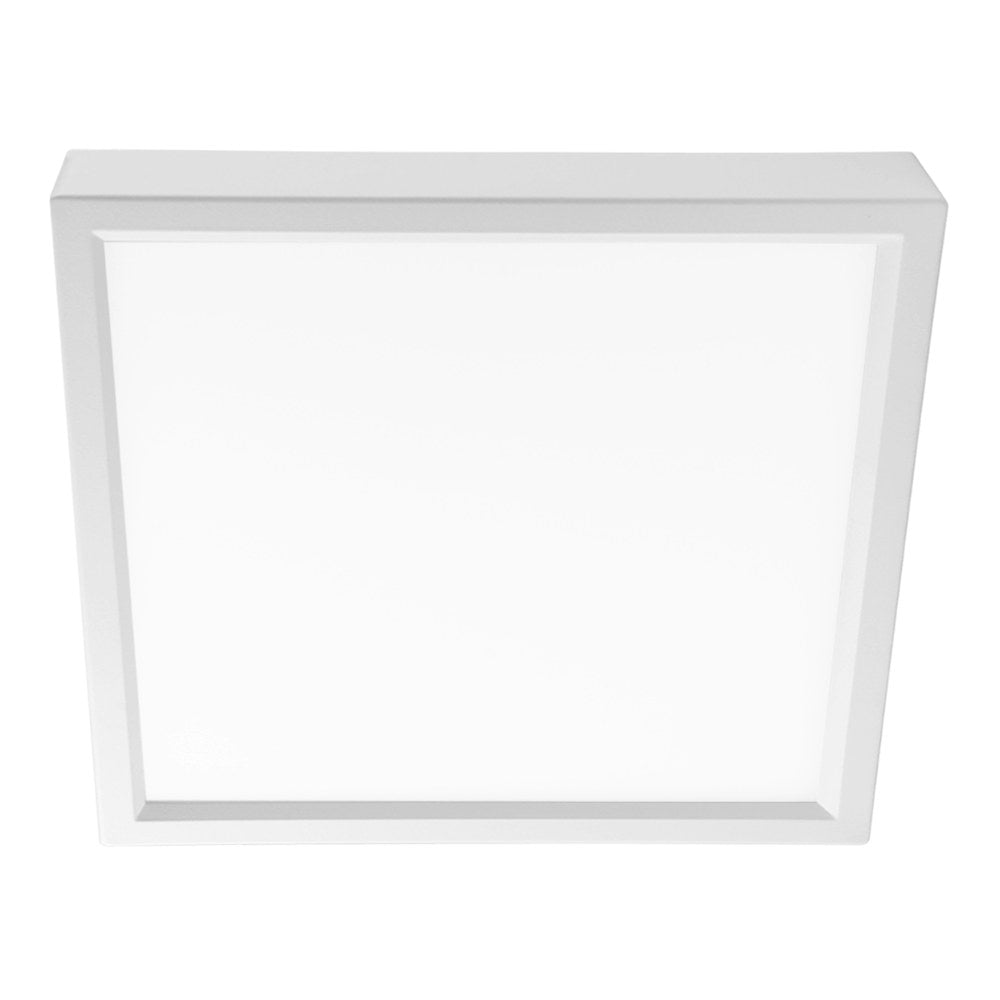

The EnVision LED-SLDSKSQ-5-10W-TRI is a 5-inch square SlimLine surface-mount LED disk light. It uses 10W and produces 650 lumens.

It has a white finish, a wet-location rating, and selectable 3000K, 4000K, or 5000K color temperature. It is rated for 120V and Triac dimming.

Key Features

• 5-inch square SlimLine surface-mount design with white finish
• 10W and 650 lumens
• Selectable 3000K, 4000K, or 5000K color temperature
• 120V; Triac dimmable to 5%
• CRI greater than 90; rated for wet locations

Light Output and Selectable Color

This 5-inch square LED disk light delivers 650 lumens at 10W. It offers selectable 3000K, 4000K, or 5000K color temperature and a CRI greater than 90.

• Beam angle: 110°
• Lens: frosted acrylic

Voltage and Dimming

The LED-SLDSKSQ-5-10W-TRI is rated for 120V and uses Triac dimming, with dimming down to 5%.

Mounting and Location Rating

This fixture is designed for surface mounting. A surface-mount bracket is included, and the manufacturer specifies 3- or 4-inch junction boxes, including pancake junction boxes. It is rated for wet locations.

Certifications and Warranty

The SlimLine Surface series is ETL listed for the United States and Canada, Energy Star certified, and CA Title 24 JA8-2022 CEC listed. The warranty is five years, limited.

Before You Order

Check that the 120V rating and Triac dimming match your project requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-SLDSKSQ-5-10W-TRI – 5" SlimLine Surface Mount Square. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
