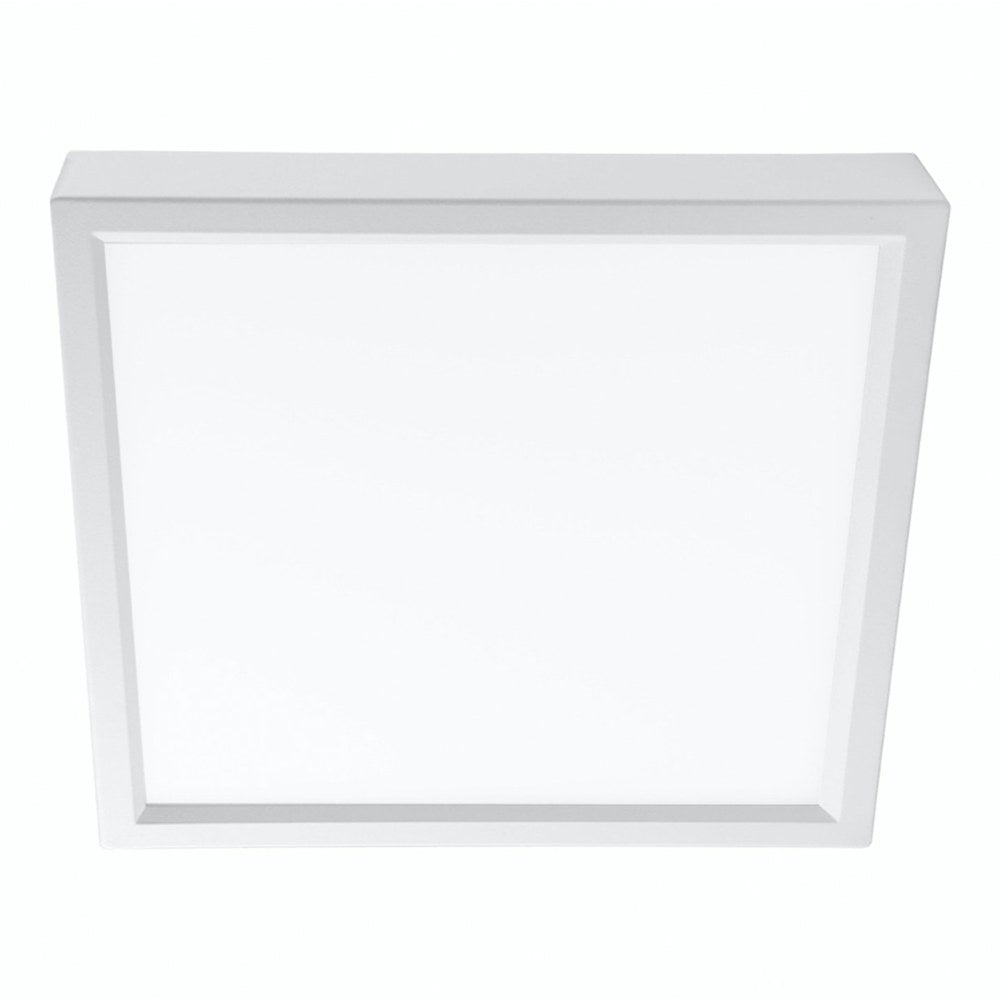

EnVision LED-SLDSKSQ-5-10W-5CCT-WH – 5" SlimLine Surface Mount Square

Product Overview

The EnVision LED-SLDSKSQ-5-10W-5CCT-WH is a 5" SlimLine square surface-mount LED disk that delivers 10W and 650 lumens with five selectable color temperatures (2700/3000/3500/4000/5000K).

It uses edge-lit, driverless AC technology with a frosted acrylic lens and is ETL listed with a 5-year limited warranty.

Key Features

• 10W, 650 lumens
• Selectable 2700K / 3000K / 3500K / 4000K / 5000K
• CRI >90 with R9 >50
• 120V AC; Triac/ELV dimmable (120V models)
• Wet-location rated; frosted acrylic, non-yellowing lens
• Slim driverless edge-lit design; white finish included
• ETL Listed (US & CA), Energy Star certified, CA Title 24 JA8 listed; 5-year limited warranty

What this fixture does

A slim-profile square surface-mount LED disk designed for general ambient lighting where a low-profile surface fixture is preferred. Edge-lit construction and a frosted acrylic lens produce even, low-glare illumination.

• Typical applications listed by the manufacturer include recessed lighting, residential and multifamily, office, education, healthcare, retail, and hospitality.
• Standard white square trim is included; surface mount bracket is provided for surface installation.

Light output and color

Produces 650 lumens at 10 watts. The selectable CCT feature allows on-site selection among five white points to match the space.

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
• Color rendering: CRI >90 with R9 >50 as specified by the manufacturer.
• Beam distribution: manufacturer specifies a wide beam (listed as 110° in spec sheet; commonly noted around 100–110° for SlimLine series).

Electrical requirements and dimming

This model is a 120V AC fixture using driverless AC technology. The manufacturer documents Triac dimming capability for 120V versions and lists tested dimmer models.

• Voltage: 120V AC.
• Dimming: Triac/ELV dimmable for 120V models. Manufacturer lists tested Lutron dimmers (PD-6WCL, DVCL-153P, CTCL-153P, MACL-153M, LECL-153P).
• Manufacturer performance notes include THD <15% (±5% tolerance), power factor >0.9, and flicker-free operation.

Mounting and installation

Includes a surface mount bracket and supports mounting to standard junction boxes, including pancake J-boxes. Optional accessories are available for other mounting or trim styles.

• Mounting: surface mount bracket included; compatible with standard junction boxes and pancake J-boxes.
• Optional accessories (sold separately): recessed can converters, clip-on trims in multiple finishes, stem mounts, and emergency backup units.
• Construction: frosted acrylic lens, plastic housing, metal trim (white trim included).

Certifications, ratings, and warranty

The fixture carries multiple certifications and ratings relevant to commercial and residential projects, per the manufacturer's documentation.

• Listings: ETL Listed for US & Canada, Energy Star certified, CA Title 24 JA8-2022 CEC listed.
• Environmental: Wet Location rated; operating temperature −40°F to 114°F.
• Other: IC rated, ASTM-E283 air-tight, complies with listed UL/ASTM/CAN standards; 5-year limited warranty.

Size, finish, and physical details

A compact 5" nominal SlimLine square surface disk provided with a white finish and frosted, non-yellowing acrylic lens. Manufacturer lists average L70 life of 50,000 hours.

• Nominal size: 5" model.
• Finish: white trim included; additional trim finishes (black, bronze, brushed nickel) available as accessories.
• Expected life: L70 50,000 hours per manufacturer.

Before You Order

Verify model, finish, and quantity before ordering; accessories and alternate trims are sold separately.

• This SKU is the 5" square white selectable-CCT surface-mount model (LED-SLDSKSQ-5-10W-5CCT-WH).
• If different voltage ranges or 0-10V dimming are required, select from the manufacturer's other model options.
