EnVision LED-SLDSKSQ-12-22W-5CCT-WH – 12" SlimLine Surface Mount Square

Product Overview

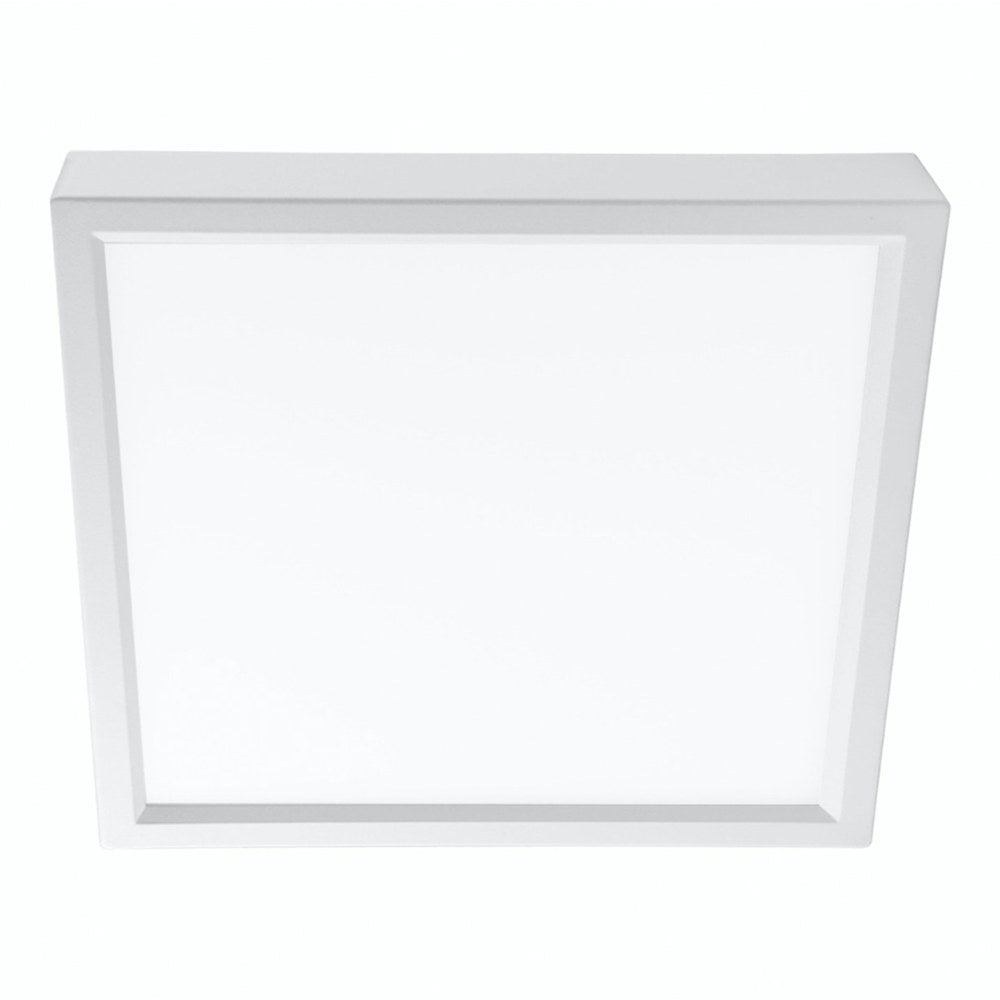

The EnVision LED-SLDSKSQ-12-22W-5CCT-WH is a 12" slim-profile surface-mount square LED disk light delivering 22W and 1,450 lumens with selectable color temperatures (27/30/35/40/50K).

It provides high color quality (CRI >90) and is listed for wet locations. The fixture is part of EnVision's SlimLine Surface family and includes a surface mount bracket.

Key Features

• Wattage: 22W
• Light output: 1,450 lumens
• Selectable CCT: 27K / 30K / 35K / 40K / 50K
• Voltage: 120V
• Dimming: 120V Triac / ELV dimmable
• Color rendering: CRI >90 (R9 >50), 3-step MacAdam
• Beam angle: 110° (manufacturer specification)
• IP Rating: Wet Location
• Finish: White
• Listings and warranty: ETL listed for USA & Canada; Energy Star and CA Title 24 JA8 indicated on manufacturer's sheet; 5-year limited warranty

What this fixture is for

This 12" SlimLine surface-mount square disk light provides general-area illumination for residential and commercial interiors. The manufacturer lists applications such as residential & multifamily, offices, education, healthcare, retail, and hospitality.

• General-area illumination where a low-profile square surface fixture is desired
• Common spaces in multifamily buildings, offices, retail, and hospitality

Light output and color

The fixture produces 1,450 lumens at 22W and offers five selectable color temperatures (27K, 30K, 35K, 40K, 50K). Color quality is specified as CRI >90 with R9 >50 and 3-step MacAdam ellipses.

• Output: 1,450 lm (22W)
• Selectable CCT: 27/30/35/40/50K
• Color rendering: CRI >90, R9 >50

Electrical and dimming

The product family documentation describes AC driverless technology for 120V operation and lists 120V triac dimmable behavior. The manufacturer provides a list of tested compatible Lutron dimmers and electrical characteristics such as PF >0.9 and THD <15% (±5% tolerance).

• Input: 120V AC
• Dimming: Triac / ELV (120V); manufacturer lists tested Lutron dimmers (e.g., PD-6WCL, DVCL-153P, CTCL-153P)
• Electrical notes from spec sheet: PF >0.9; THD <15% (±5% tolerance)

Mounting and installation

The fixture is supplied with a surface mount bracket and is suited for mounting over standard junction boxes, including pancake junction boxes. Optional accessories from the manufacturer include recessed can converters, trims, pendant stems, and emergency backup modules (sold separately).

• Surface mount bracket included; mounts to standard junction boxes (including pancake j-box)
• Optional accessories (order separately): recessed can converters (SLDSK-12-6CLIP), square trims (SLDSKSQ-12-TRIM-*), pendant stem mounts (STM-JBX-6-*), and emergency backup modules
• Lens: frosted acrylic; housing: plastic with metal trims

Certifications and ratings

Manufacturer documentation lists ETL listing for the U.S. and Canada, Energy Star and CA Title 24 JA8 listings for the product family, a wet-location rating, and a 5-year limited warranty. The spec sheet also lists an average L70 life of 50,000 hours.

• Listings: ETL for USA & CA; Energy Star and CA Title 24 JA8 indicated on manufacturer sheet
• Environmental: Wet Location rated; operating temperature range listed as -40°F to 114°F
• Warranty & life: 5-year limited warranty; L70 life listed as 50,000 hours

Before You Order

Confirm model number, required quantity, and that 120V triac/ELV dimming meets your project requirements. Accessories such as trims, recessed can converters, pendant stems, and emergency backup modules are sold separately.

• Model: LED-SLDSKSQ-12-22W-5CCT-WH
• Voltage: 120V — other driver options are referenced in manufacturer family documentation but are separate SKUs
• Accessories (trims, converters, stems, emergency backups) are ordered separately
