EnVision LED-SLDSKR-7-13W-5CCT-WH-BMS – Slim-Line

(No Ratings)
SKU: LED-SLDSKR-7-13W-5CCT-WH-BMS
Price: $36.40
Free shipping on orders over $1,500

Description

Product Overview

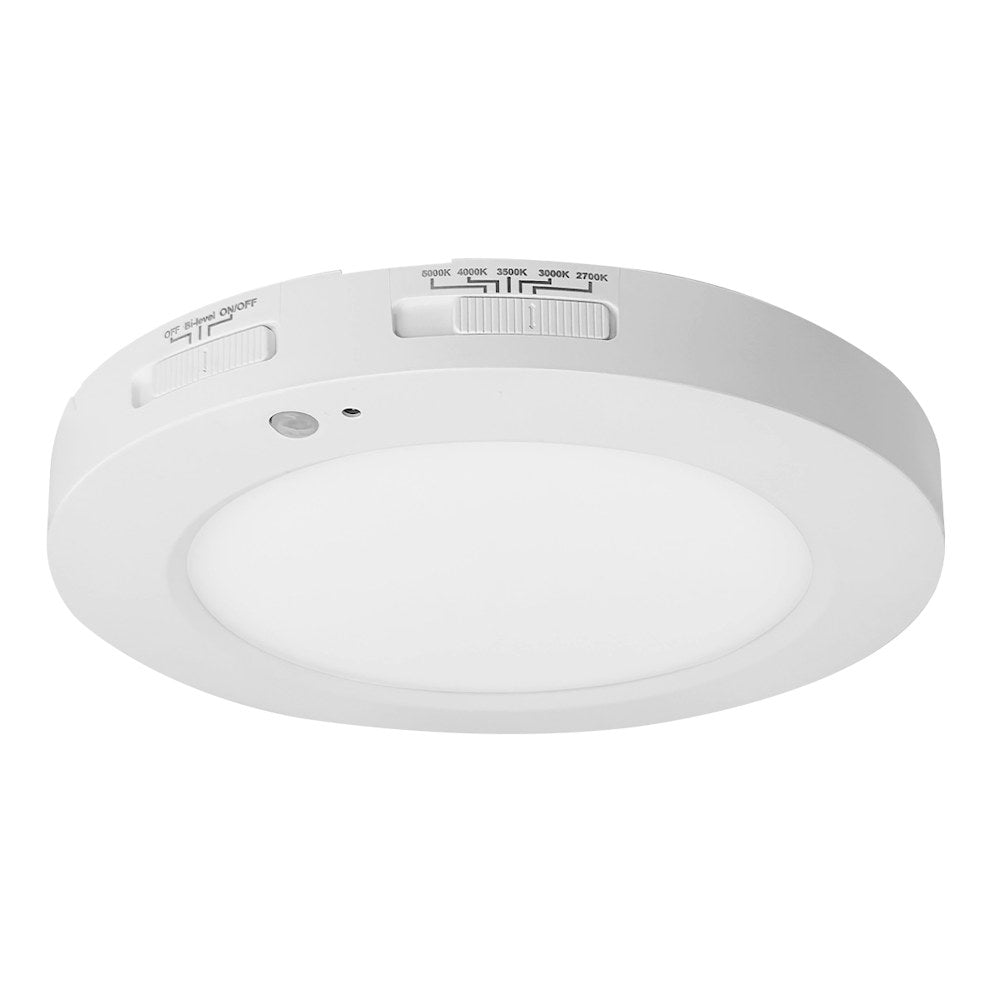

The EnVision LED-SLDSKR-7-13W-5CCT-WH-BMS is a 7" slim-profile round LED disk light that delivers 13W and 1,050 lumens with a selectable 5-CCT range (2700K–5000K).

This model uses edge-lit technology with a frosted acrylic lens, includes an integrated PIR bi-level motion sensor, and is listed by ETL, Energy Star (7" ID 3542829), and JA8 with a 5-year limited warranty.

Key Features

  • 13W, 1,050 lumens
  • Selectable 5-CCT: 2700K / 3000K / 3500K / 4000K / 5000K
  • CRI >90 with R9 >50; 3-step MacAdam ellipses
  • Wet-location rated; frosted non-yellowing acrylic lens
  • Integrated PIR bi-level motion sensor with three settings (Off, On/Off, Bi-Level)
  • Edge-lit, driverless AC technology; flicker free; average life L70 = 50,000 hours (manufacturer specification)
  • Certifications: ETL (US/CA), Energy Star (7" ID 3542829), California Title 24 JA8-2022; 5-year limited warranty

What this fixture does

The EnVision LED-SLDSKR-7-13W-5CCT-WH-BMS is intended for general recessed and surface-mounted interior lighting where a low-profile, round LED disk is desired. Edge-lit construction and a frosted acrylic lens provide even, low-glare illumination.

  • Typical use: general room illumination in residential and commercial interiors
  • Standard white round trim and a slim profile for a clean ceiling appearance

Performance and light quality

This 7" model delivers 1,050 lumens from 13 watts and offers five selectable CCT settings to match application needs. Manufacturer specifications list high color fidelity and an expected L70 life.

  • Wattage: 13W
  • Light output: 1,050 lm
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • CRI >90 with R9 >50; 3-step MacAdam ellipses
  • Beam/Distribution: manufacturer specifies a broad distribution (listed as 110° beam angle for this series)
  • Rated average life: L70 = 50,000 hours (manufacturer specification)

Sensor and dimming behavior

The fixture includes an integrated PIR bi-level motion sensor with three selectable modes. Dimming behavior depends on sensor state and driver configuration per the manufacturer's notes.

  • Sensor settings: Off (sensor inactive), On/Off (fixture turns off after 1 minute), Bi-Level (fixture dims after 1 minute and remains on at reduced output)
  • Manufacturer notes: a 120V triac-dimmable driver option is available for triac dimming down to 5% only when the sensor is de-activated
  • Electrical performance per manufacturer: THD <20% (±5% tolerance), power factor >0.9, flicker free

Mounting and installation notes

The Slim-Line series is designed for flexible installation in recessed cans or surface-mounted applications and ships with common mounting accessories.

  • Size: 7" diameter
  • Recessed compatibility: manufacturer states 7" and 12" versions work in 6" recessed cans using included friction clips; surface mount bracket is included
  • Includes retrofit can converter for the series where applicable
  • Electrical: 120V AC, 50/60 Hz; described by manufacturer as driverless AC technology (see installation guidance from manufacturer)

Certifications and warranty

This model carries multiple listings and program qualifications cited by the manufacturer that are relevant for specification and compliance.

  • ETL Listed for US and Canada
  • Energy Star Certified (7" model ID: 3542829)
  • California Title 24 JA8-2022 compliant
  • IC rated, air-tight per ASTM-E283, closet rated
  • Manufacturer lists additional compliance with FCC (CFR 47 Part 15 Subpart B), UL 263, ASTM E119, CAN ULC S101
  • 5-year limited warranty

Before You Order

Verify the model and quantity, and confirm that the integrated sensor, selectable CCT, and mounting style meet your project requirements.

  • This SKU is the 7" version; ensure compatibility with the intended recessed can (manufacturer notes compatibility with 6" cans for 7" model using included friction clips).
  • If triac dimming to 5% is required, the manufacturer indicates dimming to 5% applies only when the sensor is de-activated and a 120V triac-dimmable driver option is used.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-SLDSKR-7-13W-5CCT-WH-BMS – Slim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKULED-SLDSKR-7-13W-5CCT-WH-BMS
Type7" Slim-Line LED Disk Light
Wattage13W
Lumens1,050 lm
Color TemperatureSelectable 2700K / 3000K / 3500K / 4000K / 5000K
CRI>90 (R9 >50)
Beam Angle110° (manufacturer series specification)
Voltage120V, 50/60 Hz
Operating Temperature-40° to 114° F
LensFrosted acrylic, non-yellowing
IP RatingWet Location
FinishWhite
Size7" diameter
CertificationsETL, Energy Star (ID 3542829), JA8-2022
Rated Life50,000 hours
Warranty5-year limited warranty
UPC810143710076
DLC ID3542829
