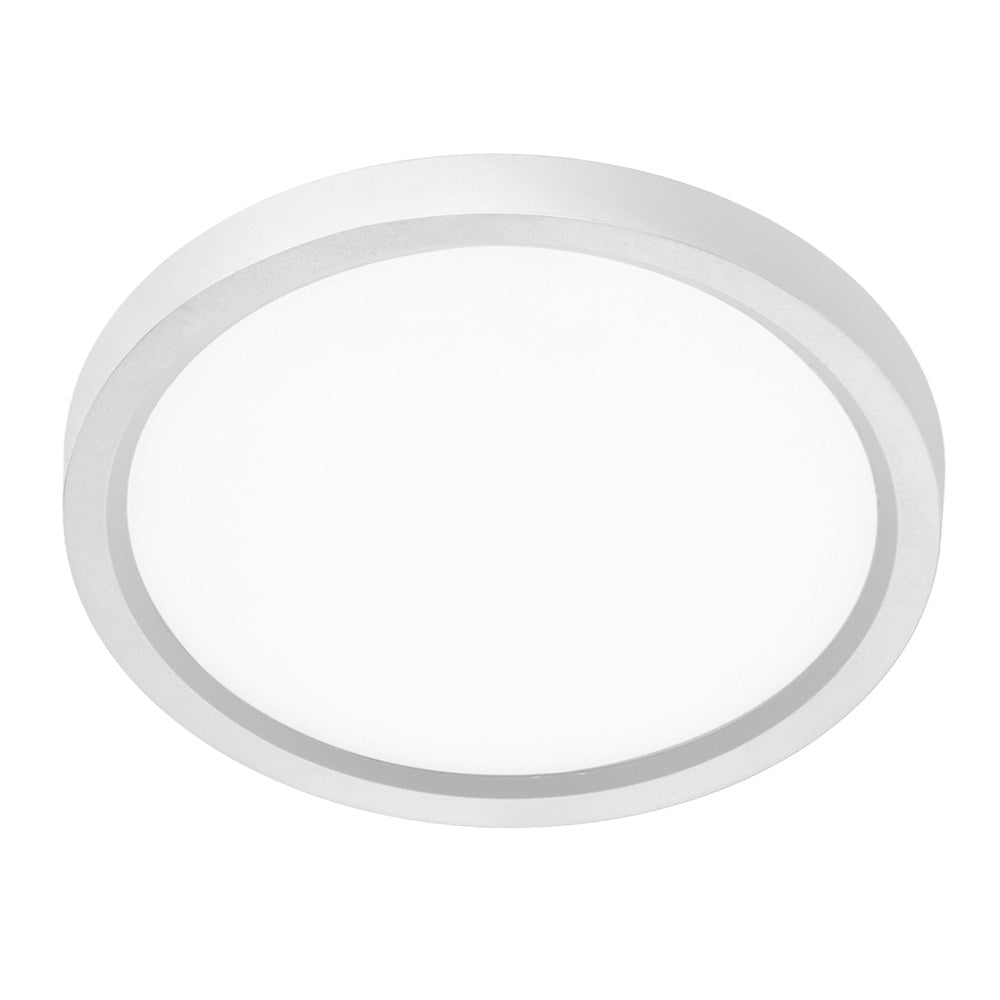

EnVision LED-SLDSKR-15-30W-5CCT-WH-0/10V – Slim-Line

Product Overview

The EnVision LED-SLDSKR-15-30W-5CCT-WH-0/10V is a 15-inch round Slim-Line LED disk light rated at 30W and 2,000 lumens. It has a white finish, selectable color temperature and 0–10V dimming.

This surface-mount model operates on 120–277V and is rated for wet locations. Its five selectable color temperatures are 2700K, 3000K, 3500K, 4000K and 5000K.

Key Features

• 30W output and 2,000 lumens
• Selectable 2700K, 3000K, 3500K, 4000K or 5000K color temperature
• 120–277V operation with 0–10V dimming
• 15-inch round fixture with white finish
• Wet-location rating and CRI greater than 90
• 100° beam angle

Light Output and Selectable Color Temperature

This 15-inch EnVision Slim-Line model delivers 2,000 lumens at 30W, with a 100° beam angle. Its five selectable color temperatures are 2700K, 3000K, 3500K, 4000K and 5000K.

• CRI: greater than 90
• LED chip: SMD 2835
• R9: greater than 50
• Color consistency: 3-step MacAdam Ellipses

Voltage and 0–10V Dimming

The fixture is specified for 120–277V input and 0–10V dimming. Triac dimming is available on a separate specification sheet.

• Power factor: greater than 0.9
• Total harmonic distortion: less than 15% (±5% tolerance)
• Frequency: 50/60Hz

Mounting and Listed Applications

The Slim-Line fixture is a surface mount designed for junction-box mounting. For 12-inch and 15-inch models, the manufacturer specifies 3O, 4O and 4S junction boxes. Listed application types include general recessed lighting, residential and multifamily spaces, offices and meeting rooms, education, healthcare, retail and hospitality.

• The standard included trim is round and white.

Ratings, Listings and Warranty

The fixture is rated for wet locations. Manufacturer documentation identifies ETL listing for the United States and Canada, Energy Star certification, CA Title 24 JA8-2022 CEC listing, IC rating, ASTM-E283 airtightness and closet rating.

• Average rated life: 50,000 hours L70
• Operating temperature: -40°F to 114°F
• Warranty: 5-year limited

Before You Order

Confirm the required model, quantity and selectable color temperature before ordering.

• The standard finish is white.
