EnVision LED-SLDSKR-12-24W-5CCT-WH – Slim-Line

Product Overview

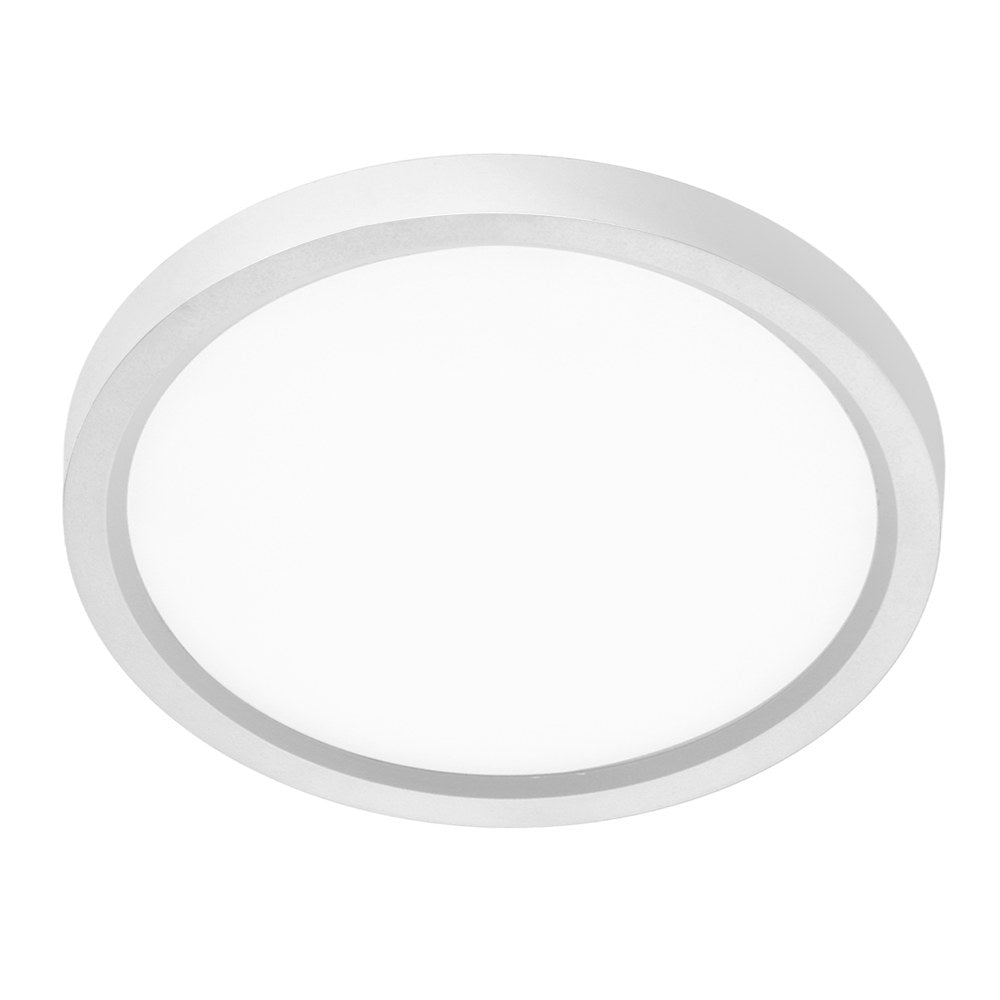

The EnVision LED-SLDSKR-12-24W-5CCT-WH is a 12-inch round Slim-Line LED disk light with a white finish. It delivers 1,800 lumens at 24W and has five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K.

The fixture operates on 120V, is dimmable with Triac, and is rated for wet locations. A surface-mount bracket is included; a 12-inch recessed-can converter is available separately.

Key Features

• 24W input and 1,800-lumen output
• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
• 120V operation and Triac dimming
• CRI greater than 90 and 110° beam angle
• White finish, wet-location rating, and 12-inch size

Light Output and Selectable Color Temperature

This 12-inch EnVision Slim-Line disk light produces 1,800 lumens at 24W. Its five selectable color temperatures are 2700K, 3000K, 3500K, 4000K, and 5000K. The fixture has a CRI greater than 90 and a 110° beam angle.

120V Operation and Triac Dimming

The LED-SLDSKR-12-24W-5CCT-WH operates on 120V and supports Triac dimming. Tested compatible dimmers include Lutron PD-6WCL, DVCL-153P, CTCL-153P, MACL-153M, and LECL-153P. Other dimmers may be compatible but have not been tested.

Surface Mounting and Recessed-Can Converter

A surface-mount bracket is included. The fixture can be installed on 3- or 4-inch junction boxes, including pancake junction boxes. A 6-inch recessed-can converter for 12-inch fixtures is available separately.

Wet-Location Rating and Certifications

The fixture is rated for wet locations. The Slim-Line series is ETL listed for the USA and Canada, Energy Star certified, and CA Title 24 JA8-2022 CEC listed. The manufacturer specifies a five-year limited warranty.

Before You Order

The 12-inch recessed-can converter is available separately.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-SLDSKR-12-24W-5CCT-WH – Slim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
