EnVision LED-SLDSKR-12-23W-5CCT-WH-BMS – Slim-Line

Product Overview

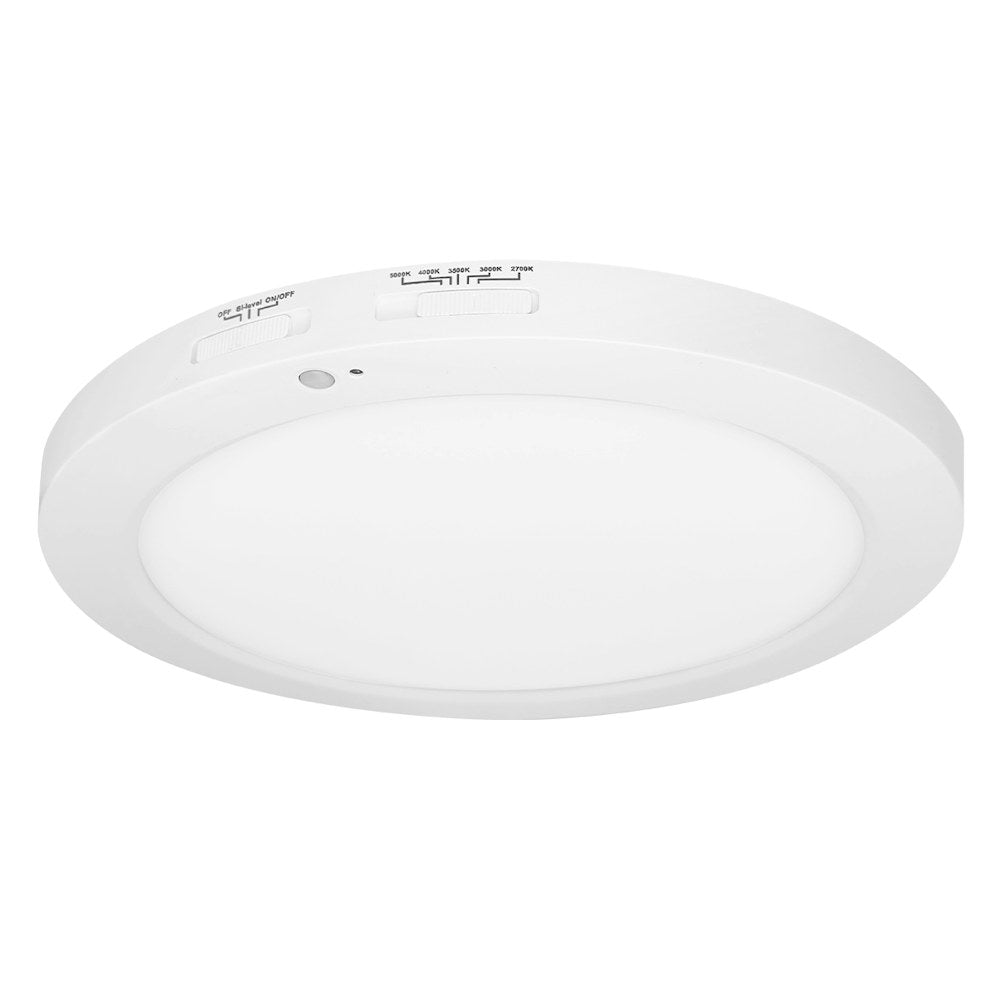

The EnVision LED-SLDSKR-12-23W-5CCT-WH-BMS is a 12-inch SlimLine LED disk light with a bi-level motion sensor. It operates at 120V and is rated at 23W and 1900 lumens.

Choose from five selectable color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. The white round fixture is rated for wet locations and has a 110° beam angle.

Key Features

• 23W and 1900 lumens, with CRI greater than 90.
• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K.
• Motion sensor with off, on/off and bi-level settings.
• Triac dimmable to 5% when the motion sensor is deactivated.

Light Output and Selectable Color

This 12-inch EnVision SlimLine disk light produces 1900 lumens at 23W, with a 110° beam angle and CRI greater than 90. Its selectable CCT switch offers five settings: 2700K, 3000K, 3500K, 4000K and 5000K.

Motion Sensor and Dimming Controls

The motion sensor has three settings: off, on/off and bi-level. In on/off mode, the fixture turns off after one minute without detected motion. In bi-level mode, it dims to approximately 30% after one minute without detected motion and does not turn off.

The fixture is Triac dimmable to 5% only when the motion sensor is deactivated. The manufacturer lists tested compatible dimmer models; other dimmers may be compatible but have not been tested.

Recessed-Can Fit and Surface Mounting

The 12-inch model works in a 6-inch recessed can using the included friction clips. A surface-mount bracket is included.

Location Rating and Certifications

The fixture is rated for wet locations. It is ETL listed for the USA and Canada, JA8-2022 CEC listed, IC rated and ASTM-E283 air-tight. It has a five-year limited warranty.

Before You Order

Confirm that model LED-SLDSKR-12-23W-5CCT-WH-BMS matches your requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-SLDSKR-12-23W-5CCT-WH-BMS – Slim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
