EnVision LED-SLDSKR-12-22W-5CCT-WH-0/10V – Slim-Line

Product Overview

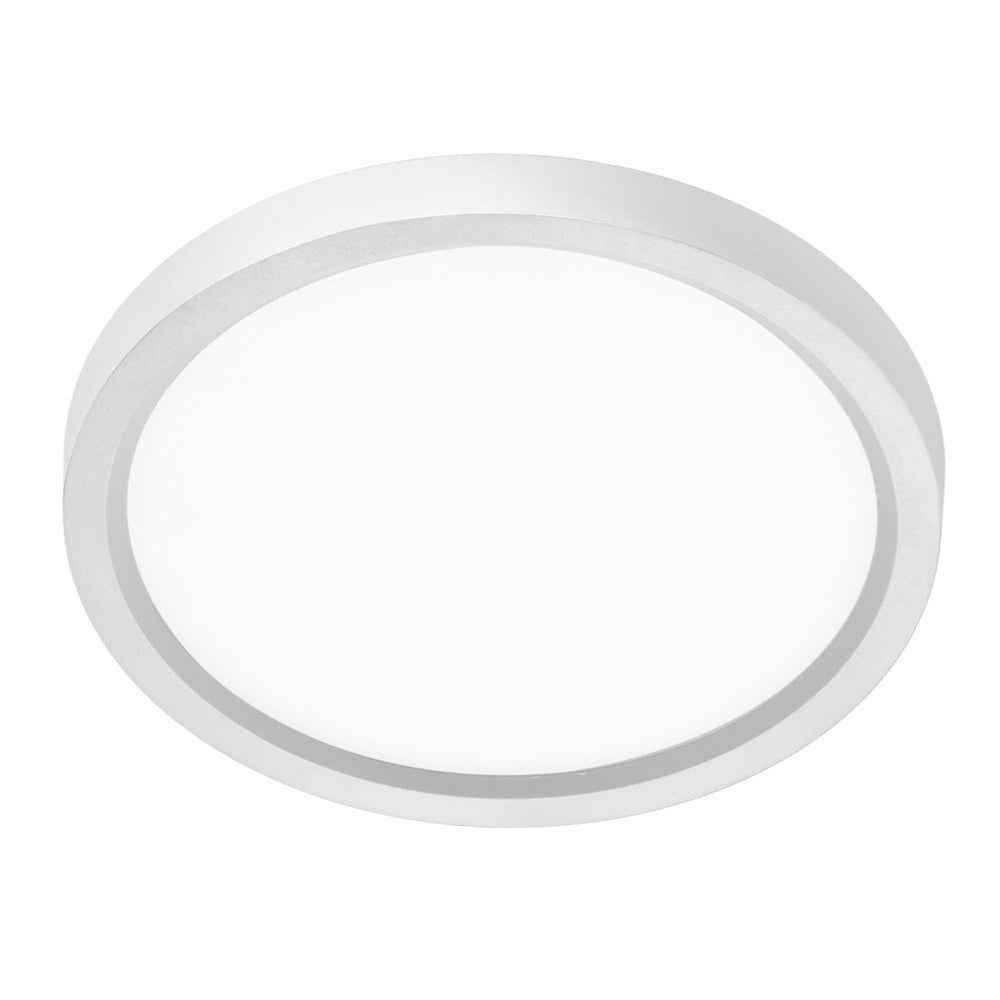

The EnVision LED-SLDSKR-12-22W-5CCT-WH-0/10V is a 12" Slim-Line surface-mount disk light producing 22W and 1,450 lumens with five selectable CCTs (2700/3000/3500/4000/5000K).

Rated for wet locations and 120–277V operation, this fixture supports 0–10V dimming, has CRI >90 with R9 >50, and carries ETL listing, Energy Star certification, and a 5-year limited warranty.

Key Features

• Wattage: 22W • Output: 1,450 lumens
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• Voltage: 120–277V • Dimming: 0–10V
• Color quality: CRI >90 • R9 >50 • Frosted non-yellowing lens
• Wet-location rated • Edge-lit beam distribution (~110°)
• Listings & warranty: ETL Listed (US/CA), Energy Star certified, CA Title 24 JA8-2022 listed, 5-year limited warranty

What this fixture is and where it’s used

The LED-SLDSKR-12-22W-5CCT-WH-0/10V is a 12" Slim-Line surface-mount disk light intended for general lighting in residential and commercial spaces. The edge-lit design provides even, low-glare illumination suitable for offices, multifamily, corridors, retail, healthcare and hospitality applications.

• Form factor: 12" round surface-mount disk with standard white trim
• Typical uses: general surface-mounted lighting in residential and commercial settings

Light output and color performance

This model delivers 1,450 lumens at 22W and offers five field-selectable color temperatures—2700K, 3000K, 3500K, 4000K and 5000K—allowing adjustment to project needs.

Color rendering is specified as CRI >90 with R9 >50; the frosted edge-lit lens provides broad distribution over the stated beam angle.

• Lumen output: 1,450 lm
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• Color metrics: CRI >90 • R9 >50
• Beam/Distribution: edge-lit, approximately 110°

Voltage, dimming and driver details

The fixture operates on 120–277V at 50/60Hz and supports 0–10V dimming. Series documentation notes AC technology for a slim installation and lists driver characteristics for the series.

• Input voltage: 120–277V, 50/60Hz
• Dimming: 0–10V dimmable (other dimming options available on separate models/spec sheets)
• Driver notes (series): isolated driver, THD <15% (±5%), PF >0.9

Mounting, trims and physical details

The Slim-Line is a low-profile surface-mount disk with standard white finish and included white round trim. A range of optional trims, recessed can converters, surface-mount pancake enclosures, stem mounts and emergency backup units are offered as separate accessories.

• Size: 12" diameter
• Standard finish: white (other finishes offered as custom options)
• Accessories sold separately: 12" trims, recessed can converters, surface-mount pancake housings, stem mounts, emergency backup units
• Lens: frosted, non-yellowing

Certifications, ratings and warranty

This model is ETL Listed for the U.S. and Canada, Energy Star certified, and CA Title 24 JA8-2022 listed. It is rated for wet locations, has an operating temperature range listed for the series, and carries a 5-year limited warranty.

• Listings: ETL (US & CA), Energy Star, CA Title 24 JA8-2022
• Environmental rating: Wet Location
• Operating temperature (series): -40° to 114°F
• Life: L70 average 50,000 hours • 5-year limited warranty

Before You Order

Confirm the model number, required finish and any accessories (trims, recessed converters, emergency backup or stem mounts) before ordering.

• Optional trims and mounting accessories are sold separately.
• Verify dimming system compatibility with 0–10V controls; consult documentation for tested compatible dimmers if needed.
