EnVision LED-SL-PNL-6SQ-15W-5CCT-FR-WH – FIRE RATED
Description
Product Overview

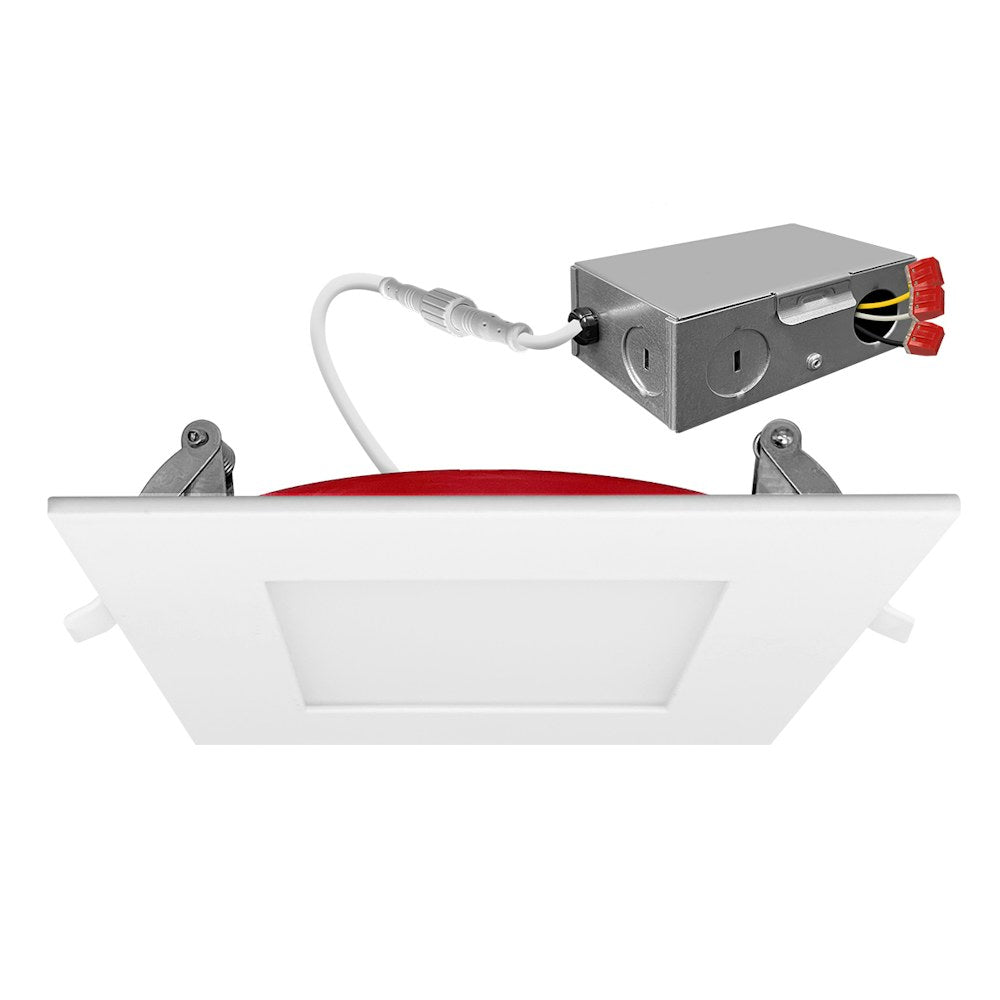

The EnVision LED-SL-PNL-6SQ-15W-5CCT-FR-WH is a 6" fire-rated slim panel downlight delivering 15W and 1150 lumens with five selectable color temperatures (2700K–5000K).
It is a canless design intended for shallow ceilings, includes a white trim, a 110° beam angle, high color fidelity (CRI >90, R9 >50), and operates on 120V with Triac/ELV dimming support.
Key Features
- 15W nominal power, 1150 lumens
- Selectable 5-CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- 2-hour fire rating (Fire Rated series)
- CRI >90 with R9 >50 and 3-step MacAdam
- Wet-location rated; Energy Star certified
- Triac dimmable/ELV compatible (manufacturer lists dimming to 5%); built-in 2.5 kV surge protector; flicker free
- Edge-lit acrylic frosted lens and metal housing; average L70 life 50,000 hours
- Pre-wired external junction box (3 in / 3 out) and canless snap-spring mounting for ceilings 1/2"–1.5" thick
Function and intended use
This 6" EnVision slim panel is a fire-rated, canless recessed downlight suitable for general recessed lighting in residential, multifamily, commercial and institutional settings as listed by the manufacturer.
- Manufacturer-listed applications include: residential & multifamily, office and meeting rooms, education, healthcare, retail and hospitality.
- Canless design mounts with spring clips into ceilings 1/2" to 1.5" thick and requires 1.5" clearance above the fixture.
Light output and optical performance
The fixture produces 1150 lumens from a 15W LED module and uses edge‑lit technology to reduce glare and provide even light distribution.
- Selectable 5-CCT: 2700K, 3000K, 3500K, 4000K, 5000K (field selectable).
- Beam angle: 110° with an acrylic frosted non‑yellowing lens.
- Color rendering: CRI >90 and R9 >50; 3-step MacAdam ellipses for color consistency.
Electrical, dimming and surge protection
The unit is designed for 120V line voltage and includes driver features intended to support dimming and protect against surges.
- Input voltage: 120V.
- Dimming: Triac dimmable and ELV compatible; manufacturer lists dimming to 5%.
- Built-in 2.5 kV surge protector and flicker-free driver.
Mounting, dimensions and installation notes
The slim panel installs without a recessed can for remodel or new-construction applications and includes a pre-wired external junction box.
- Required clearance above fixture: 1.5" (shallow ceiling fit).
- 6" model cut-out dimension: 6-1/4".
- Tension/snap spring clips mount into 1/2"–1.5" thick ceilings; fixture can be removed from below the ceiling for service.
- Optional accessories available (sold separately) include new construction plates, rough-in plates, extension cables and field-installable emergency backup units.
Certifications and warranty
The product carries multiple safety and energy listings and is covered by a manufacturer limited warranty.
- ETL Listed for USA and Canada; Energy Star certified; CA Title 24 JA8-2022 (CEC) listed.
- Complies with listed fire standards cited by the manufacturer (UL 263, ASTM E119, CAN ULC S101).
- IC rated and ASTM-E283 air-tight; wet-location rated.
- Manufacturer 5-year limited warranty; average L70 life of 50,000 hours.
Before You Order
Verify the model number and required quantity before ordering and confirm any accessory needs.
- This fixture is a canless slim panel and does not fit into a standard recessed can.
- Optional trims, rough-in/new-construction plates, extension cables and field-installable emergency backup units are available separately.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-SL-PNL-6SQ-15W-5CCT-FR-WH – FIRE RATED. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| SKU | LED-SL-PNL-6SQ-15W-5CCT-FR-WH |
| Type | LED Recessed Downlight (Slim Panel), Fire Rated |
| Wattage | 15W |
| Lumens | 1150 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| Voltage | 120V |
| Dimming | Triac / ELV dimmable (manufacturer lists dimming to 5%) |
| CRI | >90 (R9 >50) |
| Beam Angle | 110° |
| Lens | Acrylic frosted, non-yellowing |
| Finish | White (standard) |
| Size | 6" (cut-out 6-1/4") |
| Mounting Type | Canless snap spring; fits 1/2"–1.5" ceiling thickness |
| Operating Temperature | -40° to 114° F |
| Rated Life | 50,000 hours |
| IP / Environmental Rating | Wet location rated; IC rated; air-tight (ASTM-E283) |
| Certifications | ETL, Energy Star, JA8 (Title 24), FCC |
| Warranty | 5-year limited warranty |
| UPC | 819715025129 |
