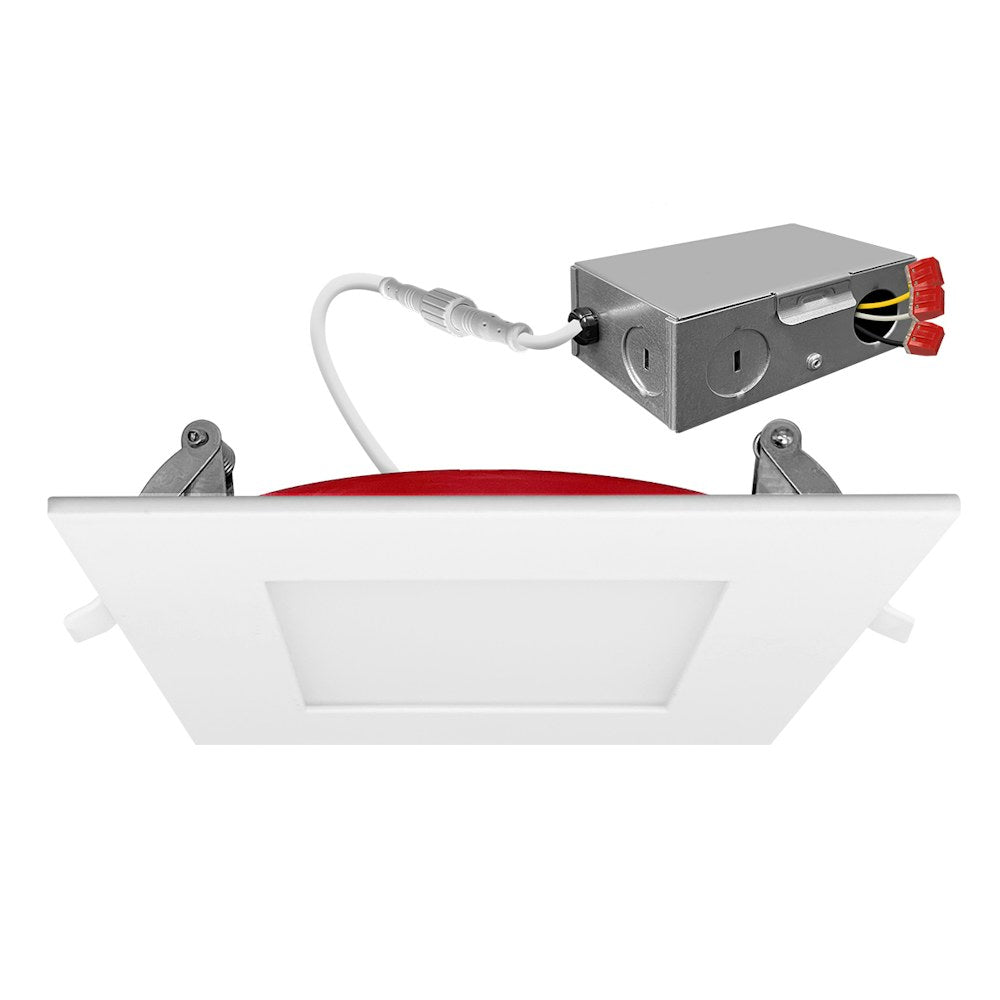

EnVision LED-SL-PNL-4SQ-12W-5CCT-FR-WH – FIRE RATED
Description
Product Overview
The EnVision LED-SL-PNL-4SQ-12W-5CCT-FR-WH is a 4" canless, fire-rated slim panel intended for recessed lighting where a shallow-profile, fire-rated fixture is required. It produces 840 lumens from 12W and offers five selectable color temperatures (2700K–5000K).
Designed for shallow ceilings and remodel or new-construction applications (optional plates available), the fixture features edge-lit optics for even light distribution, a 110° beam, CRI >90 with R9 >50, and a frosted acrylic lens.
Key Features
- 12W output, 840 lumens
- Selectable 5-CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI >90 with R9 >50 and 3-step MacAdam ellipses
- 2-hour fire rated
- Wet location rated
- Edge-lit frosted acrylic lens with 110° beam angle
- 120V input; Triac/ELV dimmable (manufacturer lists dimming to 5%) and built-in 2.5 kV surge protector
- Average life L70: 50,000 hours; operating temperature -40° to 114°F
- ETL Listed for USA/CA, JA8-2022 CEC listed, Energy Star certified (per manufacturer), 5-year limited warranty
What this fixture is for
Direct-answer: The EnVision 4" FIRE RATED slim panel is a canless recessed downlight intended for general recessed lighting in residential, multifamily, and commercial interiors where a shallow-profile, fire-rated fixture is required.
Manufacturer-listed applications include general recessed lighting, residential & multifamily, office and meeting rooms, education, healthcare, retail, and hospitality.
- Canless design suitable for remodel installations and new construction with optional plates
- Edge-lit design reduces glare and provides even illumination
- Standard white trim included; optional trims and accessories available
Light output & color performance
Direct-answer: This model produces 840 lumens from a 12W unit and offers five selectable CCT settings (2700K, 3000K, 3500K, 4000K, 5000K).
It uses SMD 2835 LEDs with CRI >90 and R9 >50; the frosted acrylic lens provides uniform light distribution and a 110° beam spread.
- Output: 12W • 840 lm
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: >90 (R9 >50)
- Beam angle: 110°
- Rated life: L70 at 50,000 hours
Electrical & dimming requirements
Direct-answer: The fixture operates on 120V and is Triac/ELV dimmable; the manufacturer notes dimming down to 5% and that the driver includes a 2.5 kV surge protector and is specified as flicker free.
The exact dimmer compatibility can vary—use a dimmer rated for LED loads and follow the dimmer manufacturer's guidance for best results.
- Input voltage: 120V
- Dimming: Triac / ELV (manufacturer lists dimmable to 5%)
- Built-in surge protection: 2.5 kV
- Flicker free (manufacturer specification)
Mounting & installation overview
Direct-answer: This canless slim panel mounts with spring clips into ceilings 1/2" to 1.5" thick and requires approximately 1.5" clearance above the ceiling for installation, making it suitable for shallow plenums.
The fixture includes a pre-wired junction box with knockouts and can be removed from below the ceiling for service. It does not fit into a traditional recessed can.
- Required cutout for 4": 4-1/4"
- Ceiling thickness supported: 1/2" to 1.5"
- Shallow depth required above ceiling: 1.5"
- Pre-wired external junction box with 3 in / 3 out knockouts
- Optional new-construction and rough-in plates available (accessories sold separately)
Certifications and warranty
Direct-answer: The LED-SL-PNL-4SQ-12W-5CCT-FR-WH is ETL Listed for the USA and Canada, is listed for CA Title 24 JA8-2022, is IC rated and air-tight, and the manufacturer lists a 5-year limited warranty.
Manufacturer documentation also references compliance with fire and safety standards (UL 263, ASTM E119, CAN ULC S101) and additional certifications listed by the maker.
- ETL Listed (USA/CA)
- CA Title 24 JA8-2022 listed
- IC rated and air-tight (ASTM-E283 noted by manufacturer)
- References compliance with UL 263, ASTM E119, CAN ULC S101
- 5-year limited warranty
Before You Order
Confirm the model, desired finish, and any accessories (trim, new-construction or rough-in plates, or emergency backup) before ordering.
- This fixture is canless and does not fit into a standard recessed can—verify ceiling thickness (1/2"–1.5") and approximately 1.5" clearance above the ceiling.
- If emergency backup or specific trim colors are required, order the corresponding accessories separately.
- Confirm dimmer compatibility for Triac/ELV dimming to ensure the intended dimming performance.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-SL-PNL-4SQ-12W-5CCT-FR-WH – FIRE RATED. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| SKU | LED-SL-PNL-4SQ-12W-5CCT-FR-WH |
| Type | LED Downlight (Canless Slim Panel) |
| Wattage | 12W |
| Lumens | 840 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >90 (R9 >50) |
| Beam Angle | 110° |
| Voltage | 120V |
| Dimming | Triac / ELV (manufacturer lists dimmable to 5%) |
| IP / Environmental Rating | Wet location rated |
| Fire Rating | 2-hour fire rated |
| Operating Temperature | -40° to 114° F |
| Lens | Frosted acrylic |
| Size | 4" (cutout 4-1/4") |
| Finish | White (standard trim included; other finishes available from manufacturer) |
| Certifications / Warranty | ETL Listed (USA/CA); JA8-2022 CEC listed; Energy Star (per manufacturer); 5-year limited warranty |
| Average Life | L70 50,000 hours |
| UPC | 819715025143 |
