EnVision LED-RST-8FT-3M60W-5CCT-SR – 8' Strip

Product Overview

The EnVision LED-RST-8FT-3M60W-5CCT-SR is an 8 ft LED strip light with selectable wattage and color temperature. It operates on 120-277V and is described for utility and storage rooms, corridors, back-of-house areas and general commercial spaces.

Finish options are listed under two SKUs: LED-RST-8FT-3M60W-5CCT-SR in silver and LED-RST-8FT-3M60W-5CCT-SR-BL in black.

Key Features

• Selectable output: 60W, 50W or 40W, corresponding to 7,800, 6,500 or 5,200 lumens
• Five selectable CCT settings across a 3000K-6500K range
• 120-277V operation and 0-10V dimming
• 130° beam angle and CRI greater than 80
• Damp-location rating; UL/DLC listed
• Silver and black finish options; box quantity of six

Selectable Wattage and CCT

The LED-RST-8FT-3M60W-5CCT-SR has three selectable wattage settings and five selectable CCT settings. Its stated output is 7,800 lumens at 60W, 6,500 lumens at 50W and 5,200 lumens at 40W. The CCT range is 3000K-6500K.

• Wattage: 60W, 50W or 40W
• Lumen output: 7,800, 6,500 or 5,200, respectively
• Color temperature: five settings across 3000K-6500K

Voltage and Dimming

This strip light is rated for 120-277V operation and uses 0-10V dimming. Its listed beam angle is 130°, and its color rendering specification is CRI greater than 80.

Applications and Damp-Location Rating

The product is described for utility and storage rooms, corridors, back-of-house areas and general commercial spaces. It has a damp-location rating; confirm that the intended location suits that rating.

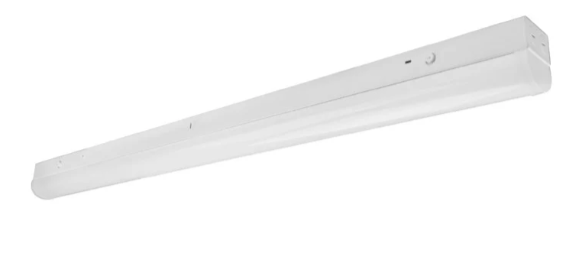

Finish Options and SKUs

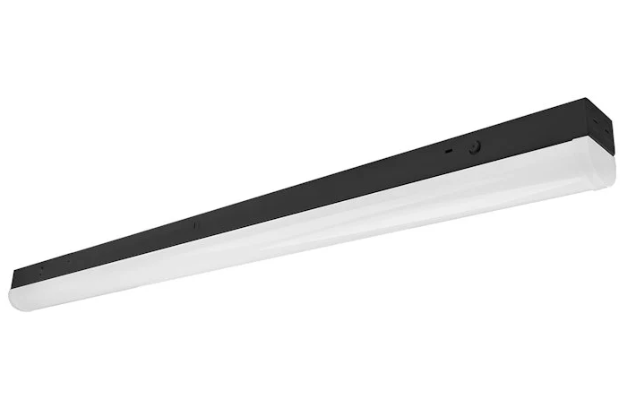

The silver finish is associated with SKU LED-RST-8FT-3M60W-5CCT-SR, and the black finish with SKU LED-RST-8FT-3M60W-5CCT-SR-BL. The listed box quantity is six.

Before You Order

Confirm the required finish and SKU, and check that the 8 ft fixture length suits the intended run. Set the wattage and CCT switches before final mounting.
