EnVision LED-RST-8FT-3M60W-4CCT-EMB – 8' Strip

Product Overview

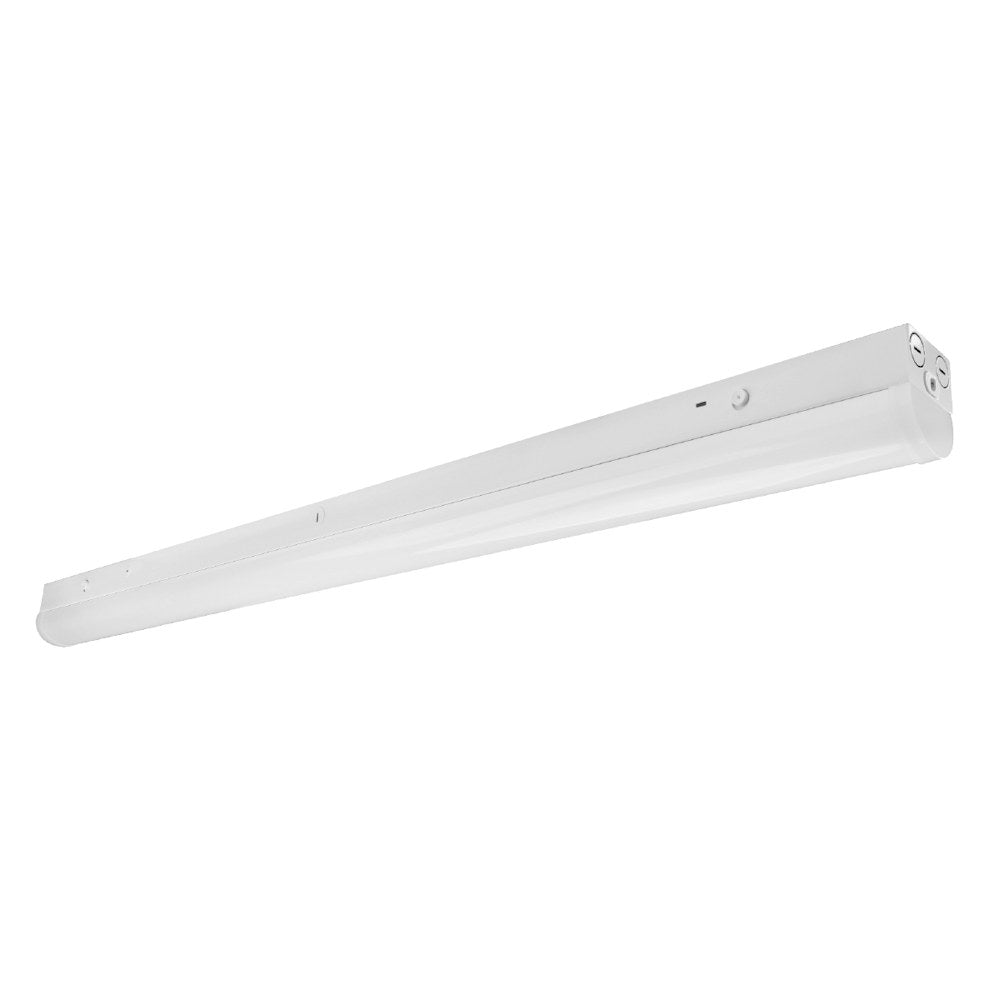

The EnVision LED-RST-8FT-3M60W-4CCT-EMB is an 8-foot LED strip light with field-selectable wattage and color temperature. It operates on 120-277V and is rated for damp locations.

Select 60W, 50W or 40W output, corresponding to 7,800, 6,500 or 5,200 lumens, respectively. The fixture also has four selectable color temperatures within the 3000K-5000K range.

Key Features

• Selectable 60W, 50W or 40W output with corresponding lumen outputs of 7,800, 6,500 or 5,200
• Four selectable color temperatures within the 3000K-5000K range
• 120-277V input and 0-10V dimming
• 130° beam angle and CRI greater than 80
• Damp-location rating, white finish, UL and DLC listings, and a 5-year warranty

Selectable Wattage and Color Temperature

This EnVision strip light has three selectable wattage settings and four selectable color temperatures. Its lumen output corresponds to the selected wattage.

• 60W: 7,800 lumens
• 50W: 6,500 lumens
• 40W: 5,200 lumens
• Four selectable CCTs within 3000K-5000K

Voltage and Dimming

The fixture operates on 120-277V and supports 0-10V dimming. Its listed beam angle is 130°, and its CRI is greater than 80.

Applications and Damp-Location Rating

The product is described for stairwells, garages, utility and storage rooms, corridors, and back-of-house areas. It is rated for damp locations.

Configuration Before Mounting

Set the wattage and CCT switches before final mounting. Confirm that the 8-foot fixture length and mounting surface suit the intended run.

Before You Order

Confirm that the 8-foot fixture length and mounting surface suit the intended run, and that the location is appropriate for a damp-location-rated fixture.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-8FT-3M60W-4CCT-EMB – 8' Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
