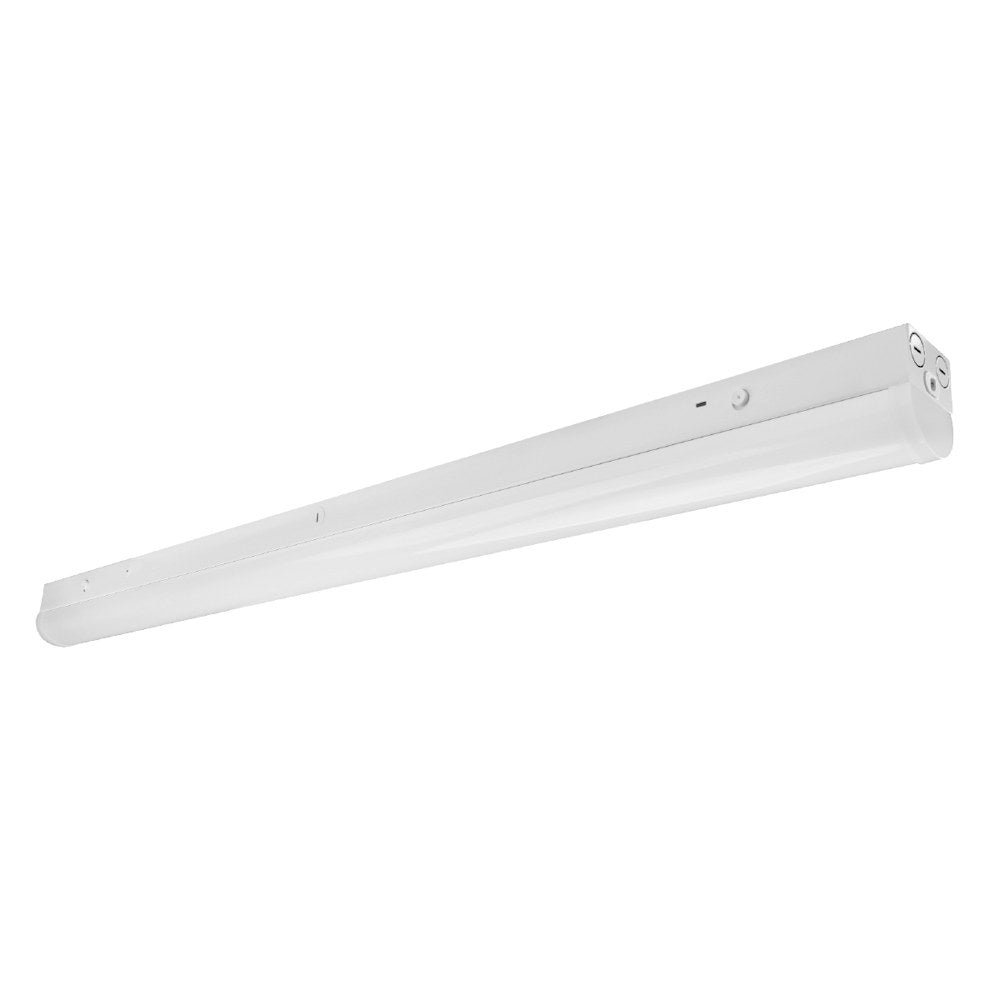

EnVision LED-RST-8FT-3M60W-4CCT-BMS – 8' Strip

Product Overview

The EnVision LED-RST-8FT-3M60W-4CCT-BMS is an 8-foot commercial LED strip with field-selectable wattage (60/50/40W) and four CCT options (3000K–5000K).

At the highest setting the fixture provides up to 7,800 lumens, accepts 120–277V, supports 0–10V dimming, and is rated for damp locations. The product is listed to UL and DLC and carries a 5-year warranty.

Key Features

• Field-selectable power: 60 / 50 / 40 W
• Field-selectable CCT: 3000K, 3500K, 4000K, 5000K (4 CCT)
• Lumen outputs: 7,800 / 6,500 / 5,200 (corresponding to 60/50/40W)
• Input voltage: 120–277V
• Dimming: 0–10V
• Beam angle: 130°
• Color rendering: CRI > 80
• Damp-location rated, white finish; UL and DLC listed; 5-year warranty

Function and intended use

This 8-foot strip is intended for general commercial lighting where a configurable fixture can cover multiple lumen and color temperature needs.

The product's damp-location rating means it is suitable for spaces subject to moisture but not for direct water immersion.

• Applications: general commercial spaces, stairwells, garages, storage and utility rooms
• White finish for unobtrusive ceiling or surface mounting

Performance and light output

Wattage and CCT are selected at the fixture so one SKU can serve different layout and lumen targets. The listed lumen outputs match the respective wattage settings.

The fixture reports a 130° beam angle for broad area illumination.

• 60W → 7,800 lumens
• 50W → 6,500 lumens
• 40W → 5,200 lumens
• Field-selectable CCT: 3000K, 3500K, 4000K, 5000K
• CRI > 80

Electrical and controls

The fixture accepts 120–277V input and supports 0–10V dimming. Onboard switches set wattage and CCT prior to final mounting.

• Input voltage: 120–277V
• Dimming: 0–10V analog control
• Configure wattage and CCT at the fixture before finishing installation

Mounting and installation notes

Confirm the 8-foot length fits the intended run and that the mounting surface is appropriate for a damp-location luminaire. Set wattage and CCT switches before final mounting.

If pursuing utility rebates, verify the fixture's DLC listing against your rebate program's Qualified Products List (QPL).

• Set wattage and CCT switches during installation
• Verify run length and mounting surface suitability
• Confirm damp-location rating is appropriate for the installation environment

Before You Order

Verify the 8-foot length and damp-location rating are appropriate for your installation.

• Decide the desired wattage and CCT before final mounting so you can set the fixture switches.
• Check compatibility with your 0–10V dimming control if dimming will be used.
• If seeking rebates, confirm DLC listing against your rebate program's QPL.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-8FT-3M60W-4CCT-BMS – 8' Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
