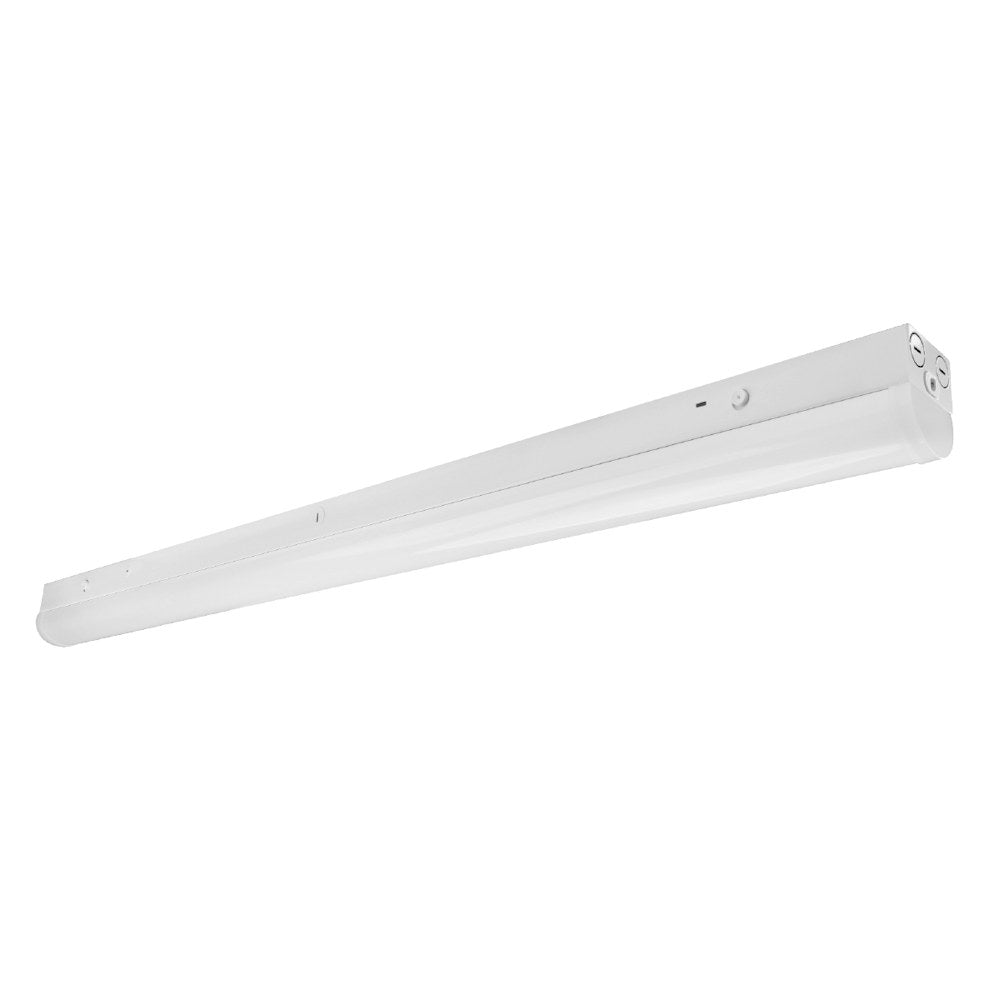

EnVision LED-RST-8FT-3M60W-4CCT – 8' Strip

Product Overview

The EnVision LED-RST-8FT-3M60W-4CCT is an 8-foot commercial LED strip with field-selectable wattage (60/50/40W) and selectable color temperature (3000K–5000K, 4 CCT). At its highest output it is rated up to 7,800 lumens and operates on 120–277V.

The fixture provides 0–10V dimming compatibility, a 130° beam for broad coverage, CRI >80, a white finish, and a damp-location rating. It is UL and DLC listed and carries a 5-year warranty.

Key Features

• Field-selectable wattage: 60W / 50W / 40W (set at install)
• Selectable CCT: 3000K, 3500K, 4000K, 5000K (4 CCT)
• Lumen outputs: 7,800 / 6,500 / 5,200 (by selected wattage)
• 130° beam angle for wide, even coverage
• 0–10V dimming compatibility
• CRI >80; white finish; damp-location rated
• UL listed, DLC listed; 5-year warranty
• Packaged 6 per box; UPC 819715024559

What this fixture is for

This linear 8-foot strip is intended for commercial and utility spaces that require a damp-location rated fixture and consistent, spec-driven illumination.

• Typical placements: corridors, back-of-house circulation, stairwells, garages, storage or maintenance areas
• White finish for a neutral appearance

Performance and output

Lumen output is determined by the field-selected wattage. The fixture provides a wide distribution with a 130° beam angle and maintains color rendering above CRI 80.

• Selectable lumen outputs: 7,800 lm (60W), 6,500 lm (50W), 5,200 lm (40W)
• Beam angle: 130°
• Color rendering: CRI >80

Electrical and controls

The fixture accepts 120–277V input and supports 0–10V dimming.

• Voltage: 120–277V
• Dimming: 0–10V

Selectable configurations

One SKU covers multiple output and color-temperature needs via field-selectable switches on the fixture. Set the desired wattage and CCT during installation.

• Wattage options: 60W, 50W, 40W
• CCT options: 3000K, 3500K, 4000K, 5000K

Environment rating and certifications

The fixture is listed for damp locations and is UL and DLC listed. A 5-year warranty is provided.

• Environment: Damp location rated
• Certifications: UL listed, DLC listed
• Warranty: 5 years

Ordering and installation notes

Confirm model, quantity and mounting conditions before ordering. Set wattage and CCT switches prior to final mounting and verify the chosen location is suitable for a damp-rated fixture. If pursuing rebates, confirm DLC qualification with the program administrator.

• Pack quantity: 6 per box
• UPC: 819715024559
• Verify fixture length and mounting surface compatibility

Before You Order

Confirm the model, required quantity and that an 8-foot damp-location strip suits the intended mounting surface. Set the desired wattage and CCT on the fixture before final mounting.

• Verify 120–277V supply and 0–10V dimming compatibility with site controls.
• This product is rated for damp locations; confirm the installation site is appropriate.
• If pursuing utility rebates, confirm DLC qualification with your program before ordering.
