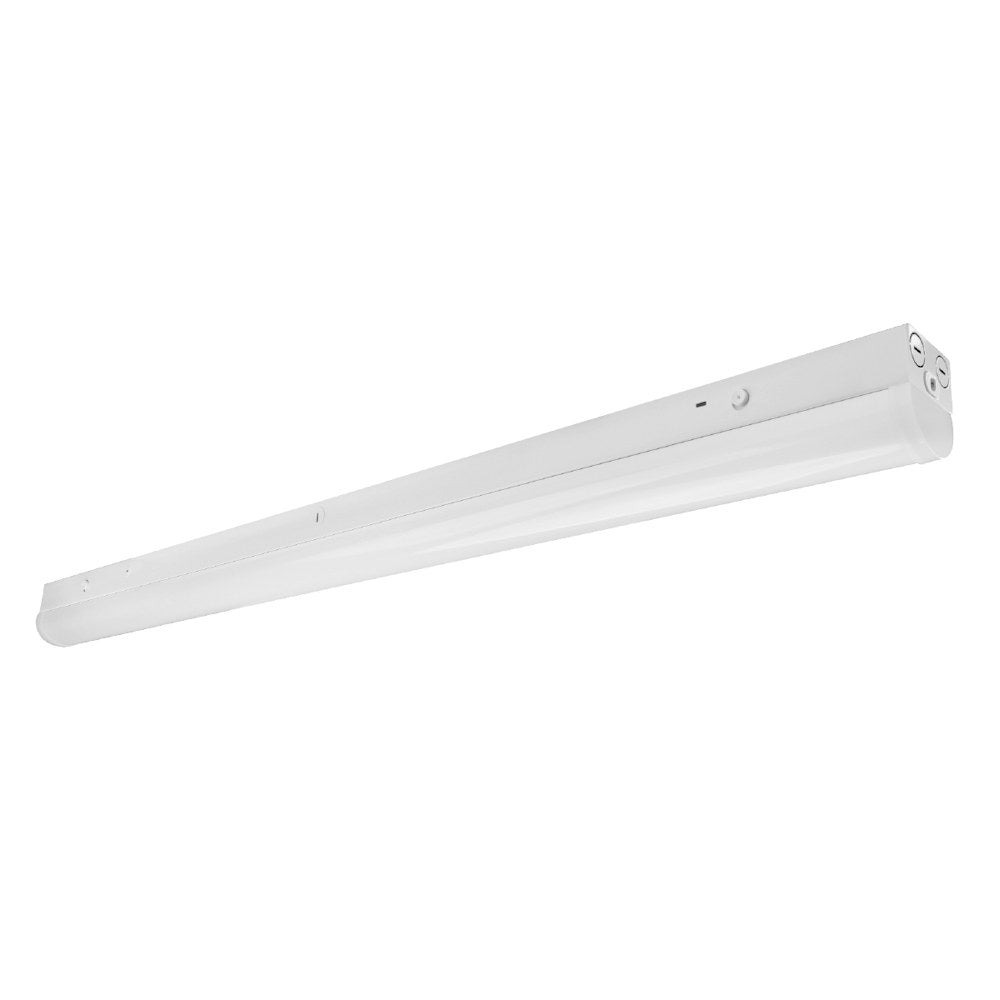

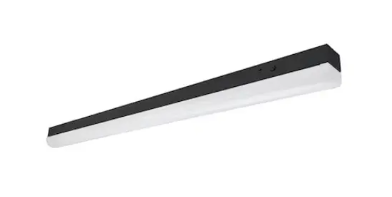

EnVision LED-RST-8FT-3M100W-4CCT-BL – 8' Strip

Product Overview

The EnVision LED-RST-8FT-3M100W-4CCT-BL is an 8-foot commercial LED strip intended for utility, storage and back-of-house areas. One SKU provides field-selectable wattage and CCT to simplify specification and stocking.

Wattage is selectable at install (100 / 85 / 70W) with corresponding lumen outputs (13,000 / 11,050 / 9,100). The fixture operates on 120–277V, supports 0–10V dimming, and is rated for Damp Locations.

Key Features

• Field-selectable wattage: 100 / 85 / 70W (set at install)
• Lumen outputs: 13,000 / 11,050 / 9,100 corresponding to selected wattage
• Field-selectable 4-CCT: 3000K, 3500K, 4000K, 5000K
• 0–10V dimming
• 130° beam angle
• CRI > 80
• Damp Location rated, black finish
• UL and DLC listed; 5-year warranty

What this fixture is for

The LED-RST-8FT-3M100W-4CCT-BL is intended for interior commercial spaces such as utility rooms, storage areas, corridors and back-of-house spaces where even, durable illumination is needed.

• Designed for interior, Damp Location-rated environments
• Single SKU supports multiple lumen outputs and CCTs to reduce stocking complexity

Light output and selectable performance

Lumen output and power are selected at install to match task and energy requirements.

• Selectable wattage: 100W, 85W, 70W
• Lumen outputs by setting: 13,000 lm (100W), 11,050 lm (85W), 9,100 lm (70W)
• 130° beam angle for broad area coverage
• Color rendering: CRI > 80

Dimming and color temperature options

The fixture provides standard 0–10V dimming and field-selectable color temperatures set on the unit prior to final installation.

• Field-selectable 4-CCT: 3000K, 3500K, 4000K, 5000K (configured on the fixture)
• 0–10V analog dimming

Voltage and electrical requirements

The fixture accepts a wide commercial input voltage range to suit typical building power.

• Input voltage: 120–277V
• Wattage and lumen output are determined by internal settings on the fixture

Mounting and installation considerations

Plan mounting and final configuration before installation because wattage and CCT are set on the fixture prior to final mounting.

• Confirm the 8-foot length and mounting surface are appropriate for the run
• Set wattage and CCT switches on the fixture before final mounting
• Verify the installation location is appropriate for a Damp Location-rated product
• If pursuing utility rebates, confirm DLC listing and program eligibility with the rebate administrator

Before You Order

Confirm model number and required quantity before ordering. Wattage and CCT are configured on the fixture at install.

• Verify the 8-foot length fits the intended run and mounting surface
• Confirm the installation location is appropriate for a Damp Location-rated fixture
• If seeking rebates, check DLC listing eligibility with the program administrator

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-8FT-3M100W-4CCT-BL – 8' Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
