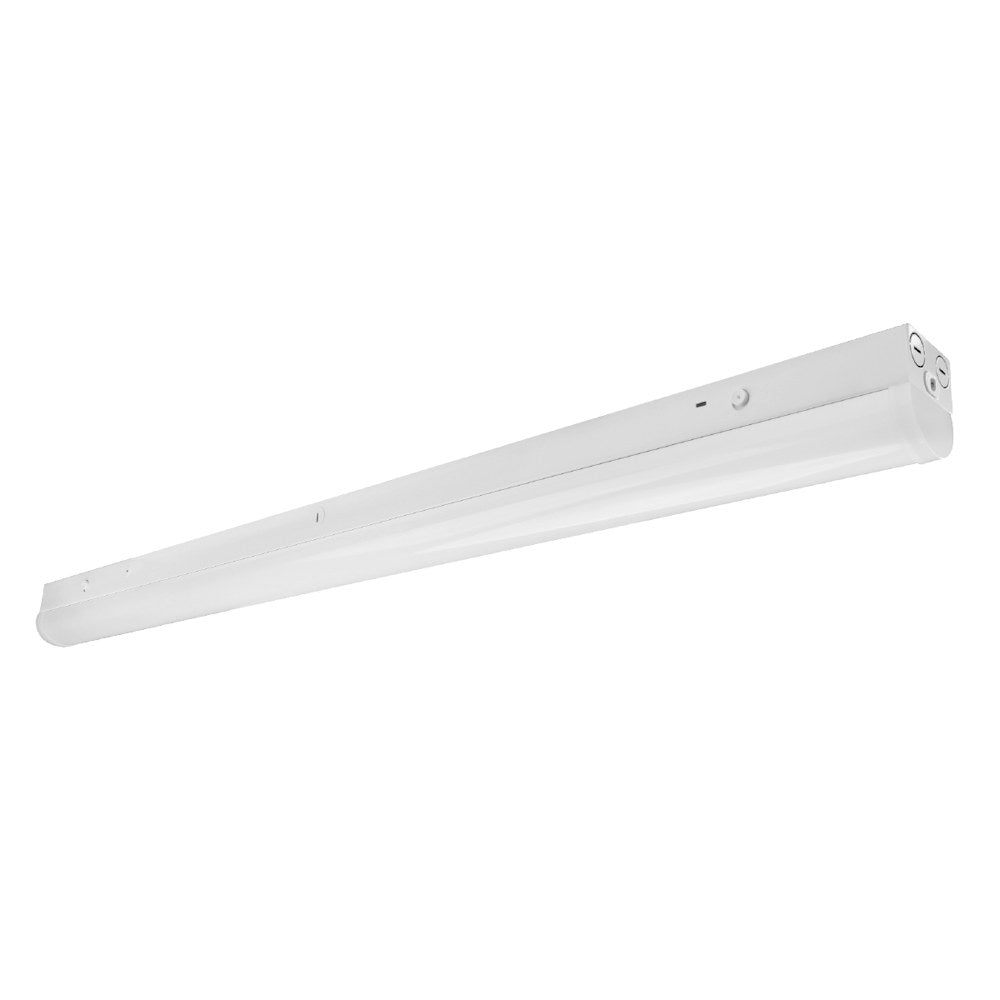

EnVision LED-RST-4FT-3M80W-5CCT-SR – 4' Strip

Product Overview

The EnVision LED-RST-4FT-3M80W-5CCT-SR is a 4-foot LED strip light with selectable wattage and color temperature. Its three output settings pair with lumen outputs of 10,400, 8,450 or 6,500 lumens.

Designed for 120–277V operation, this white-finish fixture has 0–10V dimming, a 130° beam angle and a damp-location rating. Listed applications include stairwells, garages, utility and storage rooms, corridors and back-of-house spaces.

Key Features

• Selectable power: 80W, 65W or 50W, with corresponding outputs of 10,400, 8,450 or 6,500 lumens
• Five selectable color temperatures across the 3000K–6500K range
• 0–10V dimming and 130° beam angle
• 120–277V operation; rated for damp locations
• White finish; UL and DLC listed; 5-year warranty
• Packaged six per box

Select Wattage and Color Temperature

This 4-foot EnVision strip light offers three selectable wattages: 80W, 65W and 50W. The listed lumen outputs correspond to those settings: 10,400 lumens at 80W, 8,450 lumens at 65W and 6,500 lumens at 50W.

The fixture also has five selectable color temperatures within a 3000K–6500K range. Set the wattage and CCT switches before final mounting.

Voltage, Dimming and Light Distribution

The LED-RST-4FT-3M80W-5CCT-SR operates on 120–277V and supports 0–10V dimming. Its listed beam angle is 130°, and its color rendering specification is CRI greater than 80.

Applications and Damp-Location Rating

Listed applications include stairwells, garages, utility and storage rooms, corridors, and back-of-house areas. The fixture is rated for damp locations; confirm that the intended location suits that rating.

Listings and Warranty

This fixture is UL and DLC listed and carries a 5-year warranty.

Before You Order

Confirm the fixture length and mounting surface suit the planned run. Set the wattage and CCT switches before final mounting.
