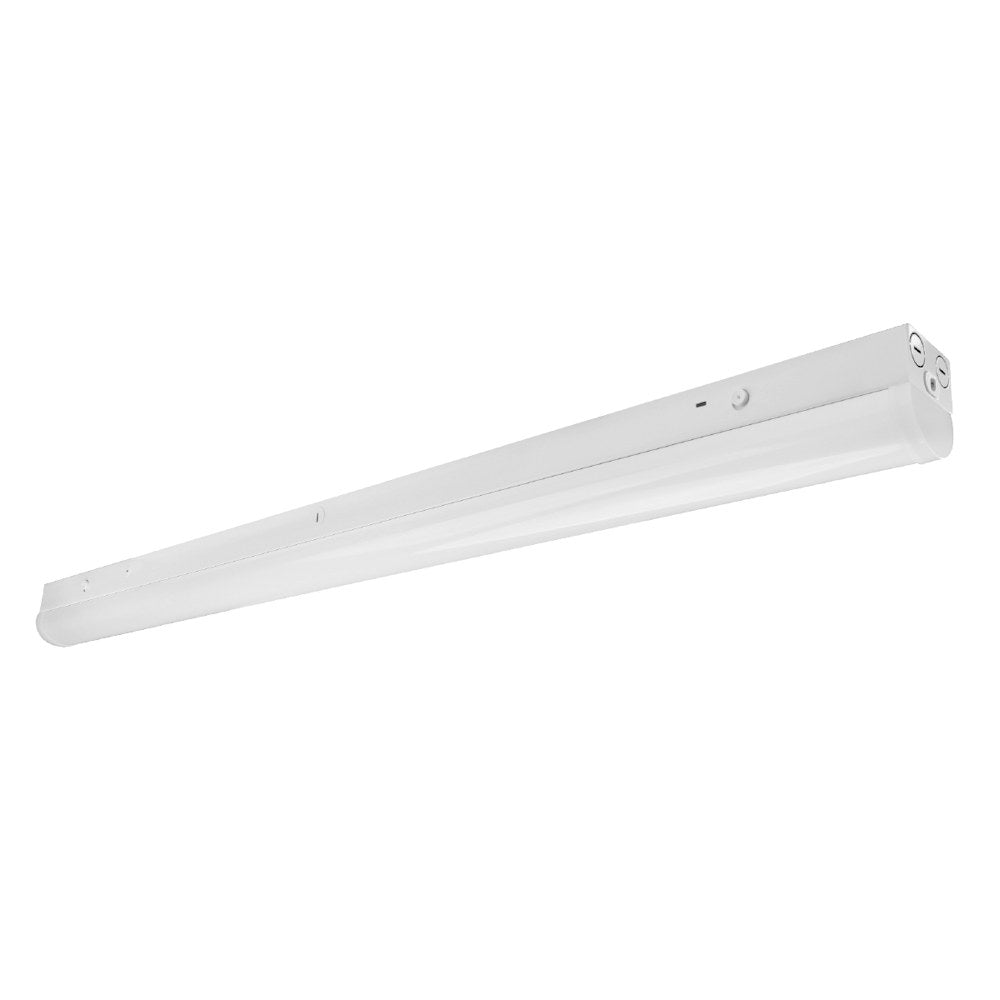

EnVision LED-RST-4FT-3M80W-4CCT-BMS-EMB – 2' Strip w/ Microwave Sensor + EMB

Product Overview

The EnVision LED-RST-4FT-3M80W-4CCT-BMS-EMB is an LED strip light identified with a microwave sensor and EMB. It has selectable wattage and color temperature, 0–10V dimming, and a 120–277V input range.

Selectable output settings provide 10,400, 8,450, or 6,500 lumens. The fixture has a white finish and is rated for damp locations.

Key Features

• Selectable wattage: 80W, 65W, or 50W
• Four selectable CCT settings from 3000K to 5000K
• Lumens: 10,400, 8,450, or 6,500, corresponding to the selectable wattage settings
• 0–10V dimming and 130° beam angle
• Microwave sensor and EMB identified for this model
• Damp-location rating; UL and DLC listed
• Five-year warranty; packaged six per box

Selectable Wattage, Lumens, and Color Temperature

This EnVision LED strip light has three selectable wattage and lumen settings: 80W at 10,400 lumens, 65W at 8,450 lumens, or 50W at 6,500 lumens. Its four selectable CCT settings span 3000K to 5000K.

Dimming and Beam Angle

The fixture is specified for 0–10V dimming and has a 130° beam angle. Its color rendering rating is CRI greater than 80.

Applications and Damp-Location Rating

Listed application areas include utility and storage rooms, corridors, back-of-house spaces, and general commercial spaces. The fixture is rated for damp locations.

Before You Order

Confirm that the fixture length and mounting surface suit the planned run.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-4FT-3M80W-4CCT-BMS-EMB – 2' Strip w/ Microwave Sensor + EMB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
