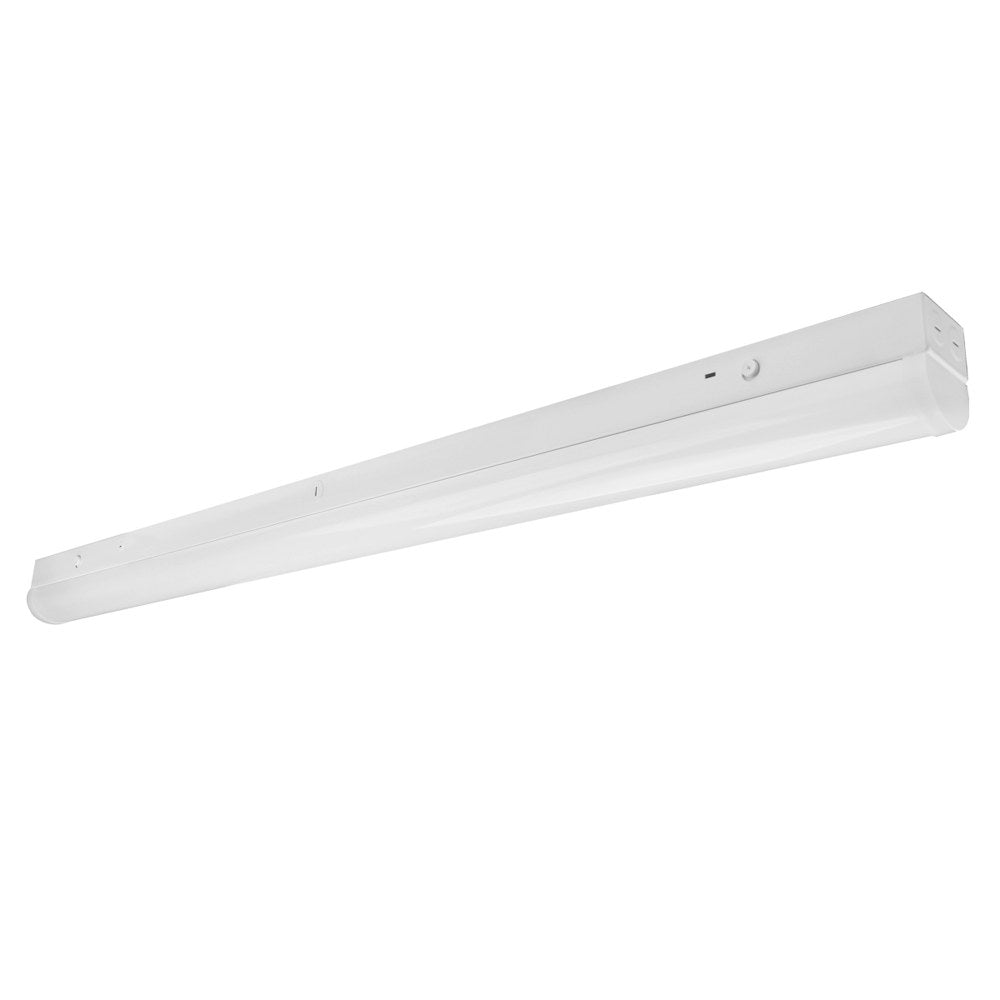

EnVision LED-RST-4FT-3M40W-4CCT-BMS-EMB – 2' Strip w/ Microwave Sensor + EMB

Product Overview

The EnVision LED-RST-4FT-3M40W-4CCT-BMS-EMB is an LED strip light identified with a microwave sensor and EMB. It has selectable wattage and color temperature, operates at 120–277V and supports 0–10V dimming.

Choose 40W, 30W or 20W output, with corresponding listed lumen levels of 5,200, 3,900 or 2,600. The four selectable CCT settings span 3000K–5000K.

Key Features

• Selectable output: 40W, 30W or 20W; corresponding output: 5,200, 3,900 or 2,600 lumens.
• Four selectable CCT settings spanning 3000K–5000K.
• Microwave sensor and EMB designation in the model identity.
• 120–277V voltage and 0–10V dimming.
• 130° beam angle, CRI >80 and damp-location rating.
• White finish, UL and DLC listings, and a stated 5-year warranty.

Selectable Wattage and Color Temperature

This EnVision strip light has three selectable wattage settings and four selectable CCT settings. The listed lumen output corresponds to the selected wattage.

• 40W: 5,200 lumens
• 30W: 3,900 lumens
• 20W: 2,600 lumens
• CCT: four selectable settings spanning 3000K–5000K

Voltage and Dimming

The fixture is rated for 120–277V and supports 0–10V dimming. Its listed beam angle is 130°, and its color rendering is CRI >80.

Microwave Sensor and EMB Designation

The product title identifies a microwave sensor and EMB. Additional operating details for these components are not specified.

Damp-Location Rating and Listings

The fixture is rated for damp locations and has UL and DLC listings. A 5-year warranty is stated.

• Finish: white

Listed Applications

Identified applications include utility and storage rooms, corridors, back-of-house areas and general commercial spaces.

Before You Order

The product title describes a 2' strip, while the model number includes “4FT.” Confirm the intended fixture length before ordering.

• Confirm that the damp-location rating suits the planned location.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-4FT-3M40W-4CCT-BMS-EMB – 2' Strip w/ Microwave Sensor + EMB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
