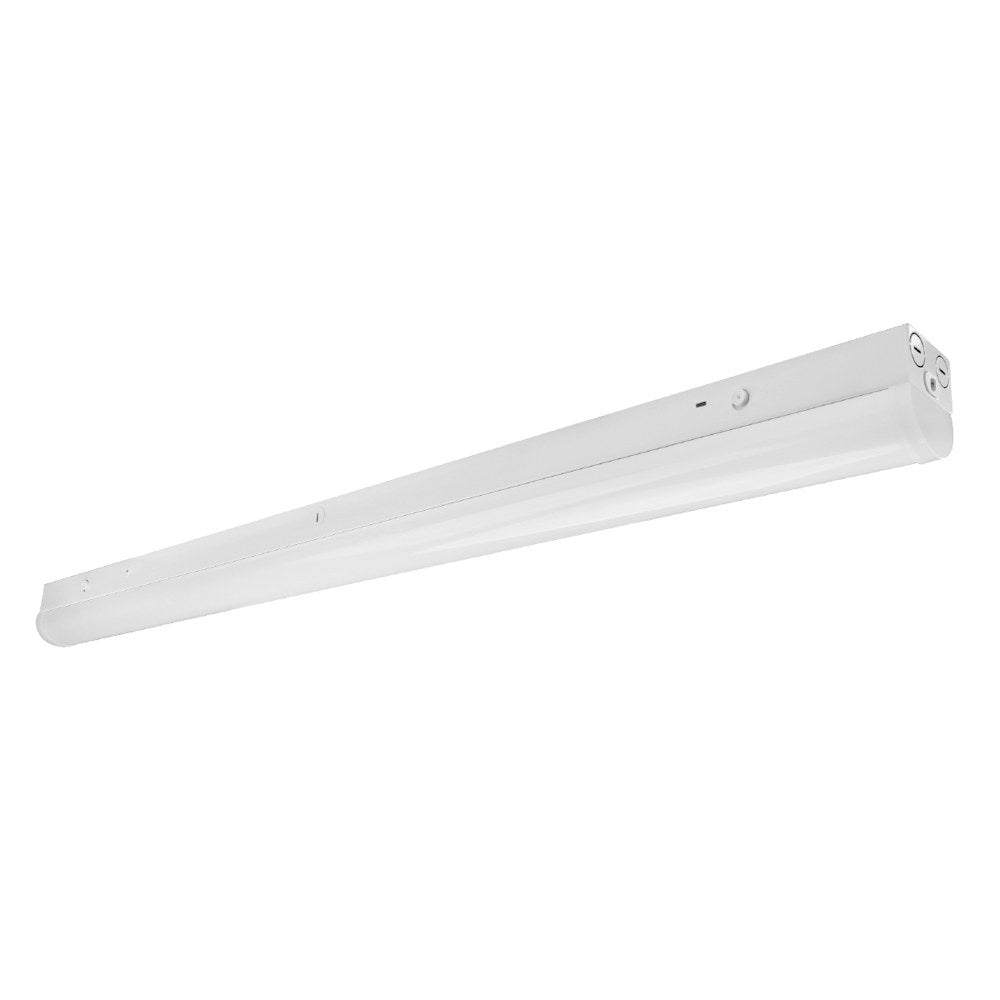

EnVision LED-RST-4FT-3M40W-4CCT-BMS – 2' Strip w/ Microwave Sensor

Product Overview

The EnVision LED-RST-4FT-3M40W-4CCT-BMS is an LED strip light identified in the product title as having a microwave sensor. It has selectable wattage and color temperature, with a listed input voltage of 120–277V.

Choose 20W, 30W or 40W output, corresponding to 2,600, 3,900 or 5,200 lumens. The fixture also offers four selectable CCTs across a 3000K–5000K range and supports 0–10V dimming.

Key Features

• Microwave sensor identified in the product title; sensor operation details are not specified.
• Selectable 20/30/40W output with corresponding output of 2,600/3,900/5,200 lumens.
• Four selectable CCTs within a 3000K–5000K range.
• 120–277V input, 0–10V dimming and 130° beam angle.
• Damp-location rating, white finish, CRI greater than 80, UL/DLC listing and a five-year warranty.

Selectable Wattage, Light Output and CCT

This strip light provides three selectable wattage and lumen-output combinations: 20W at 2,600 lumens, 30W at 3,900 lumens, or 40W at 5,200 lumens. Its color temperature is field-selectable across four CCT settings in the listed 3000K–5000K range.

The fixture has a 130° beam angle and a CRI greater than 80. The exact values for each of the four CCT settings are not specified.

Voltage and Dimming

The LED-RST-4FT-3M40W-4CCT-BMS is listed for 120–277V input and 0–10V dimming. Confirm that the electrical supply and dimming controls for the installation match these specifications.

Applications and Damp-Location Rating

Listed applications include general commercial spaces, stairwells, garages, utility rooms and storage rooms. The fixture is rated for damp locations; confirm that the rating is suitable for the intended installation.

Confirm Fixture Length Before Ordering

The product title describes a 2' strip, while the model number includes “4FT.” Confirm the physical fixture length before ordering and check that it suits the intended run and mounting surface.

Set the wattage and CCT switches before final mounting.

Before You Order

Confirm the physical fixture length because the product title says 2' while the model number includes 4FT.

• Check that the length and mounting surface suit the planned run.
• Verify that the damp-location rating suits the installation.
• Confirm that the available supply and dimming controls match the listed 120–277V input and 0–10V dimming.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-4FT-3M40W-4CCT-BMS – 2' Strip w/ Microwave Sensor. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
