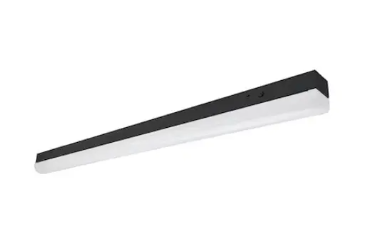

EnVision LED-RST-4FT-3M40W-4CCT-BL – 4' Strip

Product Overview

The EnVision LED-RST-4FT-3M40W-4CCT-BL is a 4-foot LED strip with field-selectable wattage (40/30/20W) and four CCT options (3000K–5000K). It provides up to 5,200 lumens at the highest output, operates on 120–277V, and supports 0–10V dimming.

The fixture has a black finish, is rated for Damp Locations, and is listed by UL and DLC. A 5-year warranty is indicated.

Key Features

• Field-selectable wattage: 40W, 30W, or 20W (set at installation)
• Field-selectable CCT: 3000K, 3500K, 4000K, 5000K
• Lumen output: 5,200 / 3,900 / 2,600 (for 40W / 30W / 20W settings)
• Input voltage: 120–277V
• Dimming: 0–10V
• Beam angle: 130°
• Color rendering: CRI > 80
• Damp Location rated; finish: Black
• Certifications: UL listed and DLC listed; 5-year warranty

What this fixture does

A linear 4' LED strip intended for general-area illumination in commercial and utility spaces. The unit provides selectable lumen output and color temperature options that are configured at the fixture during installation.

Light output and selectable power

Three field-selectable wattage settings allow one model to cover varying light-level requirements without ordering multiple SKUs.

• Wattage settings: 40W, 30W, 20W (set during installation)
• Lumen outputs: 5,200 lm (40W), 3,900 lm (30W), 2,600 lm (20W)

Dimming and color temperature control

Color temperature is chosen at the fixture using an integrated 4-CCT selection. The driver supports standard 0–10V dimming for integration with compatible controls.

• CCT options: 3000K, 3500K, 4000K, 5000K (field-selectable)
• Dimming: 0–10V

Mounting and installation notes

Set the desired wattage and CCT at the fixture before final mounting. Confirm the mounting surface and run length are compatible with a 4-foot strip and that the Damp Location rating fits the intended space.

• Set wattage and CCT switches before final installation
• Verify mounting surface and fixture length for your run
• Confirm Damp Location rating is appropriate for the installation area

Technical specifications and compliance

Key electrical and compliance details for specifying and procurement.

• Input voltage: 120–277V
• Beam angle: 130°
• CRI: >80
• Finish: Black
• Listings/ratings: UL listed, DLC listed, Damp Location
• Warranty: 5 years

Before You Order

Confirm model number and required quantity before ordering. Wattage and CCT are configured at the fixture during installation.

• Verify the mounting surface and fixture length suit a 4' strip
• Confirm the Damp Location rating is appropriate for the installation area
• If seeking utility rebates, verify the fixture's DLC listing against your program's qualified products list

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RST-4FT-3M40W-4CCT-BL – 4' Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
