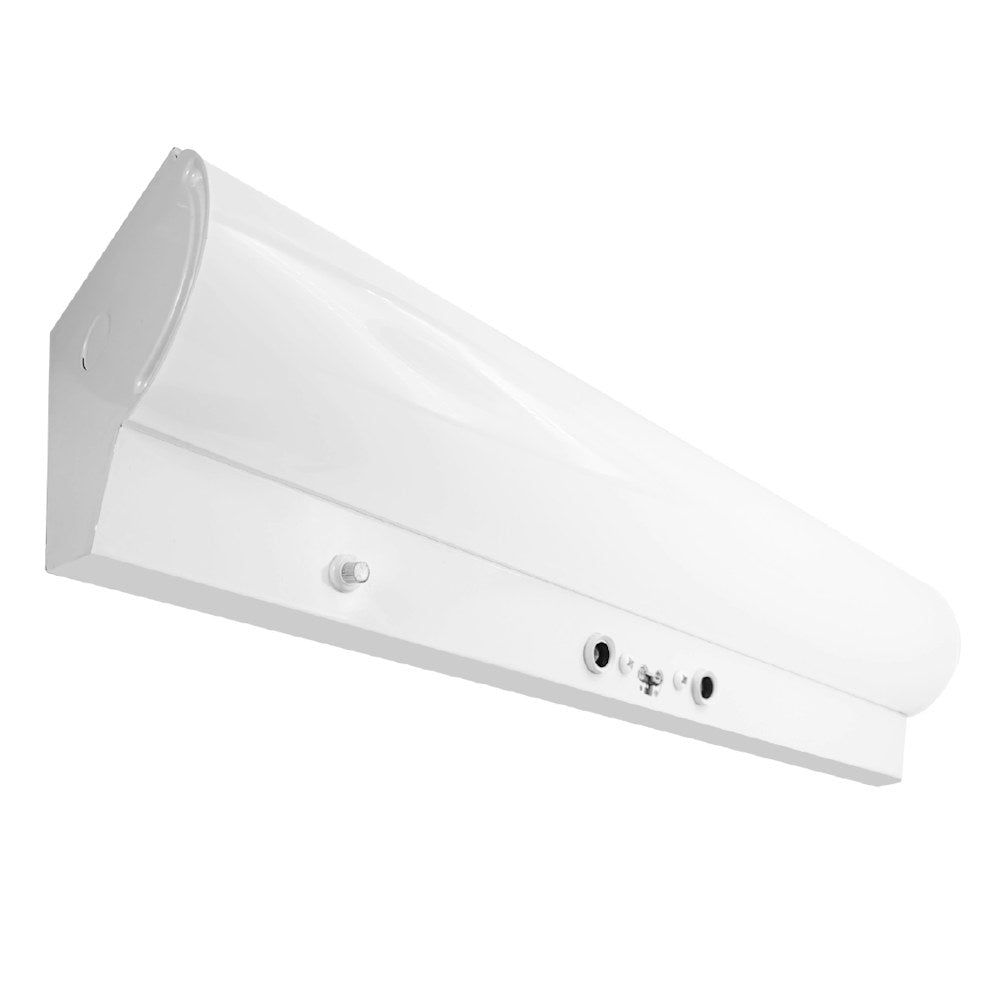

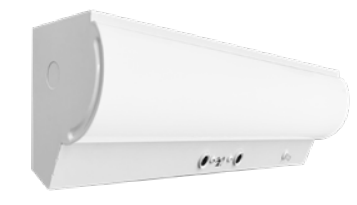

EnVision LED-RSCN-2FT-3P25-5CCT-BMS-EMB – 2' Corner Strip

Product Overview

The EnVision LED-RSCN-2FT-3P25-5CCT-BMS-EMB is a 2-foot corner-mount LED strip intended for utility and storage areas, corridors, back-of-house spaces, and similar commercial locations. It provides field-selectable wattage and color temperature to reduce SKU variety.

One SKU supports three power settings (25/20/15W) with corresponding lumen outputs up to 3250 lm, five CCT choices (3000K–6500K), 0–10V dimming compatibility, a 130° beam angle, white finish, ETL and DLC listings, and a 5-year warranty.

Key Features

• Field-selectable wattage: 25W / 20W / 15W set at install
• Field-selectable CCT: five settings from 3000K to 6500K
• Lumen outputs: 3250 / 2600 / 1850 (dependent on wattage selection)
• Universal input: 120–277V
• Dimming: 0–10V analog dimming
• Beam angle: 130°
• Color rendering: CRI > 80
• Rated for Damp Locations; ETL and DLC listed; 5-year warranty

Function and recommended applications

This 2' corner strip is intended for general commercial illumination where a low-profile corner-mounted fixture is suitable. Typical uses include utility and storage rooms, corridors, back-of-house areas, and similar commercial spaces.

• Designed for corner mounting to illuminate along ceiling-to-wall junctions
• Suitable for general-area lighting rather than specialized task or accent lighting

Performance and output options

The fixture offers three field-selectable power levels with corresponding lumen outputs so a single SKU can cover multiple light-level requirements.

• Selectable wattages: 25W, 20W, 15W
• Lumen outputs: 3250 lm (25W), 2600 lm (20W), 1850 lm (15W)
• Beam angle: 130° for wide distribution
• Color rendering: CRI > 80

Electrical and controls

The LED-RSCN-2FT accepts 120–277V input and supports 0–10V analog dimming. Wattage and CCT settings are adjusted at the fixture prior to final installation.

• Input voltage: 120–277V
• Dimming: 0–10V
• Field-selectable settings: wattage and CCT adjusted on fixture before mounting

Installation and mounting notes

Set the desired wattage and color temperature on the fixture before final mounting. Confirm the mounting surface and run length are appropriate for a 2' corner strip and that the installation environment is compatible with a damp-rated fixture.

• Set wattage and CCT switches prior to final mounting
• Confirm mounting surface and run length before ordering
• Packaged 4 per box for project purchasing

Certifications, ratings, and warranty

The product is listed by ETL and DLC and is rated for Damp Locations. The fixture is backed by a 5-year warranty.

• Listings: ETL, DLC
• Environmental rating: Damp Location
• Warranty: 5 years

Before You Order

Verify the model number, required quantity, and that a 2' corner strip suits your mounting surface and run length.

• Set desired wattage and CCT switches on the fixture before final mounting
• If rebate eligibility is needed, confirm DLC program qualifications for this model with the rebate authority

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RSCN-2FT-3P25-5CCT-BMS-EMB – 2' Corner Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
