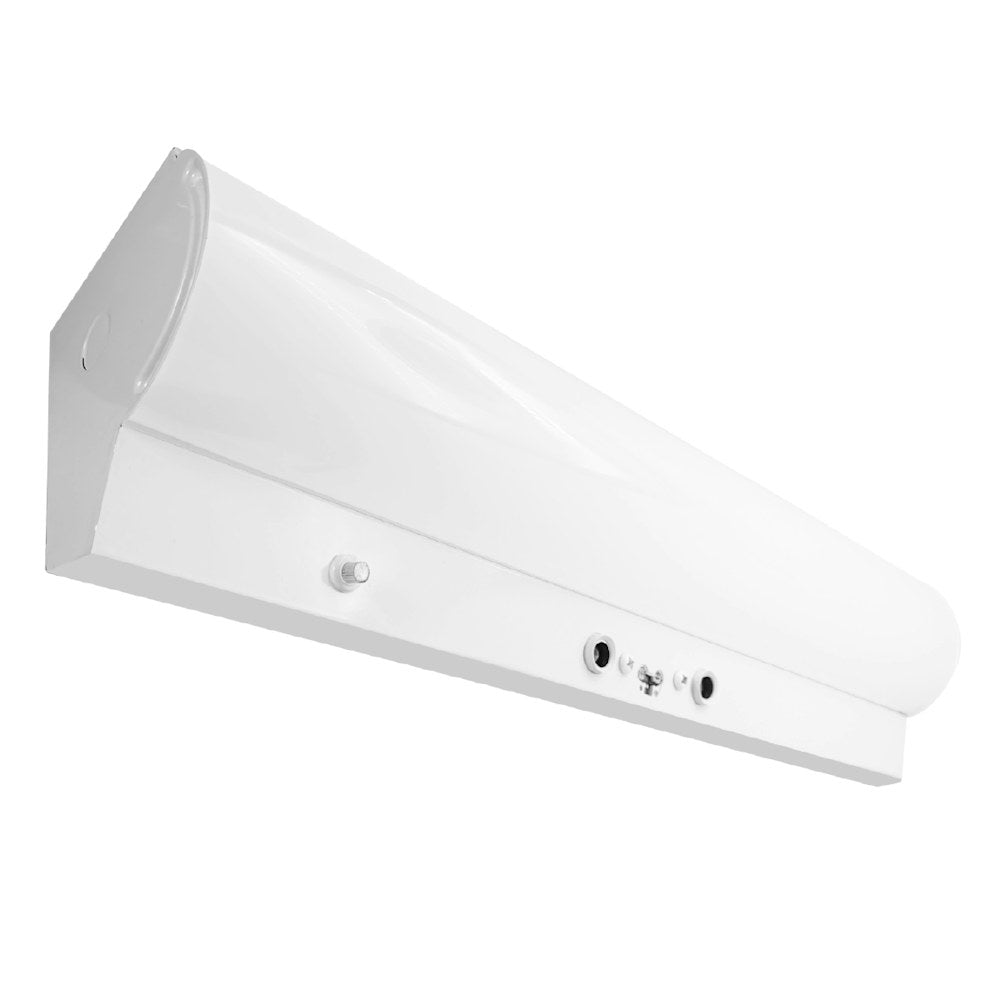

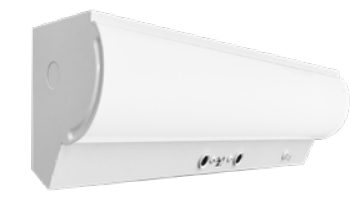

EnVision LED-RSCN-2FT-3P25-5CCT-BMS – 2' Corner Strip

Product Overview

The EnVision LED-RSCN-2FT-3P25-5CCT-BMS is a 2-foot corner strip LED fixture with field-selectable wattage (25/20/15W) and five CCT settings (3000K–6500K). It operates on universal 120–277V and delivers up to 3250 lumens at the highest output.

The fixture offers 0–10V dimming, a 130° beam angle, CRI greater than 80, a white finish, and is listed by ETL and DLC with a 5-year warranty. It is rated for damp locations.

Key Features

• Field-selectable wattage: 25W / 20W / 15W
• Field-selectable CCT: 3000K, 3500K, 4000K, 5000K, 6500K
• Lumen outputs: 3250 / 2600 / 1850 (corresponding to 25/20/15W)
• Universal 120–277V input and 0–10V dimming
• 130° beam angle and CRI > 80
• Damp location rated, white finish, ETL and DLC listed, 5-year warranty
• Packaged 4 per box

What this fixture does

A low-profile 2' corner strip intended to provide general-area illumination where corner-mounted fixtures are preferred. Field-selectable wattage and CCT allow one SKU to serve multiple needs on a job.

• Intended for general commercial spaces plus stairwells, garages, utility and storage rooms.
• White finish for a neutral appearance.

Performance and output

Three field-selectable power settings and five CCT choices let you adjust delivered light level and color tone to the application.

• Wattage options: 25W, 20W, 15W (set at install).
• Lumen outputs: 3250 lm (25W), 2600 lm (20W), 1850 lm (15W).
• Beam angle: 130° for wide distribution.
• Color rendering: CRI > 80.

Electrical and dimming

Standard universal input and low-voltage dimming support common commercial wiring and control schemes.

• Input voltage: 120–277V.
• Dimming: 0–10V control.

Installation and configuration

Configure wattage and CCT on the fixture before final mounting and ensure the mounting location is compatible with a damp-rated product.

• Field-selectable switches for wattage and CCT; set before final installation.
• Confirm fixture length and mounting surface are suitable for 2' corner fixtures.
• Damp location rating: not for direct exposure to water.

Certifications and warranty

Listings and warranty information help with commercial specification and procurement.

• ETL and DLC listed.
• Manufacturer warranty: 5 years.

Before You Order

Verify model number, required quantity and that a 2' corner fixture is appropriate for your mounting and run length.

• Set wattage and CCT switches on the fixture prior to final mounting.
• Confirm installation location is compatible with a damp-location rated fixture.
• If rebate qualification is needed, check current DLC program details with your utility.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RSCN-2FT-3P25-5CCT-BMS – 2' Corner Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
