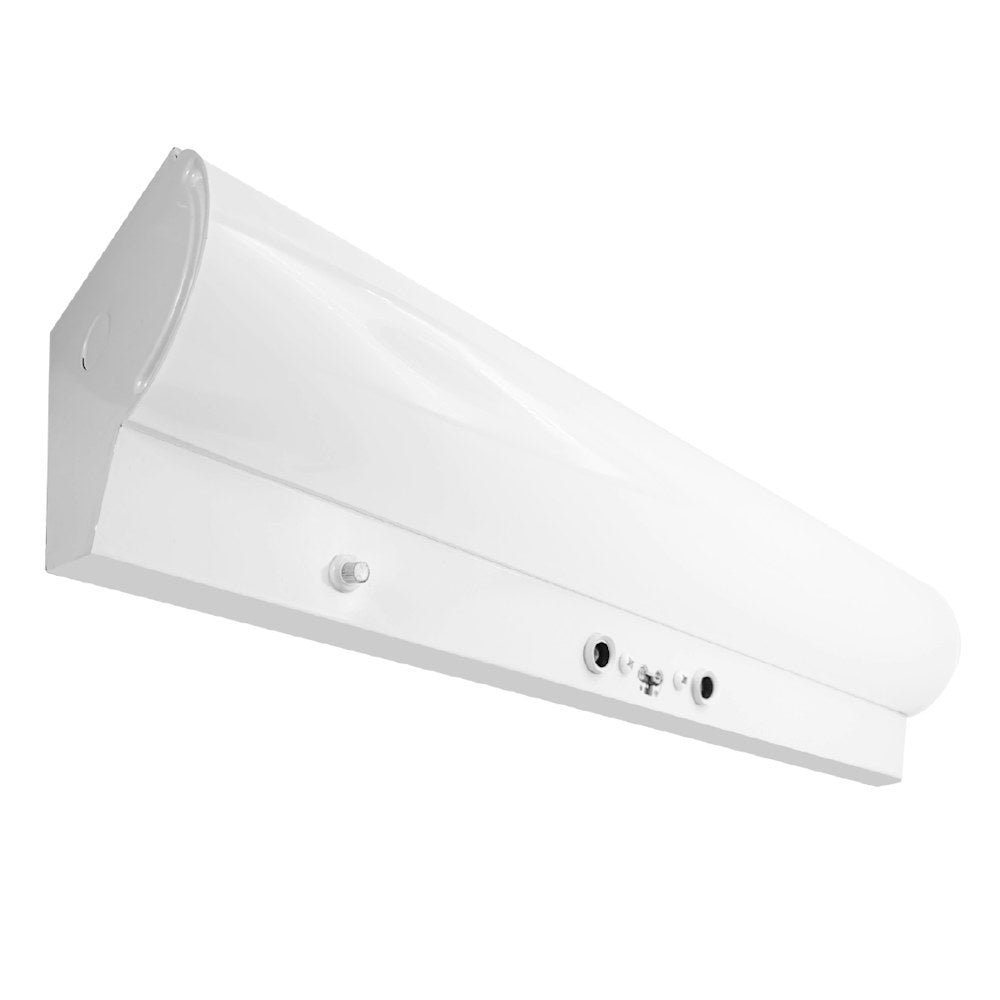

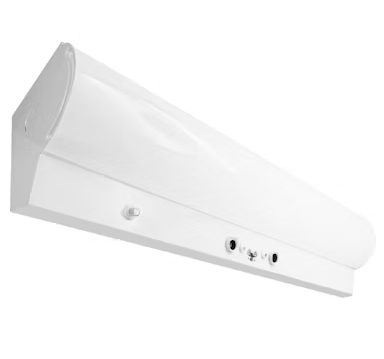

EnVision LED-RSCN-2FT-3P25-5CCT – 2' Corner Strip

Product Overview

The EnVision LED-RSCN-2FT-3P25-5CCT is a 2-foot corner strip light with selectable wattage and five selectable color temperatures. It operates on 120-277V and provides up to 3250 lumens, depending on the selected wattage.

This white-finish fixture is rated for damp locations and is ETL/DLC listed. Its stated applications include corridors, back-of-house areas, general commercial spaces, stairwells and garages.

Key Features

• Selectable 15W, 20W or 25W output, with corresponding lumen outputs of 1850, 2600 or 3250.
• Five selectable CCT settings across a 3000K–6500K range.
• 0-10V dimming and a 130° beam angle.
• Damp-location rating, white finish, ETL/DLC listing and a 5-year warranty.
• Packaged four units per box.

Selectable Wattage and Color Temperature

The LED-RSCN-2FT-3P25-5CCT allows wattage and CCT selection at the fixture. Choose from 15W, 20W or 25W, producing 1850, 2600 or 3250 lumens respectively. The five CCT settings span 3000K to 6500K.

Dimming and Beam Coverage

This strip light supports 0-10V dimming and has a 130° beam angle. Its specified color rendering is CRI greater than 80.

Applications and Damp-Location Rating

Stated applications for the EnVision 2-foot corner strip include corridors, back-of-house areas, general commercial spaces, stairwells and garages. The fixture is rated for damp locations.

Before You Order

Confirm that the 2-foot fixture length and mounting surface suit the intended run. Set the wattage and CCT switches before final mounting, and verify that the location is suitable for a damp-rated fixture.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RSCN-2FT-3P25-5CCT – 2' Corner Strip. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
