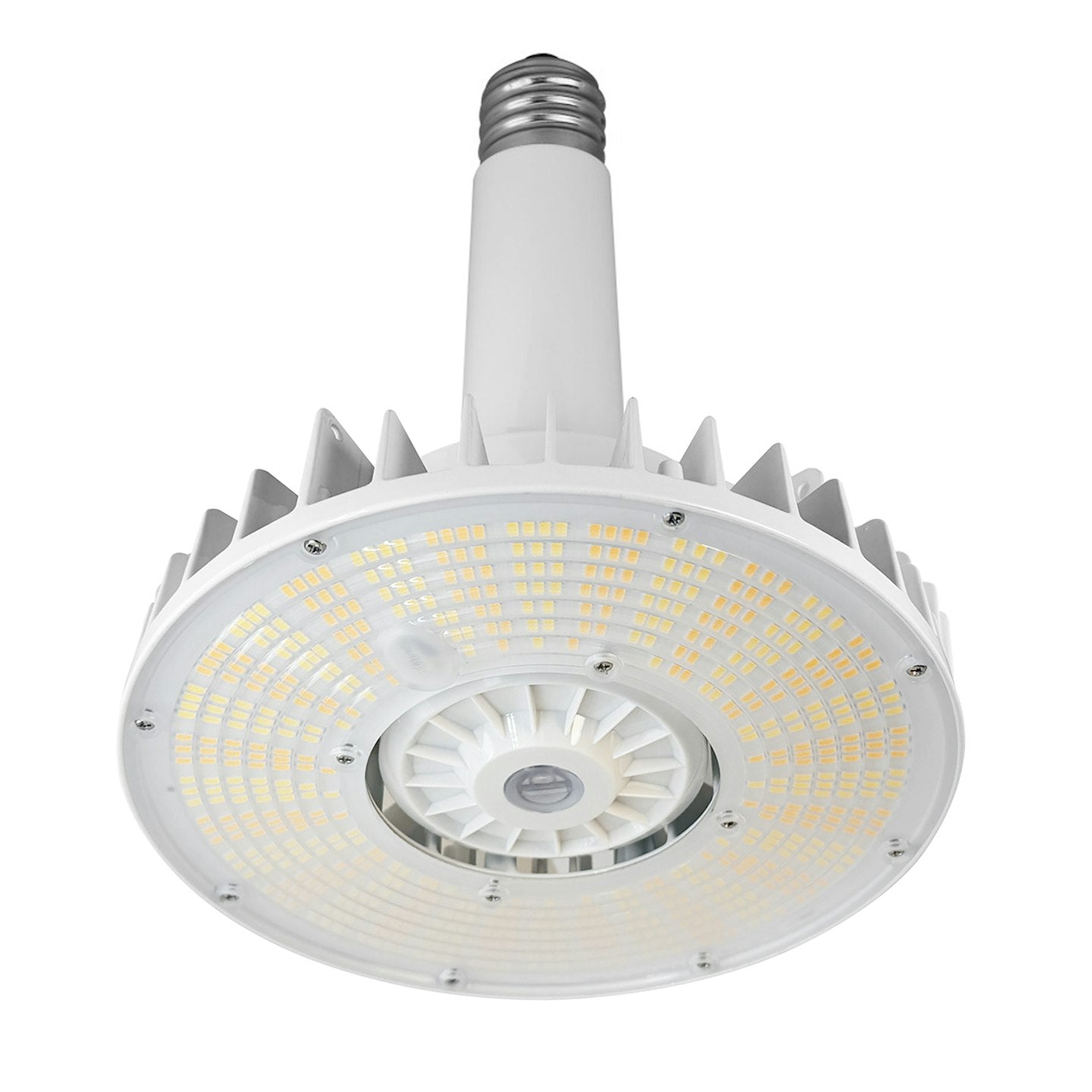

EnVision LED-RHBL-3P160-TRI-EX39 – High Bay Replacement Lamp 3CCT + 3 Power Select

Product Overview

The EnVision LED-RHBL-3P160-TRI-EX39 is a field-selectable high bay replacement lamp offering three power levels (160/140/120W) and three color temperatures (3000K, 4000K, 5000K). It operates on 120–277V and delivers up to 25,600 lumens for high-ceiling commercial and industrial spaces.

Designed for straightforward installation and on-site configuration, this clear-finish high bay provides a 100° beam angle, CRI >80, IP64 damp-location rating, and UL/DLC listings.

Key Features

• Selectable wattage: 160W, 140W, 120W (set at install)
• Selectable CCT: 3000K / 4000K / 5000K (field-selectable)
• Lumen outputs: 25,600 / 22,400 / 19,200 (corresponding to 160/140/120W)
• Input voltage: 120–277V
• Beam angle: 100° for even area coverage
• Color rendering index: CRI >80
• Environmental rating: IP64 (damp location)
• Certifications: UL and DLC listed

What this lamp is for

The LED-RHBL-3P160-TRI-EX39 is built as a replacement high bay lamp for commercial and industrial high-ceiling environments. It is suitable for gymnasiums, big-box retail, warehouses, distribution centers, and other large indoor spaces where high lumen output and simple on-site configuration are priorities.

• Designed to replace traditional HID or older LED high bays
• Intended for high-ceiling area illumination and general-purpose lighting schemes

Performance and output

This model provides three factory-settable power levels with corresponding lumen outputs to match different target illumination levels without requiring multiple SKUs.

• Power options (set at install): 160W / 140W / 120W
• Lumen output by setting: 25,600 lm / 22,400 lm / 19,200 lm
• Beam angle: 100° for broad, even coverage
• Color rendering: CRI >80

Field-selectable color and wattage

CCT and wattage are selected on the fixture during installation. Choose the desired color temperature and power level before final mounting to achieve the required visual effect and light levels.

• CCT options: 3000K, 4000K, 5000K (field-selectable)
• Set wattage and CCT using onboard switches prior to final installation

Electrical, ratings, and compliance

The LED-RHBL-3P160-TRI-EX39 runs on a wide 120–277V input and carries industry certifications suitable for many commercial procurement and rebate programs.

• Input voltage: 120–277V
• IP rating: IP64 (damp location)
• Certifications: UL listed and DLC listed (verify program QPL for rebate eligibility)

Installation and practical notes

Plan mounting and photometric requirements before ordering. Set the fixture's wattage and CCT switches during installation. Confirm the installation environment matches the fixture's damp-location rating.

• Packaged quantity: 4 per box
• Finish: Clear
• Confirm mounting height and required foot-candles for your space before purchase

Before You Order

Confirm the model number and quantity required before ordering. Set the desired wattage and CCT on the fixture during installation. Verify that a damp-location (IP64) rating meets your site requirements and that your planned mounting height and layout will achieve required foot-candle levels.

• Verify utility rebate eligibility against your program's current DLC QPL.
• Confirm the installation environment matches a damp-rated fixture (IP64).
• Ensure installers set both wattage and CCT switches before final mounting.
