EnVision LED-RDL-JBX-4-11W-5CCT-WH-SM – 4" RDL-Line
Description
Product Overview

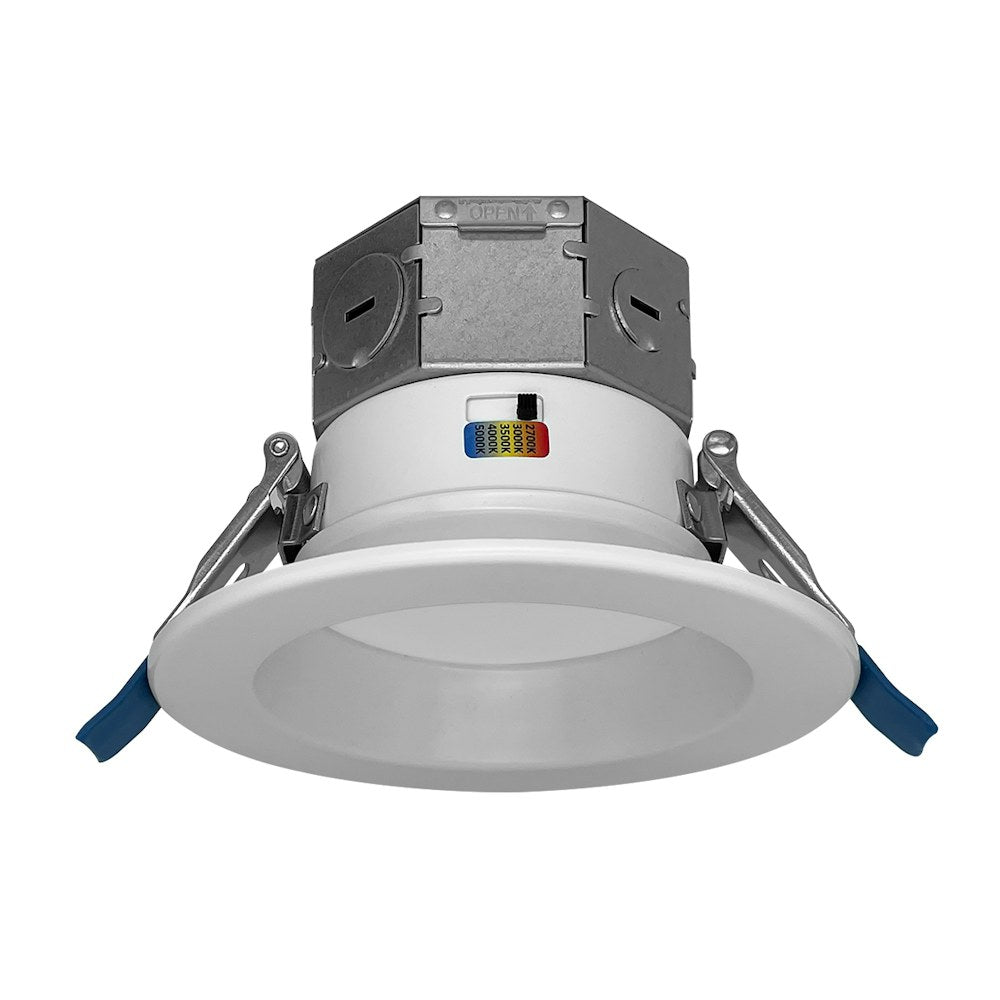

The EnVision LED-RDL-JBX-4-11W-5CCT-WH-SM is a 4" canless J‑Box recessed downlight that delivers 11W and 750 lumens with five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K).
It features a metal housing, frosted non‑yellowing lens, a wide 100° beam, CRI >90 (R9 >50), integrated dimmable driver with Select‑n‑Switch CCT control, and is rated for Wet Locations.
Key Features
- 11W power; nominal output 750 lumens
- Selectable 5‑CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Select‑n‑Switch)
- 120V with Triac/ELV dimming capability (down to 5% per manufacturer data)
- High color quality: CRI >90 with R9 >50; 3‑step MacAdam ellipses
- Wet Location rated; ETL Listed (USA & Canada), ENERGY STAR certified, CA Title 24 JA8‑2022 listed
- 100° beam angle; white smooth finish with frosted PC lens
- Canless SnapTrim J‑Box mounting with spring clips; removable from below ceiling
- Built‑in 2.5 kV surge protection, flicker‑free driver; 5‑year limited warranty
What this fixture does
This 4" canless J‑Box downlight provides general recessed illumination with a wide, even beam through a frosted non‑yellowing lens. It is intended for use where a canless, low-profile recessed solution is desired.
- Intended for general recessed lighting applications in residential and commercial environments such as offices, multifamily, retail, hospitality, healthcare and education
- Can be installed in remodel or new construction using the integrated J‑box and available rough‑in or new‑construction plates
Light output & color options
The fixture produces approximately 750 lumens at 11W and provides five selectable CCT settings via the integrated Select‑n‑Switch feature.
- Nominal output: 750 lm
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K (set during installation)
- Color rendering: CRI >90 with R9 >50; 3‑step MacAdam ellipses
- Beam angle: 100° for wide-area illumination
Electrical, dimming & driver features
The integrated driver is rated for 120V input and includes dimming and protection features.
- Voltage: 120V
- Dimming: Triac/ELV dimmable (manufacturer indicates down to 5%)
- Built‑in 2.5 kV surge protector and flicker‑free operation
Mounting and installation notes
This model uses a SnapTrim canless design with spring clips and an integrated J‑box. It is not designed to be installed inside an existing recessed can.
- Canless J‑Box mounting with spring clips—no traditional can required
- 4" model cutout dimension: 4‑1/4"
- Fits ceiling thicknesses from 1/2" to 1.5"; pre‑wired junction box with 3 in / 3 out
- Unit can be removed from below the ceiling for service
Certifications and warranty
The fixture carries common regulatory listings and a manufacturer limited warranty suitable for specification.
- ETL Listed for USA & Canada
- ENERGY STAR certified; CA Title 24 JA8‑2022 CEC listed
- IC rated and meets ASTM‑E283 air‑tight criteria
- 5‑year limited warranty
Before You Order
Confirm model number, required quantity, and which trims or accessories you need before ordering.
- This fixture is canless and does not fit into an existing recessed can—use the listed 4‑1/4" cutout or compatible rough‑in/new‑construction plates.
- Trims, rough‑in plates and emergency battery backup units are sold separately; choose accessories as required for your installation.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RDL-JBX-4-11W-5CCT-WH-SM – 4" RDL-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| SKU | LED-RDL-JBX-4-11W-5CCT-WH-SM |
| Type | LED Downlight (Canless J‑Box) |
| Size | 4" |
| Wattage | 11W |
| Lumens | 750 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| Voltage | 120V |
| Dimming | Triac/ELV dimmable (to 5% per manufacturer) |
| CRI | >90 (R9 >50) |
| Beam Angle | 100° |
| Finish | White Smooth |
| Lens | Frosted PC, non‑yellowing |
| Operating Temperature | -40° to 114° F |
| Rated Life | 50,000 hours |
| Surge Protection | Built‑in 2.5 kV |
| Certifications | ETL, ENERGY STAR, JA8‑2022 |
| IP / Environmental Rating | Wet Location rated; IC rated; Air‑Tight (ASTM‑E283) |
| Warranty | 5‑year limited |
| UPC | 819715021206 |
| DLC ID | 2470762 |
| Box Quantity | 24 |
