EnVision LED-RDL-EX-4-3P12-5CCT-WH-SM – RDL-Line

Product Overview

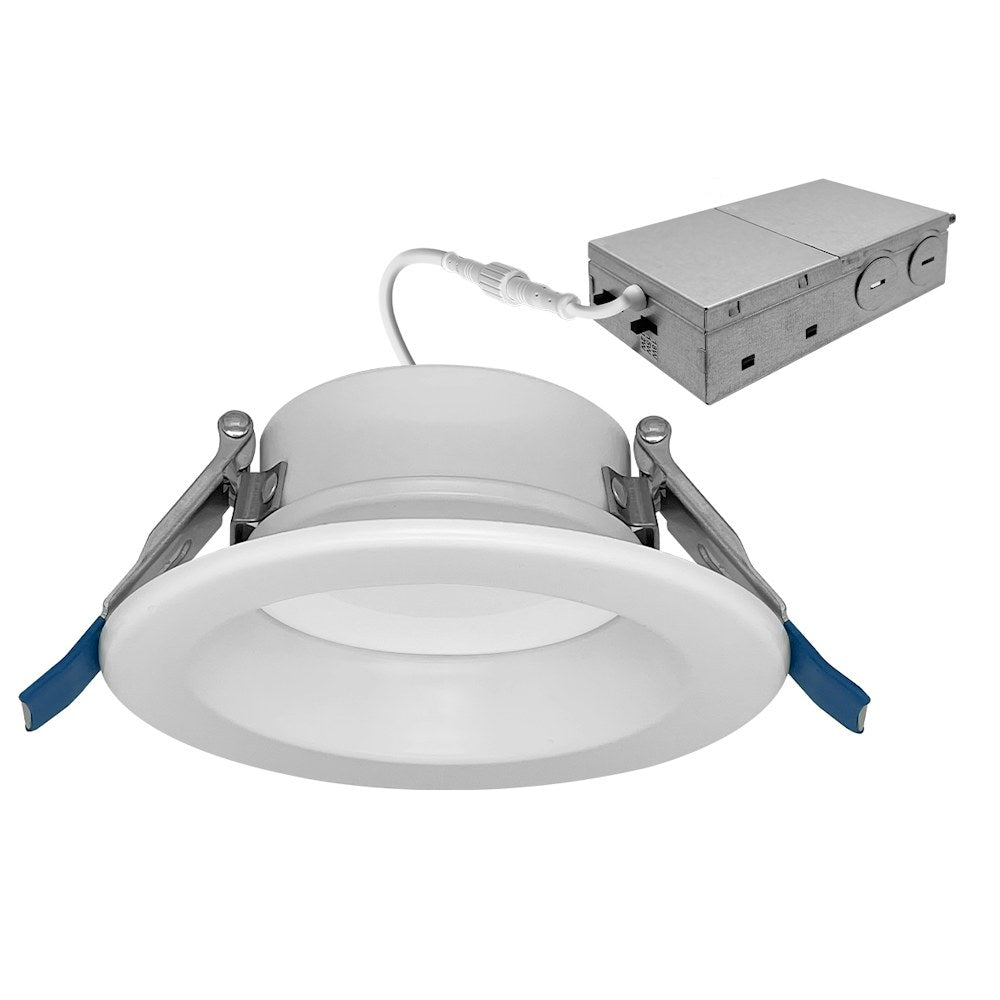

The EnVision LED-RDL-EX-4-3P12-5CCT-WH-SM is a 4" canless recessed downlight with Select-n-Switch technology offering five color temperatures and three power settings.

It provides selectable outputs of 8/10/12W (560/700/960 lm), CRI >90 with R9 >50, a 100° beam angle, and is designed for remodel and new-construction installs using an external J-box.

Key Features

• Selectable 5‑CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Three power settings: 8W / 10W / 12W (560 / 700 / 960 lm)
• High color rendering: CRI >90 with R9 >50 (SMD 2835)
• 120V input; Triac/ELV dimmable
• Wet location rated with frosted, non‑yellowing polycarbonate lens and 100° beam
• ETL Listed (US/CA), ENERGY STAR certified, CA Title 24 JA8 listed; 5‑year limited warranty
• Canless SnapTrim design with external J‑box; remote J‑box can be mounted up to 12' away

What this fixture does

Direct answer: The LED-RDL-EX-4-3P12-5CCT-WH-SM is a 4" canless recessed downlight for general recessed lighting in residential, multifamily and commercial interiors.

It uses Select-n-Switch technology so installers can set one of five CCTs and one of three lumen/wattage outputs on the fixture.

• Applications: general recessed lighting, residential & multifamily, office, retail, hospitality, healthcare, education
• Form factor: 4" canless downlight with white smooth trim and frosted PC lens

Output, color and optical performance

Direct answer: The fixture provides three selectable lumen packages and five selectable CCTs with a wide 100° beam for general illumination.

Color quality is specified as CRI >90 with R9 >50 using SMD 2835 LEDs and a frosted, non‑yellowing lens for even light distribution.

• Wattage / Lumens (selectable): 8W = 560 lm, 10W = 700 lm, 12W = 960 lm
• CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Beam angle: 100°
• Average life: L70 at 50,000 hours (manufacturer specification)

Electrical and dimming requirements

Direct answer: This model is rated for 120V operation and is Triac/ELV dimmable. The driver is described as flicker‑free and includes a built‑in 2.5 kV surge protector.

Manufacturer documentation lists tested Lutron and Leviton dimmers; other dimmers may be compatible but have not been tested.

• Voltage: 120V
• Dimming: Triac/ELV dimmable (manufacturer indicates dimming performance to approximately 5% with tested dimmers)
• Surge protection: built‑in 2.5 kV surge protector
• Flicker: specified as flicker‑free by manufacturer
• Optional emergency backup: field‑installable EMB accessories available (ordered separately)

Mounting, housing and accessories

Direct answer: The RDL-Line is a canless SnapTrim fixture that installs with spring clips into 1/2" to 1.5" thick ceilings and includes an external J‑box; a remote J‑box can be mounted up to 12' away.

The fixture does not fit into a recessed can and can be removed from below the ceiling for service.

• Cut‑out (manufacturer): 4" model cut‑out listed as 4-1/4"
• Mounting: snap spring/tension clips; no housing needed for remodel applications
• Accessories (sold separately): trims (smooth and baffle), new construction and rough‑in plates, extension cables, EMB modules (15W/25W) compatible with specified loads

Listings and warranty

Direct answer: This fixture is ETL Listed for US/CA, ENERGY STAR certified, CA Title 24 JA8 listed, and carries a 5‑year limited warranty from the manufacturer.

Additional compliance information from the manufacturer includes FCC Part 15, IC rating and ASTM‑E283 air‑tight designation.

• Certifications: ETL Listed (US/CA), ENERGY STAR, CA Title 24 JA8
• Other: FCC Part 15 compliance, IC rated, ASTM‑E283 air‑tight
• Warranty: 5‑year limited warranty

Before You Order

Confirm model number, required CCT and lumen setting before ordering. Trims, emergency backup modules and rough‑in/new‑construction plates are sold separately.

• This fixture is canless and does not fit into a standard recessed can—use the external J‑box and SnapTrim mounting.
• If emergency operation is required, order the compatible EMB accessory (15W or 25W) appropriate for your load.
• For dimming, refer to the manufacturer's tested dimmer list or contact us for compatibility guidance.
