Description

Product Overview

The EnVision LED-RDL-5/6-3P18-5CCT-UNV-0/10V is a 5/6-inch round LED retrofit downlight with selectable power and color temperature. It offers 10W, 14W or 18W settings, corresponding to 800, 1,200 or 1,500 lumens, and five selectable color temperatures from 2700K to 5000K.

The downlight supports 120–277V input and 0-10V dimming. It has a white smooth finish, a 100° beam angle and a wet-location rating. Manufacturer-listed applications include residential and multifamily spaces, offices, education, healthcare, retail and hospitality.

Key Features

  • Selectable output: 10W/14W/18W with 800/1,200/1,500 lumens
  • Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K
  • 120–277V input with 0-10V dimming down to 5%
  • 100° beam angle and CRI greater than 90
  • Wet-location rated; white smooth finish
  • ETL listed for the USA and Canada, Energy Star certified, and JA8-2022 CEC listed

Select Light Output and Color Temperature

This EnVision downlight offers three power settings and five color temperatures. The available power and lumen combinations are 10W at 800 lumens, 14W at 1,200 lumens, or 18W at 1,500 lumens.

Color temperature settings are 2700K, 3000K, 3500K, 4000K and 5000K. The fixture has a 100° beam angle and a CRI greater than 90.

Electrical Input and 0-10V Dimming

The fixture is specified for 120–277V input and 0-10V dimming down to 5%. It includes dimming wires with a quick connect to an EnVision 0-10V can. The manufacturer also specifies a built-in 2.5 kV surge protector and a flicker-free driver.

Retrofit Fit and Installation

The 5/6-inch model's spring clips fit most compatible 5-inch and 6-inch recessed cans. It can also be retrofitted into an existing housing with an E26 socket. The fixture includes an orange LED quick connect and an E26 base adapter.

The manufacturer describes the downlight for remodel and new-construction applications and states that it can be removed from below the ceiling for service or replacement. Check the existing housing and connection configuration for the intended installation.

Applications and Wet-Location Rating

The manufacturer lists general recessed lighting applications in residential and multifamily spaces, offices and meeting rooms, education, healthcare, retail and hospitality. The downlight is wet-location rated.

Construction, Listings and Service Life

The downlight has a white smooth finish, a die-cast aluminum housing and trim, and a frosted acrylic lens described as non-yellowing. The manufacturer specifies an average L70 life of 50,000 hours.

The product is ETL listed for the USA and Canada and Energy Star certified. It is listed as California Title 24 JA8-2022 CEC compliant, IC rated and ASTM-E283 air-tight, and meets LM-79 and LM-80 standards. A five-year limited warranty is specified.

Before You Order

Check that the existing recessed housing and connection configuration are compatible with the 5/6-inch spring clips or E26 adapter.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-RDL-5/6-3P18-5CCT-UNV-0/10V – RDL-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
Model / SKULED-RDL-5/6-3P18-5CCT-UNV-0/10V
Product Type5/6-inch round LED retrofit downlight
Selectable power10W / 14W / 18W
Lumens800 / 1,200 / 1,500 lumens
Selectable CCT2700K / 3000K / 3500K / 4000K / 5000K
Voltage120–277V
Dimming0-10V, down to 5%
CRI>90
Beam Angle100°
FinishWhite smooth
Location RatingWet location
Rated Life50,000 hours average L70
Certifications and ratingsETL listed for USA and Canada; Energy Star certified; California Title 24 JA8-2022 CEC listed; IC rated; ASTM-E283 air-tight
Warranty5-year limited
UPC810143710502

Comments

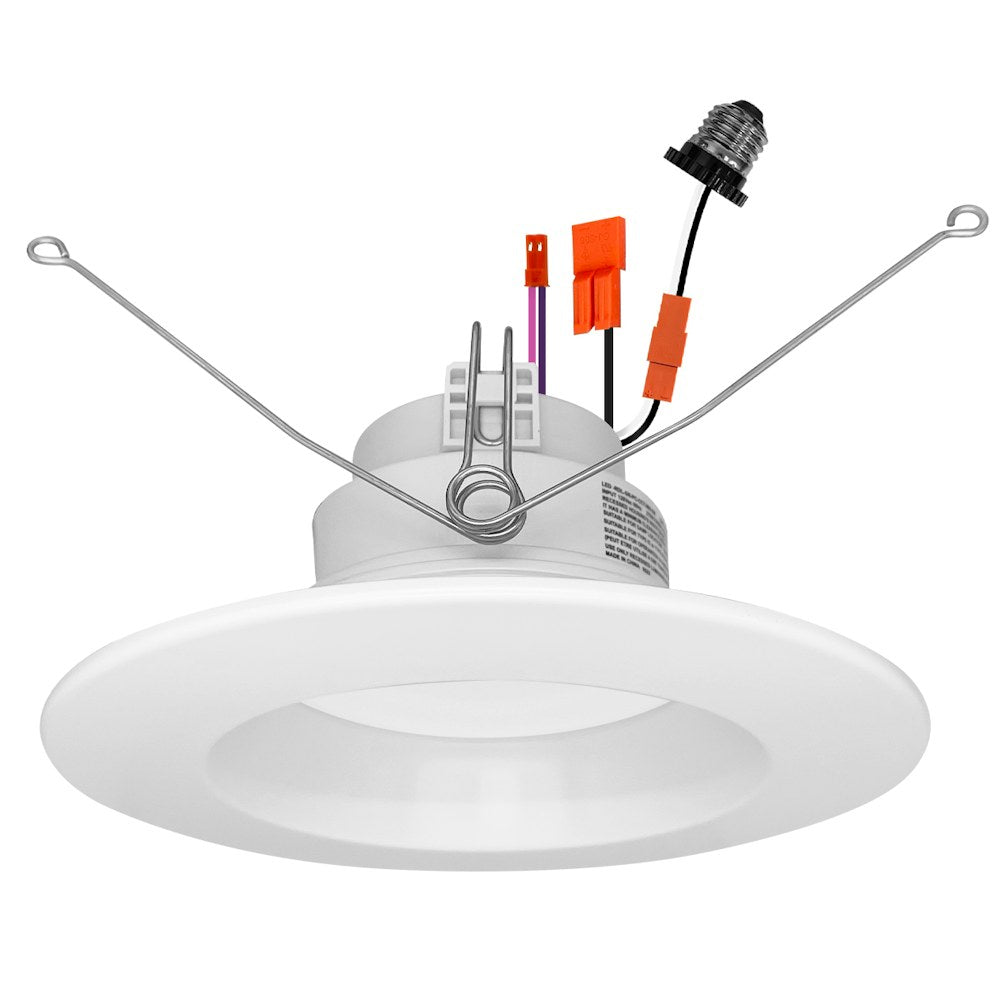

EnVision LED-RDL-5/6-3P18-5CCT-UNV-0/10V LED Downlight
