EnVision LED-MDL-1-ADJ-6W-30K-SQ-WH-12V – Mini-Line

(No Ratings)
SKU: LED-MDL-1-ADJ-6W-30K-SQ-WH-12V
Price: $44.80
Free shipping on orders over $1,500

Description

Product Overview

The EnVision Mini-Line LED-MDL-1-ADJ-6W-30K-SQ-WH-12V is a 1-inch, 6W low-voltage LED downlight with a white square finish. It delivers 500 lumens at 3000K, with a 38° standard beam angle and CRI greater than 90.

This canless Gimbal Series fixture requires a 12V electronic constant-voltage Class 2 driver. It is IP54 wet-location rated.

Key Features

  • 6W output: 500 lumens, 3000K, and CRI greater than 90
  • 1-inch fixture with white square finish and 38° standard beam angle
  • 12V operation; requires a 12V electronic constant-voltage Class 2 driver
  • Triac/ELV dimming; the manufacturer describes the series as dimmable from 5% to 100%
  • IP54 wet-location rated; ETL listed for the USA and Canada

Light Output and Beam

This Mini-Line downlight produces 500 lumens using 6W of power, with a 3000K color temperature and CRI greater than 90. Its listed standard beam angle is 38°.

  • White square finish
  • Clear COB lens
  • Manufacturer-listed 3-step MacAdam ellipses

12V Power and Dimming

The fixture operates at 12V and requires a 12V electronic constant-voltage Class 2 driver. It supports Triac/ELV dimming; the manufacturer describes the series as dimmable from 5% to 100%.

  • The manufacturer lists separate 12V driver options.
  • The manufacturer provides a tested-compatible dimmer list; other dimmers may not have been tested.

Canless Mounting and Applications

The Mini-Line is a canless downlight with spring clips and a remote junction box. It does not fit into a recessed can, and no housing is needed for remodel applications. The specified cutout is 2 inches; tension clips mount in ceilings 1/8 to 1.5 inches thick.

  • Manufacturer-listed applications include accent lighting, displays, cabinets, bars, residential, and multifamily settings.
  • An optional new-construction plate is available separately; the listed plate is specified for round fixtures only.

Ratings and Certifications

This model is IP54 wet-location rated and ETL listed for the USA and Canada. The manufacturer also identifies the series as California Title 24 JA8-2022 CEC listed, IC rated, and ASTM-E283 air-tight.

  • 5-year limited warranty

Before You Order

This fixture requires a 12V electronic constant-voltage Class 2 driver and does not fit into a recessed can.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-MDL-1-ADJ-6W-30K-SQ-WH-12V – Mini-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SeriesMini-Line, Gimbal Series
Model / SKULED-MDL-1-ADJ-6W-30K-SQ-WH-12V
Fixture typeCanless LED downlight
Size1 inch
Wattage6W
Lumens500 lumens
Color Temperature3000K
CRI>90
Voltage12V
Driver Requirement12V electronic constant-voltage Class 2 driver
DimmingTriac/ELV; manufacturer lists 5–100% dimming
Beam Angle38° standard
FinishWhite square
Cutout2 inches
Ceiling thickness for tension clips1/8 to 1.5 inches
IP / Environmental RatingIP54 wet-location rated
CertificationsETL listed for USA and Canada; California Title 24 JA8-2022 CEC listed; IC rated; ASTM-E283 air-tight
Warranty5-year limited warranty
UPC819715027130
Box Quantity18

Comments

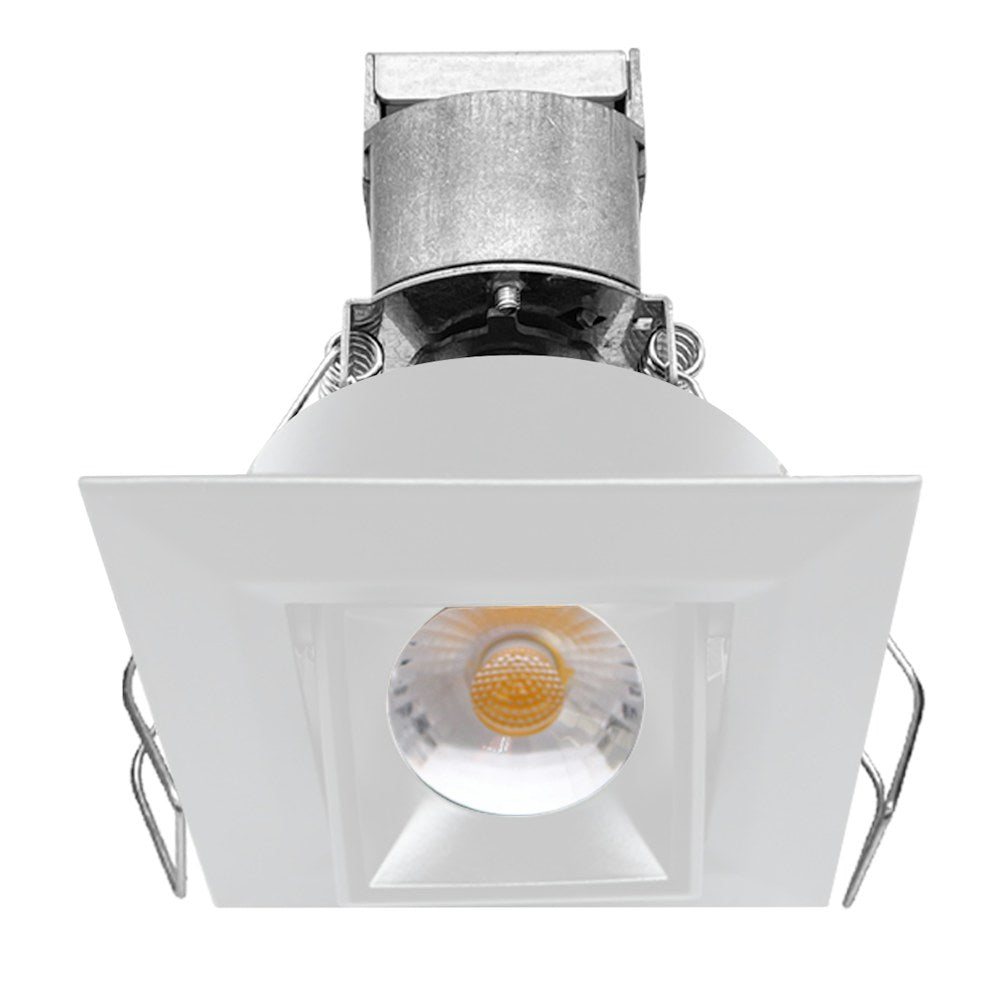

EnVision LED-MDL-1-ADJ-6W-30K-SQ-WH-12V LED Downlight
