EnVision LED-MDL-1-ADJ-6W-30K-SQ-BLK-12V – Mini-Line

(No Ratings)
SKU: LED-MDL-1-ADJ-6W-30K-SQ-BLK-12V
Price: $44.80
Free shipping on orders over $1,500

Description

Product Overview

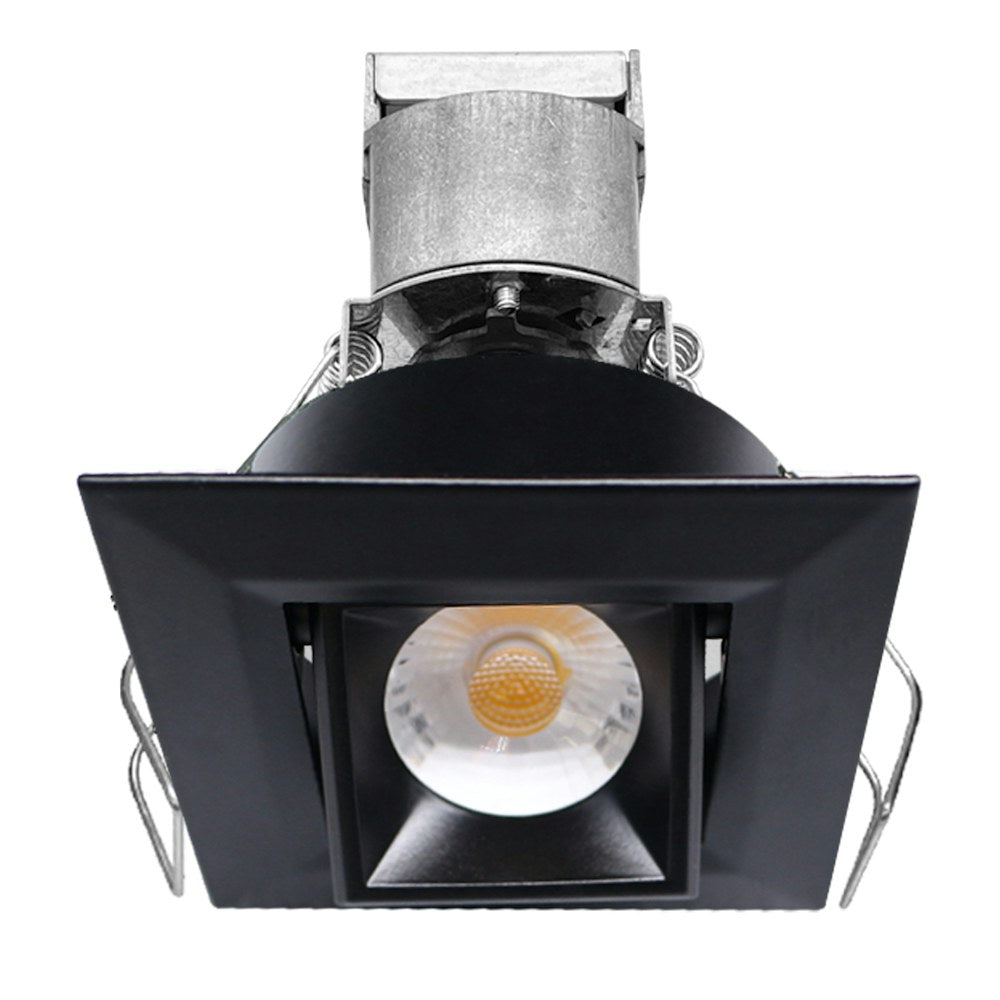

The EnVision LED-MDL-1-ADJ-6W-30K-SQ-BLK-12V is a 1" mini low-voltage adjustable gimbal downlight from EnVision's Mini-Line. It produces 500 lumens at 6W with a 3000K color temperature and a black square trim intended for accent and display lighting.

This ETL-listed and JA8-compliant fixture is IP54 wet-location rated, uses a COB light engine with CRI >90 (R9 >50), and requires a 12V constant-voltage Class 2 driver. The fixture supports dimming and has been tested with select Triac/ELV dimmers when used with compatible drivers.

Key Features

  • 6W power draw, 500 lumens output
  • 3000K color temperature, CRI >90 (R9 >50)
  • 38° standard beam angle (24° field-installable optic available as accessory)
  • 12V low-voltage operation; requires 12V constant-voltage Class 2 driver
  • IP54 wet-location rated, ETL listed and JA8 (Title 24) compliant
  • Adjustable gimbal with metal housing; black square trim
  • Average life (L70): 50,000 hours; 5-year limited warranty

What this fixture does

The LED-MDL-1-ADJ is a compact adjustable gimbal downlight suitable for accent, display and cabinet lighting where a small, directional light source is needed. It delivers about 500 lumens from a 6W LED source at 3000K with high color-rendering performance (CRI >90).

  • Common applications: accent lighting, displays, cabinets, residential and multifamily areas
  • Trim style: black square adjustable gimbal for directional aiming

Light performance and optical options

The fixture ships with a 38° beam angle for general accenting. A 24° field-installable optic is offered as an accessory for a narrower beam. The light engine uses a clear COB lens with R9 >50.

  • Output: 500 lumens at 6W
  • CCT: 3000K; CRI: >90 (R9 >50)
  • Beam: 38° standard; MDL-24° optic available as an accessory
  • Rated average life (L70): 50,000 hours

Voltage, drivers and dimming

This is a low-voltage fixture that requires a 12V electronic constant-voltage Class 2 driver. EnVision lists compatible dimmable 12V drivers (20W, 60W, 150W) — choose driver capacity based on the total connected load.

The fixture supports dimming; Triac/ELV dimmers have been tested with the product in manufacturer documentation when used with recommended drivers. Verify driver and dimmer compatibility for your installation.

  • Required driver: 12V electronic constant-voltage Class 2
  • Manufacturer example drivers: CV-12V-DC-20W-DIM (connect up to 3 fixtures), CV-12V-DC-60W-DIM (up to 9 fixtures), CV-12V-DC-150W-DIM (up to 20 fixtures)
  • Dimming: Triac/ELV compatible when paired with supported drivers and tested dimmers

Mounting, cutout and serviceability

The LED-MDL-1-ADJ is a canless fixture that installs with spring/tension clips into ceiling materials from 1/8" to 1.5" thick, eliminating the need for a recessed can. The required cutout dimension is 2". The fixture can be removed from below the ceiling for service or replacement. A universal new-construction plate is available as an optional accessory.

  • Cutout dimension: 2"
  • Ceiling thickness accommodation: 1/8" to 1.5" using spring/tension clips
  • Does not fit into a recessed can; new construction plate available separately

Listings, ratings and warranty

The fixture is ETL listed for the U.S. and Canada and is listed for California Title 24 JA8. It is IP54 wet-location rated, IC rated, and meets ASTM-E283 air-tight requirements. EnVision provides a 5-year limited warranty.

  • Certifications: ETL listed (US/CA), JA8 (Title 24) compliant
  • Environmental rating: IP54 (wet location), IC rated, ASTM-E283 air-tight
  • Warranty: 5-year limited warranty

Before You Order

This fixture requires a 12V constant-voltage Class 2 driver sized to the number of fixtures on the run and compatible with your chosen dimming method.

  • Verify the 2" cutout and that ceiling thickness is within 1/8"–1.5" for canless installation
  • Choose an appropriate 12V driver (manufacturer examples: CV-12V-DC-20W-DIM, CV-12V-DC-60W-DIM, CV-12V-DC-150W-DIM)
  • If using dimming, confirm compatibility between driver and wall dimmer using the manufacturer's tested dimmer list

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-MDL-1-ADJ-6W-30K-SQ-BLK-12V – Mini-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKULED-MDL-1-ADJ-6W-30K-SQ-BLK-12V
Type1" Mini Low Voltage Adjustable Downlight (Gimbal Series)
Wattage6W
Lumens500 lm
Color Temperature3000K
CRI>90 (R9 >50)
Beam Angle38° standard (24° accessory available)
Voltage12V (requires constant-voltage Class 2 driver)
DimmingTriac/ELV (dimmable when used with compatible driver/dimmer)
IP / Environmental RatingIP54 (wet-location rated); IC rated; ASTM-E283 air-tight
Cutout2"
Size / Trim1"; Black square finish
Operating Temperature-40° to 114° F
Rated Life50,000 hours
Warranty5-year limited warranty
UPC819715027116
CertificationsETL listed (US/CA), JA8 (Title 24)
Box Quantity18
