EnVision LED-MDL-1-ADJ-6W-30K-RD-BZ-12V – Mini-Line

Product Overview

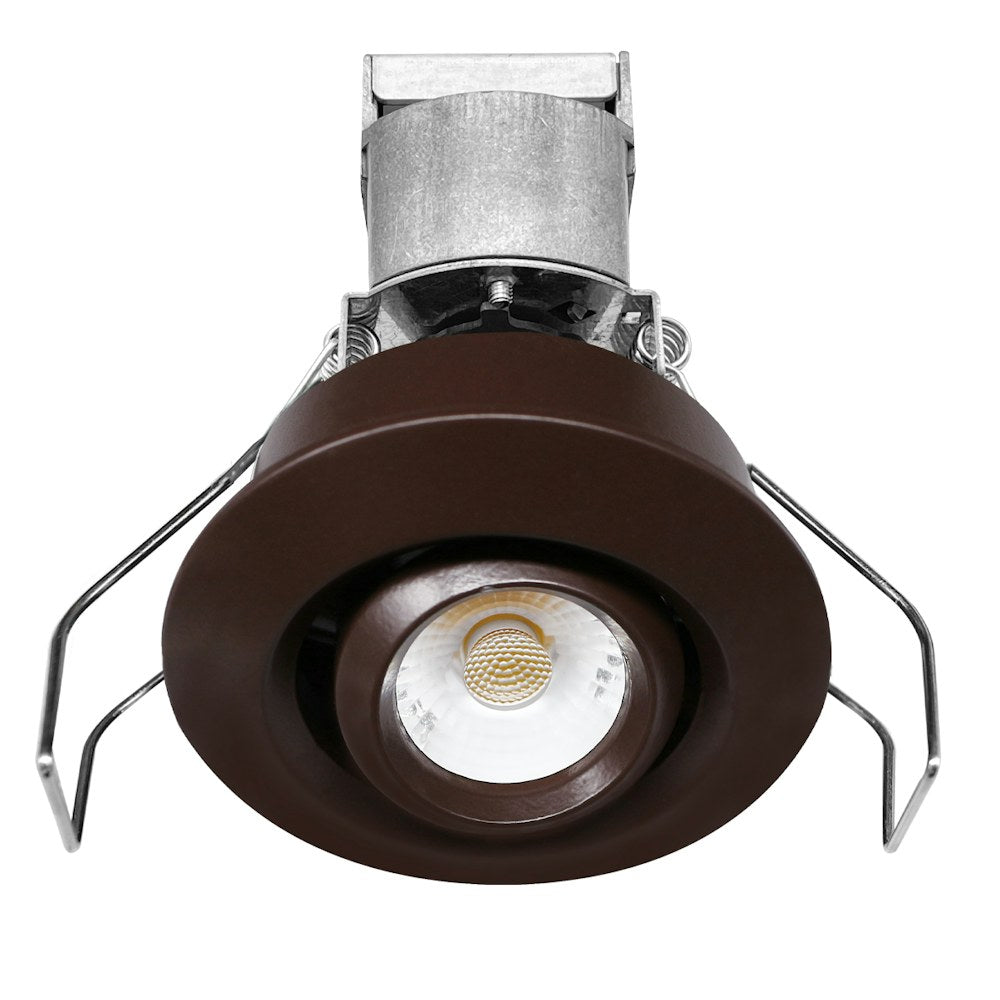

The EnVision LED-MDL-1-ADJ-6W-30K-RD-BZ-12V is a 1" mini low-voltage gimbal downlight that delivers 6W and 500 lumens at 3000K with a bronze round trim.

It is a canless fixture that requires a 12V constant-voltage driver, is ETL listed, JA8 (Title 24) listed, IP54 wet-location rated, and specifies CRI >90 with a standard 38° beam angle.

Key Features

• 6W, 500 lumens, 3000K
• Requires 12V DC constant-voltage Class 2 driver
• Adjustable gimbal with up to 60° adjustment range noted by manufacturer; 38° standard beam (24° accessory optic available)
• High color rendering: CRI >90, R9 >50; 3-step MacAdam ellipses
• IP54 wet-location rating, ETL listed for USA and Canada, CA Title 24 JA8-2022 listed
• Metal housing and trim, L70 = 50,000 hours (manufacturer specification), 5-year limited warranty
• Dimmable down to 5% with compatible dimmer/driver combinations; manufacturer lists tested Triac/ELV dimmers

What this fixture does

The LED-MDL-1-ADJ-6W-30K-RD-BZ-12V is a compact adjustable downlight intended for accent, display, cabinet, bar, residential and multifamily applications where a small, directional low-voltage light source is required.

• 1" mini gimbal form factor with bronze round trim
• Adjustable aiming for targeted accent lighting

Electrical and driver requirements

This fixture operates on 12V DC and requires a 12V electronic constant-voltage Class 2 driver. Select a driver sized to the total fixture load and confirm compatibility between the driver and any dimmer used.

• Nominal input: 12V DC (low-voltage)
• Manufacturer lists CV-12V-DC-20W-DIM, CV-12V-DC-60W-DIM, CV-12V-DC-150W-DIM as driver options
• Dimming: compatible with Triac/ELV dimmers per manufacturer tested list; confirm pairing for multiple fixtures

Mounting and installation notes

The LED-MDL-1 is a canless fixture designed for remodel and new-construction applications using spring clips that secure into ceiling thicknesses from 1/8" to 1.5". It does not fit into a standard recessed can and can be serviced or replaced from below the ceiling.

• Cut-out dimension: 2"
• SnapTrim canless design with spring clips and remote junction box
• Optional universal new-construction plate available (sold separately)

Optical and performance details

The fixture provides 500 lumens at 6W with a standard 38° beam and an adjustable gimbal. Color is specified at 3000K with CRI >90 and R9 >50. The manufacturer specifies a clear COB lens and an average life (L70) of 50,000 hours.

• Output: 6W, 500 lm
• CCT: 3000K
• CRI: >90; R9 >50; 3-step MacAdam ellipses
• Beam: 38° standard; 24° field-installable optic available as accessory

Certifications and warranty

The LED-MDL-1-ADJ model is ETL listed for the U.S. and Canada, CA Title 24 JA8-2022 listed, IC rated and ASTM-E283 air-tight. It is IP54 wet-location rated and carries a 5-year limited warranty from the manufacturer.

• ETL Listed (USA & Canada)
• CA Title 24 JA8-2022 listed
• IP54 wet-location rating
• IC rated, ASTM-E283 air-tight
• 5-year limited warranty

Before You Order

Verify model number, required quantity, driver selection, and dimmer compatibility before ordering.

• Requires a 12V constant-voltage Class 2 driver sized for the total fixture load.
• This fixture does not fit into a recessed can—use canless/snaptrim installation or the optional new-construction plate (sold separately).
• If dimming, confirm the dimmer is compatible with the chosen 12V driver and the manufacturer's tested dimmers if applicable.
